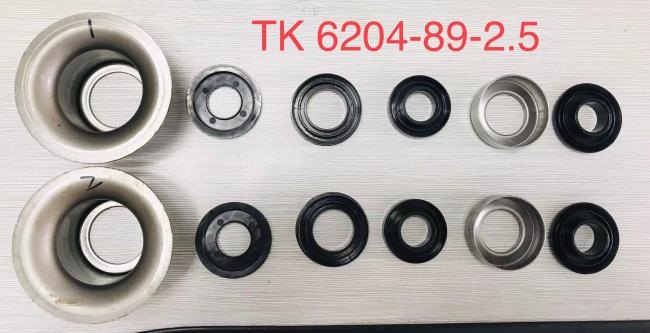

Bearing Housings and Seals for 6204 Bearing and 89MM OD Pipe

Description: Bearing Housings and Seals for 6204 Bearing with 89 mm OD Pipe

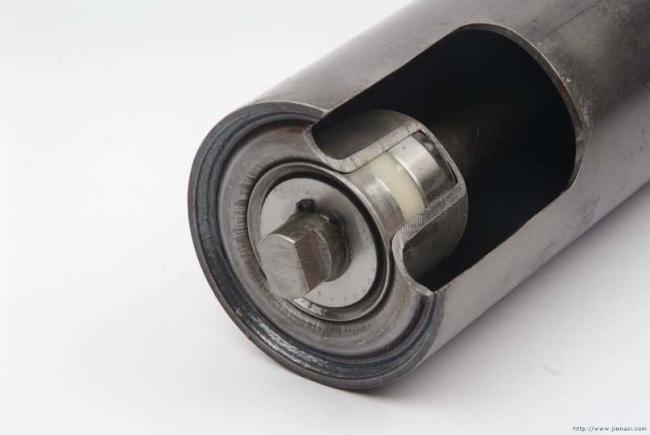

This assembly is engineered to support and protect 6204 deep groove ball bearings within systems utilizing 89 mm outer diameter piping. It includes a custom housing, sealing system, and mounting features to ensure durability, alignment, and resistance to contaminants.

Key Specifications:

• Bearing Type: 6204 (ID 20 mm, OD 47 mm, Width 14 mm)

• Pipe Compatibility:

  • Outer Diameter: 89 mm (commonly used in heavy-duty and industrial pipe systems)

  • Wall Thickness: Designed to suit standard pipe schedules (customizable if needed)

• Housing Material:

  • Options: Cast iron, steel, or aluminum (corrosion-resistant versions available)

  • Mounting: Weld-on or clamp-on configuration for easy installation on cylindrical pipe

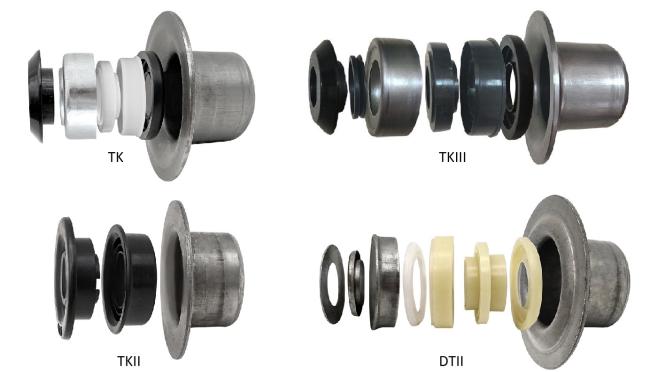

• Seal Type:

  • Dual-lip rubber seals or labyrinth seals

  • Designed to prevent ingress of dust, dirt, and moisture

  • Temperature rating: -20°C to +120°C (material dependent)

• Mounting Features:

  • Flanged or collar-style depending on use case

  • Grease nipple provisions available for re-lubrication

  • Anti-rotation locking mechanism for high-vibration environments

Applications:

• Conveyor rollers and pulleys

• Agricultural machinery

• Marine and mining equipment
