1500g/M2 Dam Drainage Nonwoven Geotextile Fabric For Retaining Wall 0.9mm
1500g/m2 0.9mm Thickness Nonwoven Geotextile Fabric For Retaining Wall
Quick Detail:
function: filtration, reinforcement and isolation
type: 100-800
thickness: 0.9-5.0mm
Elongation at Break (%): 25-100
Product Description:
The geotextile produced by our company is a new type of construction material for civil engineering stipulated by the state. It is made of filament or short filament fibers, which are laid into nets through different equipment and processes, and then interweaved with different fibers through needling and other processes, so as to make the fabric standardized. This makes the fabric soft, plump, thick and stiff to meet the requirements of different thickness. According to the length of yarn, it can be divided into filament non-woven geotextile and staple non-woven geotextile.
The tensile strength of filament is higher than that of staple. Because the fiber is soft and has a certain tear resistance, at the same time, it has a good function of filtration, water filtration and reinforcement. Specifications range from 100 g/㎡ to 800 g/㎡. The main material is polyester fiber, with superior water permeability, filtration, durability, deformation adaptability and plane drainage capacity.
Technical Parameters:
| No. | item type | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | note | |
| 2 | Thickness(mm ,≧) | 0.9 | 1.3 | 1.7 | 1.9 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 4.1 | 5 | ||
| 3 | Width Deviation (%) | -0.5 | ||||||||||||
| 4 | Breaking Strength (KN/m ≧) | 2.5 | 4.5 | 6.5 | 8 | 9.5 | 11 | 12.5 | 14 | 16 | 19 | 25 | Horizontal & Vertical | |
| 5 | Elongation at Break (%) | 25-100 | ||||||||||||
| 6 | CBR Bursting Strength (KN) | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4 | ||
| 8 | Equivalent Aperture O90 (O95) mm | 0.07-0.2 | ||||||||||||
| 9 | Vertical Permeability (cm/s) | Kx(10-1-10-3) | K=1.0*9.9 | |||||||||||
| 10 | Tear Strength (KN≧ ) | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | Horizontal & Vertical | |
Application:

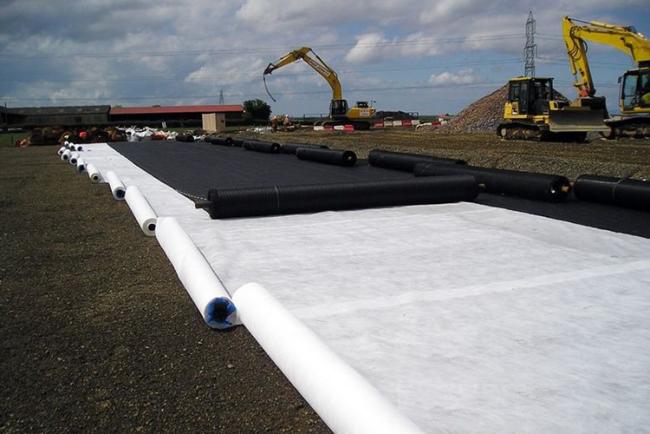

It is mainly used for reinforcement, filtration, isolation and drainage of highway, railway, dyke, coastal beach and other projects, especially for saline alkali swamp and landfill. Its main function is filtration, reinforcement and isolation.
Advantage:
1. Professional factory lab and quality control center .
2. Third party test is available.
3. Welding machine is available for one-stop purchase.
4. Welding team is also available for abroad installation.
5. Project suggestions & solutions are available based on our rich project experience.
6. Various product standard to meet your project needs.
7. Free samples are available.
Package:
Rolling with pipe in core, Double layer woven Bags with strengthened belt for unloading convenience and protecting.
Delivery:
Delivery product will be loaded carefully to make sure it can be well received. 20GP Container can load around 19 tons, 40HQ 25 tons. It casn be shipped in 7 days.
