BV 4mm PP Geotextile Non Woven Membrane Filter Cloth For Railway Reinforcement
Railway Reinforcing Polyester Short Fiber Filament Nonwoven 600gsm White Geotextile
Quick Detail:
material: polyester, polypropylene
function: reinforce, drainage, filtrate and isolate
thickness: 4mm
application: railway, highway, road, pavement, dam
Product Description:
FUYUN ENVIRONMENT made the new geotextile. It includes 2 types as follows:
1.short non-woven geotextile
2.filament non-woven geotextile
It is a new engineering construction material for and standardized product and civil engineering project in our country, because of 2 points:
1. It is made of short filament or filament fibers which is laid into net by high technology, advanced equipment and special steps.
2. It is interweaved with different kinds of fibers by needling punch and other procedures.
Geotextile can be divided into short filament and filament non-woven geotextile according to the length of yarn. This fabric is stiff and thick, plump, soft to be suitable for different thickness. Short fiber needled geotextile has excellent comprehensive properties of isolation, filtration, drainage, reinforcement, protection and engineering adaptability, which is an indispensable new material for geotechnical engineering construction.The short non-woven geotextile is widely used in civil engineering projects, such as sewage plant, chemical plant, railway, highway, road, pavement, dam because its high flat drainage and vertical permeability, high creep resistance, high temperature resistance to up to 230℃ maintaining structure stability,high elongation under certain stress, thus able to adapt to uneven and irregular bases.
Technical Parameters:
| No. | item type | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | note | |
| 2 | Thickness (mm,≧) | 0.9 | 1.3 | 1.7 | 1.9 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 4.1 | 5 | ||
| 3 | Width Deviation (%) | -0.5 | ||||||||||||
| 4 | Breaking Strength (KN/m≧) | 2.5 | 4.5 | 6.5 | 8 | 9.5 | 11 | 12.5 | 14 | 16 | 19 | 25 | Horizontal & Vertical | |
| 5 | Elongation at Break (%) | 25-100 | ||||||||||||
| 6 | CBR Bursting Strength (KN) | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4 | ||
| 8 | Equivalent Aperture O90 (O95) mm | 0.07-0.2 | ||||||||||||
| 9 | Vertical Permeability (cm/s) | Kx(10-1-10-3) | K=1.0*9.9 | |||||||||||
| 10 | Tear Strength (KN≧ ) | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | Horizontal & Vertical | |
Application:
1.Reinforce
2.Filtration and Soil separation
3.Sub-grade stabilization
4.Erosion & sediment control
5.Drainage
6.Protection for geomembrane liners
7.Shoreline protection
Advantage:
- It has good georeinforcement performance, friction coefficient and tensile strength, resistance.
- It has the functions of isolation, filtration, stabilization, drainage, protection and strengthening.
- Convenient construction, light weight and good overall continuity.
- Anti-aging, the product has very high anti-ultraviolet radiation ability, not easy to degradation.
- It is an environmentally friendly building materials without heat treatment, heat treatment or chemical additives.
-
It has strong anti-corrosion and anti burying performance, fluffy structure and good drainage performance.
-
It has good mechanical properties, water permeability.
-
It can be applied to the uneven base, resistance of the damage of external force, and has small creep.
Package:
well packed with tight belt and woven bags in rolls. It makes sure convenient unloading and protecting product.
Delivery:
Well delivery product will be carefully loaded according to customers' requirement. 20GP Container can load around 17.5 tons, 40HQ 25.5 tons. It casn be shipped in 7 days.

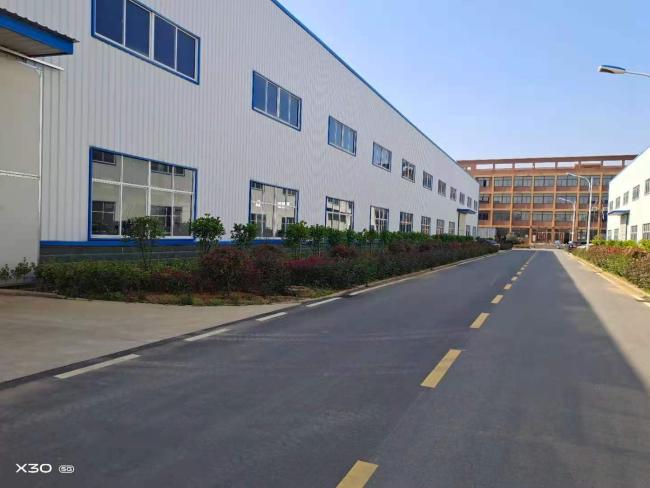

Factory Show:
