400gsm Black Polypropylene Nonwoven Geotextile Fabric Fiter For Road Embankment
Polypropylene Ployester Filament Nonwoven White Road Embankment Reinforce 400gsm Geotextile
Quick Detail:
function: reinforcing, protecting
material: ployester, polypropylene
thickness: 2.8mm
application: road embankment, weak foundation road, highway, railway, pavement
Product Description:
Needle punched non woven filament geotextile is our company a new type of geotechnical engineering material(virgin polyester and polypropylene chips) for geosynthetics engineering in international market. This needle punched non woven filament geotextile is soft, plump, thick and stiff which is suitable for different thickness.
It has 2 types because of the length of yarn: filament and short filament fibers. Our geotextile is interweaved into nets by our special equipment and procedures with different fibers through needling punched and other special spunbond processes.
Filament geotextile punchs together to make the stable 3D fabric higher strength so the tensile strength of filament is much stronger than that of short geotextile. It has a good function of sewage filtration, water filtration and reinforcement, because the fiber is soft and has a certain tear resistance. Specifications range: 100 g/㎡ --- 800 g/㎡.
Technical Parameters:
| No. | item type | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | note | |
| 1 | Mass Deviation Per Unit Area (%) | -6 | -6 | -6 | -5 | -5 | -5 | -5 | -5 | -4 | -4 | -4 | ||
| 2 | Thickness(mm ,≧) | 0.8 | 1.2 | 1.6 | 1.9 | 2.2 | 2.5 | 2.8 | 3.1 | 3.4 | 4.2 | 5.5 | ||
| 3 | Width Deviation (%) | -0.5 | ||||||||||||
| 4 | Breaking Strength (KN/m ≧) | 4.5 | 7.5 | 10 | 12.5 | 15 | 17.5 | 20.5 | 22.5 | 25 | 30 | 40 | Horizontal & Vertical | |
| 5 | Elongation at Break (%) | 40-80 | ||||||||||||
| 6 | CBR Bursting Strength (KN) | 0.8 | 1.4 | 1.8 | 2.2 | 2.6 | 3 | 3.5 | 4 | 4.7 | 5.5 | 7 | ||
| 8 | Equivalent Aperture O90 (O95) mm | 0.07-0.2 | ||||||||||||
| 9 | Vertical Permeability (cm/s) | Kx(10-1-10-3) | K=1.0*9.9 | |||||||||||
| 10 | Tear Strength (KN≧ ) | 0.14 | 0.21 | 0.28 | 0.35 | 0.42 | 0.49 | 0.56 | 0.63 | 0.7 | 0.82 | 1.1 | Horizontal & Vertical | |
Application:

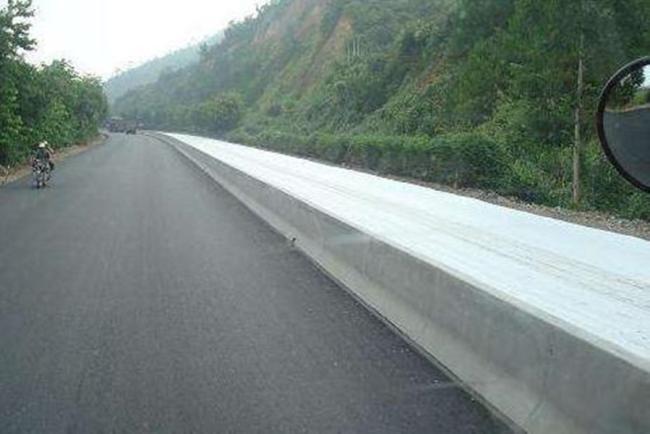

- road embankment
- weak foundation road
- highway and railway
- dyke and flood dikes
- coastal beach and other projects
- saline alkali swamp
- landfills.
Advantage:
- Resistance of erosion of chemicals in soil as well as the corrosion of gasoline and diesel etc.
- It is an environmentally friendly building materials without chemical additives or heat treatment,
-
It has good mechanical properties, water permeability, corrosion resistance, aging resistance,
-
Strong anti burying and anti-corrosion performance, fluffy structure and good drainage performance
-
High elongation under certain stress, thus able to adapt to uneven and irregular bases
-
It has good friction coefficient, tensile strength and georeinforcement performance.
-
It has the functions of isolation, filtration, drainage, protection, stabilization and strengthening.
-
It can adapt to the uneven base, resist the damage of external force, and has small creep.
-
Good overall continuity, light weight and convenient construction.
Package:
well packed in pipe core rolls, 2-layer woven bags with strengthened belt for unloading convenience and protecting product.
Delivery:
Delivery product will be well loaded carefully as requirement. 20GP Container can load around 19 tons, 40HQ 25 tons. It can be shipped in 7 days.

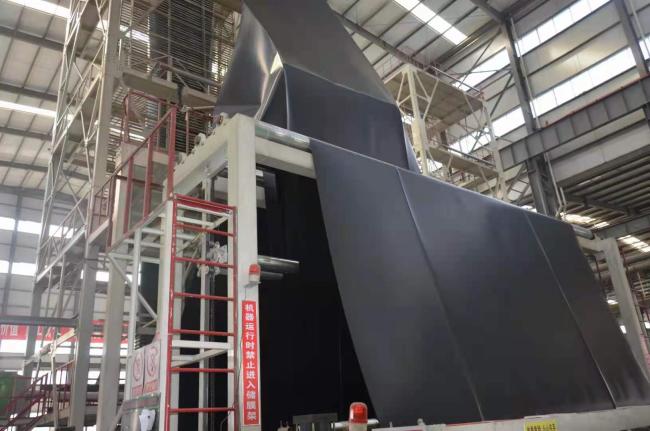

Factory Show:
Why Choose US:
FAQ:
