White 450gsm 6 Oz Non Woven Geotextile Fabric 3.1mm For Parking Lots
Parking Lot Drainage Reinforce Polyester Filament Nonwoven White 450gsm Geotextile Liners
Quick Detail:
function: drainage, reinforce, isolation
material: PP polypropylene, PET polyester
thickness: 3.1mm
application: parking lot, road foundation
Product Description:
The non woven fiber geotextile that FUYUN made is a new type of construction material is made from polyester or polypropylene in random directions and punched together by needles for geotechnical construction engineering projects in international market. It has 2 types according to the different length of yarn: short non woven filament and non woven filament fibers. Our non woven fiber geotextile is interweaved within different fibers by needling punched and other special spunbond processes, and laid into nets by different machines and technologies to meet the customers’ requirement.
FUYUN non woven fiber geotextile is soft, thick and high tensile strength to meet different thickness's requirements.
FUYUN non woven fiber geotextile is needle punched together to make 3D structure highter tensile strength fabric which is higher than that of short one. It has a good function of sewage filtration, reinforcement, superior water permeability, deformation adaptability filtration, durability, deformation adaptability and plane drainage capacity because of its soft and high tensile strength. Specifications range: 100 g/㎡ -- 800 g/㎡.
Technical Parameters:
| No. | item type | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | note | |
| 1 | Mass Deviation Per Unit Area (%) | -6 | -6 | -6 | -5 | -5 | -5 | -5 | -5 | -4 | -4 | -4 | ||
| 2 | Thickness(mm ,≧) | 0.8 | 1.2 | 1.6 | 1.9 | 2.2 | 2.5 | 2.8 | 3.1 | 3.4 | 4.2 | 5.5 | ||
| 3 | Width Deviation (%) | -0.5 | ||||||||||||
| 4 | Breaking Strength (KN/m ≧) | 4.5 | 7.5 | 10 | 12.5 | 15 | 17.5 | 20.5 | 22.5 | 25 | 30 | 40 | Horizontal & Vertical | |
| 5 | Elongation at Break (%) | 40-80 | ||||||||||||
| 6 | CBR Bursting Strength (KN) | 0.8 | 1.4 | 1.8 | 2.2 | 2.6 | 3 | 3.5 | 4 | 4.7 | 5.5 | 7 | ||
| 8 | Equivalent Aperture O90 (O95) mm | 0.07-0.2 | ||||||||||||
| 9 | Vertical Permeability (cm/s) | Kx(10-1-10-3) | K=1.0*9.9 | |||||||||||
| 10 | Tear Strength (KN≧ ) | 0.14 | 0.21 | 0.28 | 0.35 | 0.42 | 0.49 | 0.56 | 0.63 | 0.7 | 0.82 | 1.1 | Horizontal & Vertical | |
Application:

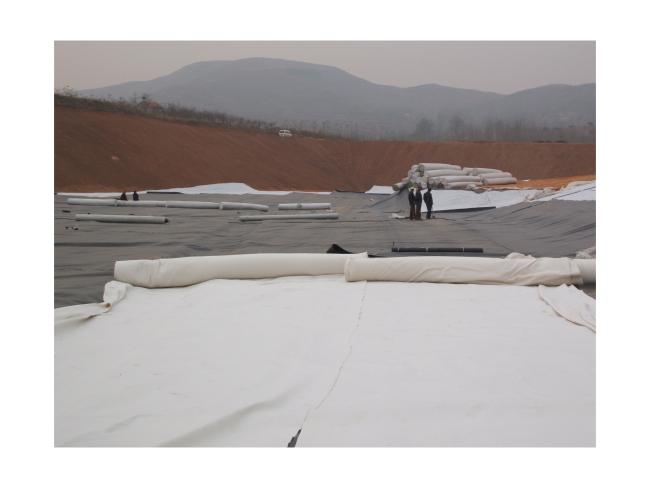

It is used in isolation, drainage, filtration and reinforcement of parking lot, water conservancy, dyke, highway, weak foundation road, railway, coastal beach, flood dikes, and other geotechnical engineering projects..
Advantage:
- Good functions of isolation, drainage, filtration, protection, strengthening and stabilization.
- Resistance of erosion of chemicals in soil such as the corrosion of gasoline and diesel etc.
- It is an environmentally friendly construction materials without chemical additives or heat treatment,
-
It has water permeability, good mechanical properties, corrosion resistance, aging resistance,
-
Good drainage performance and strong anti burying and anti-corrosion performance, fluffy structure.
-
High elongation under certain stress, being able to adapt to uneven and irregular bases
-
It has good tensile strength, friction coefficient, and georeinforcement performance.
-
Good overall continuity, light weight and convenient construction.
-
It can adapt to the uneven base, resist the damage of external force, and has small creep.
Package:
all products will be well packed according to customer's requirement, and we gurantee the product is good when customer receive.
Delivery:
Delivery product will be well loaded carefully according to customers' requirement. 20GP Container can load around 18.5 tons, 40HQ 26.5 tons. It casn be shipped in 7 days.

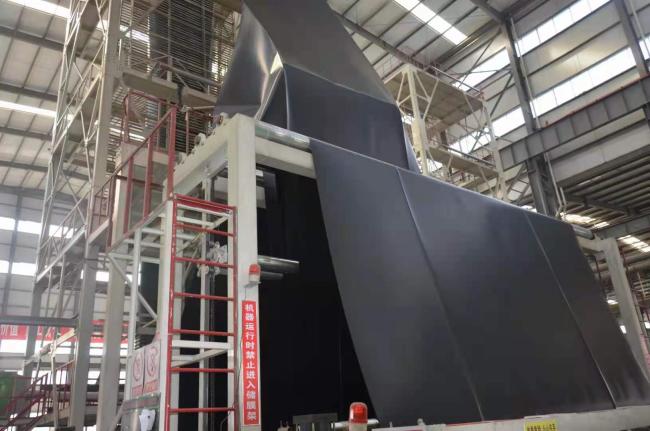

Factory Show:
