Composite HDPE Dimple Board For Wall Drainage Aging Resistance
Vertical Wall Greening Black Reinforce Ventilation HDPE Aging Resistance Composite Dimple 1400gsm Drainage Board
Material: HDPE, HIPS, plastic
Dimple height: 10mm
Width: 3m
Length: 5m
function: reinforce, drainage, waterproof, ventilation
application: vertical wall, golf course, roof garden engineering
Product Description:
Plastic drainage board is made of polystyrene (HIPS) or polyethylene (HDPE) as raw material baseboard, which is made of a conical boss or a reinforced convex point (hollow cylindrical porous) by stamping. The performance has been greatly improved and changed through continuous innovation and R & D. at present, most drainage boards are pressed with PVC as raw material, and the compressive strength and overall flatness have been greatly improved, with width of 1-3m and length of 4-10m or more.
1. 100% pure HDPE + Advanced equiment + 24 hours production + standard exporting package
2. We produce dimple drainage board in 2~3m width, length as your request
3. Also produce composited dimple drainage board with geotextile by heating
A good drainage system plays an important role in the construction period of civil engineering, the normal use and life of buildings. The drainage board and porous permeable pipe form an effective drainage system, and the cylindrical porous drainage board and geotextile also form a drainage system, thus forming a system with the functions of water seepage, water storage and drainage.
Technical Parameter:
| No. | Item | Unit | Standard Value | ||||
| 1200g | 1400g | 1600g | 1800g | 2000g | |||
| 1 | Mass per unit area of composite | g/m2 | ≥1200 | ≥1400 | ≥1600 | ≥1800 | ≥2000 |
| 2 | Composite thickness | mm | ≥6.0 | ≥7.0 | ≥8.0 | ≥9.0 | ≥10.0 |
| 3 | Longitudinal tensile | kn/m | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 |
| 4 | Composite ydraulic conductivity | m2/s | ≥1.2*10-4 | ≥1.2*10-4 | ≥1.2*10-4 | ≥1.2*10-4 | ≥1.2*10-4 |
| 5 | Peel strength | kn/m | ≥0.3 | ≥0.3 | ≥0.3 | ≥0.3 | ≥0.3 |
| 6 | Mesh core thickness | mm | ≥5.0 | ≥5.0 | ≥5.0 | ≥5.0 | ≥5.0 |
| 7 | Tensile strength | kn/m | ≥13.0 | ≥15.0 | ≥15.0 | ≥15.0 | ≥15.0 |
| 8 | Mass per unit area | g/m2 | ≥200 | ≥200 | ≥200 | ≥200 | ≥200 |
| 9 | Dimple height | mm | 10 | 10 | 11 | 12 | 12 |

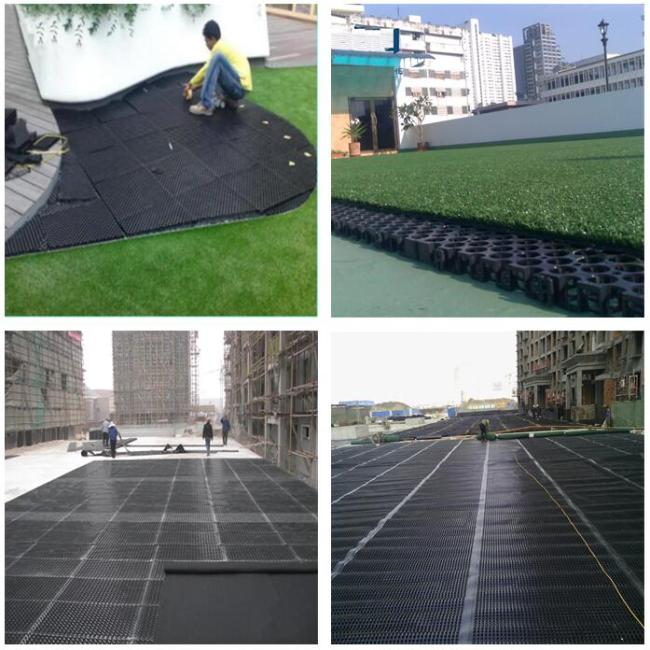

Application:
- Greening Project: garage roof greening, roof garden, vertical greening, sloping roof greening, football field, golf course
- Municipal Engineering: airport, road subgrade, subway, tunnel, landfill
- Construction Engineering: upper or lower layer of building foundation, interior and exterior wall, floor and roof of basement, roof anti-seepage and heat insulation layer
- Water Conservancy Project: reservoir seepage prevention, reservoir, artificial lake seepage prevention
- Traffic Engineering: highway, railway subgrade, dam and slope protection layer
Advantage:
- High Compressive strength
- Eco-friendly, waterproof polypropylene material
- Lightweight and easily transportable
- Thermal regulation
- Low cost
- Quick and easy to install
Package:
producrs are packed in roll with woven bags and waterproof file, and we gurantee the product is good when customers receive it.
Delivery:
all products will be delivered on time as customers requirement. generally it can be shiped in 7 days. 20GP, 40GP, 40HQ container is available.
Supply Ability:
25 tons per day.
