Anti Acid Podium Landscaping Foundation Drainage Board For Balcony Greening
Anti Acid Drain Board Waterproofing , Podium Landscaping Foundation Drainage Board For Roof Greening Balcony Greening
Podium Landscaping Black Waterproof HDPE Anti Acid Composite Dimple 1200gsm Drainage Plate
Quick Detail:
Material: LDPE, HDPE, HIPS, plastic
Dimple height: 10mm
Width: 3m
Length:10m
function: drainage, waterproof, ventilation
application: roof garden engineering
Product Description:
Plastic drainage board is made of polystyrene (HIPS) or polyethylene (HDPE) as raw material baseboard, which is made of a conical boss or a reinforced convex point (hollow cylindrical porous) by stamping. The performance has been greatly improved and changed through continuous innovation and R & D. at present, most drainage boards are pressed with PVC as raw material, and the compressive strength and overall flatness have been greatly improved, with width of 1-3m and length of 4-10m or more.

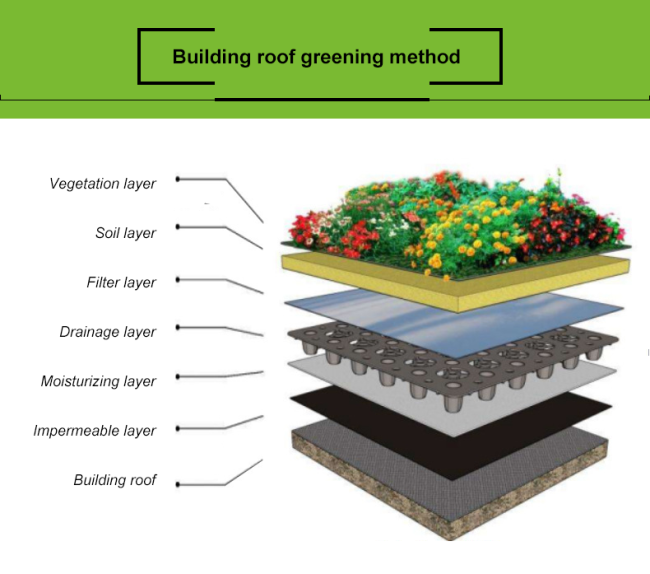

A layer of filter geotextile is glued on the top surface of the cylindrical boss to prevent the soil particles from passing through, so as to avoid the blockage of the drainage channel and make the drainage channel smooth. Traditional drainage method uses brick and tile stones as the guide filter layer, and more pebbles or crushed stones are used as the filter layer to discharge water to the designated place. While the use of drainage board instead of pebble filter layer can save time, energy, reduce investment and reduce the load of buildings.
A good drainage system plays an important role in the construction period of civil engineering, the normal use and life of buildings. The drainage board and porous permeable pipe form an effective drainage system, and the cylindrical porous drainage board and geotextile also form a drainage system, thus forming a system with the functions of water seepage, water storage and drainage.
Technical Parameter:
| No. | Item | Unit | Standard Value | ||||
| 1200g | 1400g | 1600g | 1800g | 2000g | |||
| 1 | Mass per unit area of composite | g/m2 | ≥1200 | ≥1400 | ≥1600 | ≥1800 | ≥2000 |
| 2 | Composite thickness | mm | ≥6.0 | ≥7.0 | ≥8.0 | ≥9.0 | ≥10.0 |
| 3 | Longitudinal tensile | kn/m | ≥16 | ≥16 | ≥16 | ≥16 | ≥16 |
| 4 | Composite ydraulic conductivity | m2/s | ≥1.2*10-4 | ≥1.2*10-4 | ≥1.2*10-4 | ≥1.2*10-4 | ≥1.2*10-4 |
| 5 | Peel strength | kn/m | ≥0.3 | ≥0.3 | ≥0.3 | ≥0.3 | ≥0.3 |
| 6 | Mesh core thickness | mm | ≥5.0 | ≥5.0 | ≥5.0 | ≥5.0 | ≥5.0 |
| 7 | Tensile strength | kn/m | ≥13.0 | ≥15.0 | ≥15.0 | ≥15.0 | ≥15.0 |
| 8 | Mass per unit area | g/m2 | ≥200 | ≥200 | ≥200 | ≥200 | ≥200 |
| 9 | Dimple height | mm | 10 | 10 | 11 | 12 | 12 |
Application:
Landscape engineering: garage top greening,roof garden,football field,golf course,beach project.
Municipal engineering: road base,subway,tunnel,landfill.
Construction engineering: upper or bottom layer of building foundation,basement wall,bedding filtration and heat insulation.
Traffic engineering: highway,railway basement,dam and slope.
Advantage:
- High Compressive strength
- Eco-friendly, waterproof polypropylene material
- Lightweight and easily transportable
- Thermal regulation
- Low cost
- Quick and easy to install
Package:
Rolling with pipe in core, Double layer woven Bags with strengthened belt for unloading convenience and protecting
Delivery:
Product can be shipped in 7 days, and product will be loaded carefully to make sure it can be well received. 20GP Container can load around 19 tons, 40HQ 25 tons.
Supply Ability:
25 tons per day.
