Soundproof Aluminum Honeycomb Core
Soundproof Aluminum Honeycomb Core For Metro And Train
WDF Honeycomb manufactures high quality aluminium honeycomb core material which is used in a wide variety of applications worldwide. Aluminium honeycomb is highly desirable due to its incredibly high strength-to-weight ratio and is applicable wherever lightness and strength are required. WDF Honeycomb supplies high quality aluminium honeycomb to global markets including the Aerospace, Marine, Defence, Rail and Automotive industries.
Mechanical properties:
• Lightweight
• Stiffness
• Fire resistance
• Compression, shear and corrosion resistance flatness
Specification:
WDF produces mainly two types of aluminum honeycomb core: Micro-aperture aluminum core and Normal aluminum core.
Supplying forms:
- For normal aluminum core: unexpanded block form and is stretched out / expanded into a sheet on-site.
- For micro-aperture aluminum core (cell size is smaller than 2.5mm): expanded form
Supplied form:
Expanded or unexpanded.
Full blocks or cut slices.
Perforated or un perforated.
Corrosion treated or untreated.
Our aluminum honeycomb is adhesive-bonded of the aluminum foil, which produces one of the highest strength and the highest
surface-to –volume ratio of any structural material. Our aluminum honeycomb is made from 3003H18 and 5052H18 aluminum alloy foil.
|
Product Name
|
aluminum honeycomb core
|
|
Material type
|
A3003H18 / 5052H18
|
|
Cell side length (mm)
|
5, 0.6, 0.7, 0.8, 0.9, 1.0, 1.5, 1.83, 2, 2.5, 3, 4, 5, 6, 7.5, 10, 12, 15 mm
|
|
Foil thickness
|
0.025-0.08 mm, 0.1mm
|
|
Height/Sheet Thickness
|
1.5mm to 500mm
|
|
Max Sheet Sizes
|
1700mm (L) x 8000mm (W)
|
|
Standard
|
CN, BS, ASTM
|
|
Capacity
|
50K m2/month
|
Applications:
Aluminum Honeycomb Core is widely used in electronic and industrial field which is including as below.
- Architectural Building Cladding and decoration
- Architectural Rainscreen Facades
- Lightweight interior architectural panels
- Tables and furnitures.
- Aerospace, Marine & Transport Flooring, Walls & Partitions
- Silk Screen Printing Tables
- CNC Vacuum Bases
- Lightweight Floors, Walls, Ceilings, etc
- Special Purpose Panel Design
Aluminium honeycomb can be used in a virtually unlimited number of applications. Some of the most widespread applications are as follows:
| Aluminum Honeycomb Core Application | |
| Rail | Doors |
| Floors | |
| Sanitary Modules | |
| Energy Absorbers | |
| Furniture | |
| Walls | |
| Dividing Panels | |
| Marine | Interior Panels and Partitions |
| Furniture | |
| Ceiling and Flooring Panels | |
| Hulls and Bulkheads | |
| Doors | |
| Construction | Building Facades |
| Ceiling and Flooring Panels | |
| Clean Rooms | |
| Furniture | |
| Industrial | Exterior architectural curtain wall panels |
| Flow Straightening ( Air and Liquid) | |
| Heating and Ventilation | |
| Electromagnetic shielding | |
| Sacrificial Beds (Laser and Waterjet) | |
| Automotive | Motorsports |
| Commercial and Vehicles | |
| Impact Energy Absorbers | |
| Wind Turbines | Rotor Blades |
| Turbine Cladding | |
| Mould Construction | |

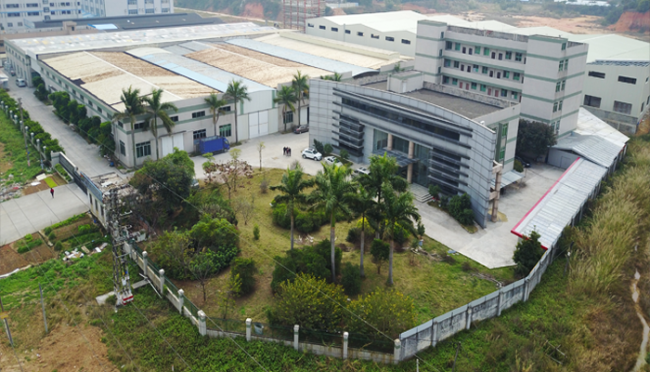

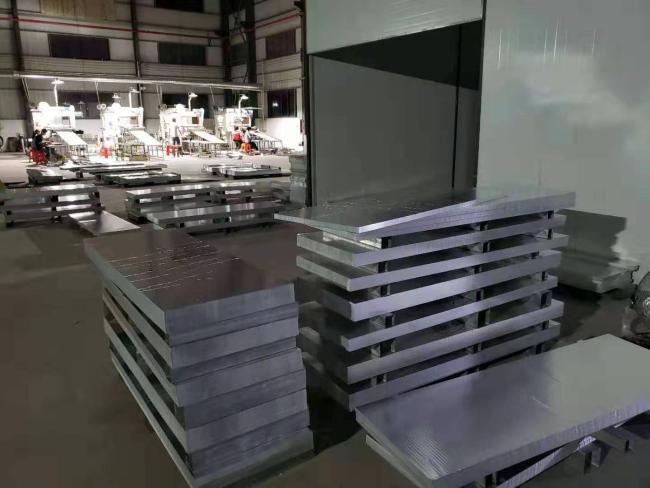

WDF Factory
