1kg Anti Explosion Transformer Silica Gel Breather Round Flange
1kg Anti-Explosion Transformer Dehydrating Breather with Silica Gel
Product Description
The dehydrating breather is used to dry the intake air of transformers.
If the operating temperature of the transformer drops, air will be sucked in through the oil container, cleaned of dirt particles and subsequently dried by the silica gel inside the assembly
The oil trap prevents any permanent contact between the silica gel and the moist ambient air and also filters the inflowing air. If the temperature rises, air is expelled from the conservator and flows through the transformer dehydrating breather type L in the opposite direction. The size of the dehydrating breather which has to be used depends on the oil volume and the frequency of the air exchange.
Specifications and uses
Used for absorption of moisture vented from storage tanks
Size: Customized
Condition: New
| Code | Model | D (mm) | H (mm) | Silica Gel Wight (kg) | Transformer Capacity of Oil (kg) | Applicable Transformer Capacity (reference value) |
| M-686.2 | XS3-0.5 | 135 | 200 | 0.5 | 1500 | Below 200KVA |
| M-686.3 | XS3-1 | 140 | 390 | 1 | 3500 | Below 630KVA |
| M-686.4 | XS3-1.5 | 140 | 430 | 1.5 | 5000 | Below 2000KVA |
| M-686.5 | XS3-2 | 140 | 460 | 2 | 7000 | Below 3150KVA |
| M-686.6 | XS3-3 | 170 | 500 | 3 | 10000 | Below 10000KVA |
| M-686.7 | XS3-5 | 170 | 550 | 5 | 22000 | Below 50000KVA |
| M-686.8 | XS3-10 | 220 | 670 | 10 | 35000 | Below 500000KVA |
Features
-
Controller adjusted to application-specific model of the devices
-
DIN flange for optimal mounting
-
Test button for performing self-tests
FAQ
Q1: What is your MOQ?
A: Our MOQ is 1 piece.
Q2: Do you offer sample?
A: Yes, we can provide you a sample.
Q3: What is your payment term?
A: 100% TT in advance.
Q4: What is your lead time?
A: 3-10 work days after order confirmed. Urgent need please discuss with us to find a way out!
Q5: Are you a manufacturer or a trader?
A: We are a manufacturer and all the items mentioned are made by ourselves. We have our own sales team to provide you the best export service too.
Q6: Can you make the packing and logo as customer request?
A: Yes we can.

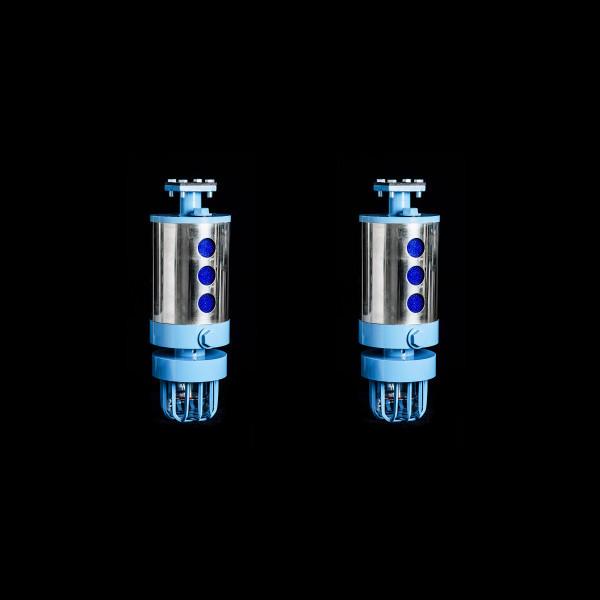

Product picture
