Logic Level Polarity Interchange Converter of PLC NPN and PNP Sqare Wave Signal 4 Ways

NPN <===> PNP interchange converters, two options are both designed into one module , Optical Coupler Isolation.

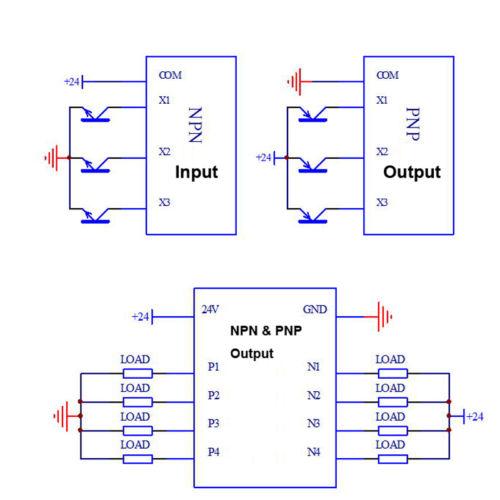

Singal Source Input: It accepts either NPN type or PNP type sensors
Singal Output: NPN singal and PNP signal at the same time

(for example, Mitsubishi FX3U is NPN output, Simens S7-200 is PNP output)

Supply Voltage : 24V DC ( Note: It is not 5V DC)
Output Voltage : 5 - 24V DC
Standard DIN rail mounting ( 35 mm)
Temperature range 10 °C to 55 °C
Trsnsimission Frequency: 10KHz (Maximum)
LED indicator for output ON

Product size : 80mm L x 45mm W around

Application Reference Example:

1. 5V TTL singal ===> 24V HTL signal or 24V HTL singal ===>5V TTL singal
2. Booter the distance of 5V TTL singal reliable transmission

Pacakge including : 1* NPN PNP Interchage converter

Note: some times the item is from customized products, the actual product will have some minor difference from
the photo, thanks.
