Working temperature: -20-60°C
Supply voltage: AC90V ~ 240V (50~60Hz)

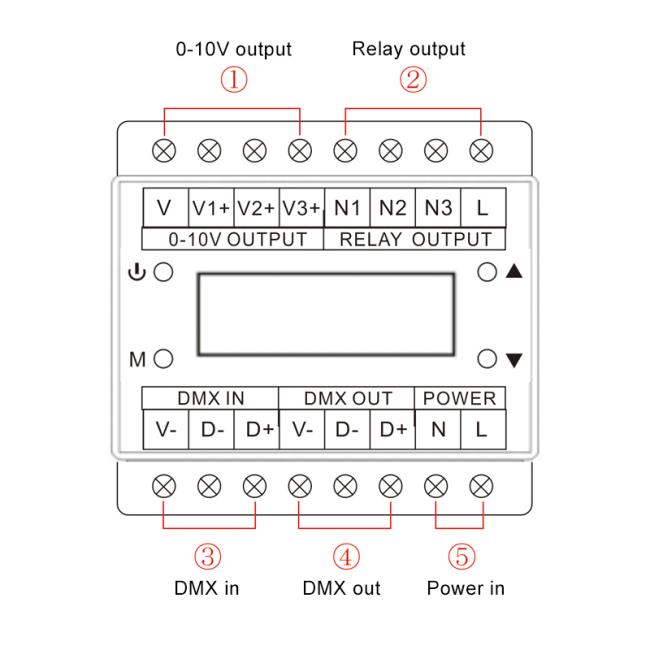

Output: 3 channels

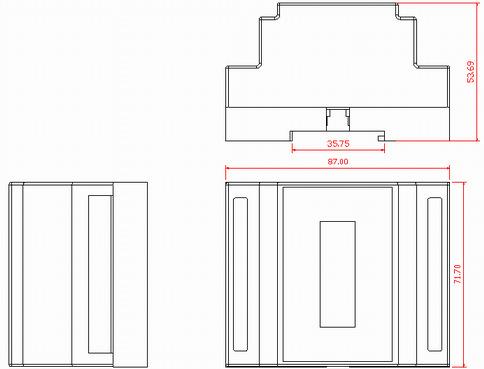

External dimension: L87×W72×H54 mm
Packaging size: L100×W80×H75 mm
Net weight: 155g
Gross weight: 210g
Static power consumption: <3W
Output current: <1A Maxium (each channel)

Relay maximum output power: <200W(each channel)
Output power: 110V: <3×110W, 220V: <3×220W
Diming method: trailing edge dimming

DMX 0-10V dimmer adopt industrial grade advanced computer control chip, the shell adopt guide rail type, suitable for industrial application.

3 channel relay power supply output, as 3 channel 0-10V power supply input, the dimming effect is better.

Used to control the lamps and lanterns which connect with 0-10V power supply, have convenient wiring, easy to use such advantages.

According to customer's actual demand can realize the dimming function.
