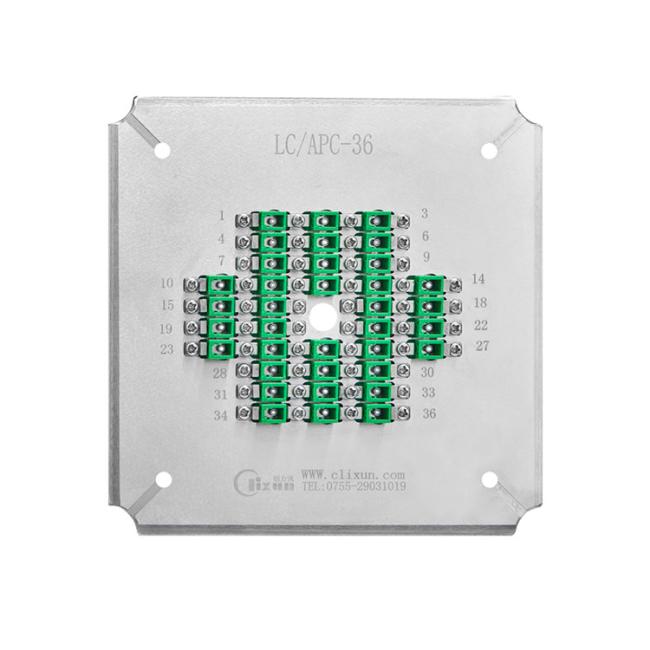

36 Connector LC / APC Housing Fiber Optic Polishing Jig / Fixture
36 Connector LC / APC Housing Fiber Optic Polishing Jig
Model:LC/APC-36
Place of Origin:ShenZhen,China
LC APC Fiber Optic Polishing Jig Product description
Fiber polishing fixture using high quality steel with heated treat, the hardened steel S136 providing long service life. This fiber polishing fixture can be designed with the jig of SC, FC, ST, LC, etc, and also according to the customer request.
LC APC Housing Fiber Optic Polishing Jig Feature
1. Designed for polishing manner with planet tray
2. The fiber polishing fixture is IPC Structure, Independent compression of each connector. The fiber polishing fixture pass rate with Interference> = 98% (100% Typical, according to IEC),
3. Dual APC &UPC polishing and Accommodating most styles of connectors
4. High efficiency to deal with all kinds of connectors. The maximum polishing quantity for LC connectors is 36or48 pcs; And maximum polishing quantity for MU,SC, FC and ST connectors is 36pcs
5. The polisher was made by high quality stainless steel with heat treatment and it is high accuracy and durability
6. Quick to change jigs, Easy and flexible to operate
7. APC return loss as low as -70 dB, UPC return loss as low as -60 dB, Insertion loss 0.2 dB typical
8. Super centering accuracy
9. Excellent connector end-face polishing quality
LC APC Polishing Fixture Specifications
| Model | LC-APC-36 | LC-PC-40 | LC-PC-48 |
| Brand | CLX | CLX | CLX |
| Connector Type | LC APC | LC PC | LC PC |
| End-face | PC | PC | PC |
| Ferrule Diameter | 1.25 mm | 1.25 mm | 1.25 mm |
| Capacity | 36 positions | 40 positions | 48 positions |
| Application | Polishing assembled LC APC connectors | Polishing assembled LC PC connectors | Polishing assembled LC PC connectors |
| Material | Stainless Steel s136 | ||
| Dimension (L*W*H) | 174*174*26 mm | ||
| Net Weight / Gross Weight (kg) | 1.5 kgs / 2.0 kgs | ||
| Suitable machines |
CLX-02E polishing machine Seikoh Giken SFP-550 polishing machine The similar machines |
||
Applications:
1. Polishing LC APC connector on patch cords
2. LC APC connector polishing on pigtail
3. Polishing LC APC connector on attenuator.
FAQ
1. Are you a factory or a trader?
-we are factory.
2. What is your MOQ?
......MOQ 1 piece.
3. Do you provide sample services?
-Yes, we will provide samples.
4. How will you ship to me?
-We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.
5. How do we pay?
-Book in advance or multiple payment methods such as T / T and T / L.
6. How long is your product warranty?
-The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
7. Do you provide customized services?
-Yes, we provide customized services, According to customer requirements and description.
