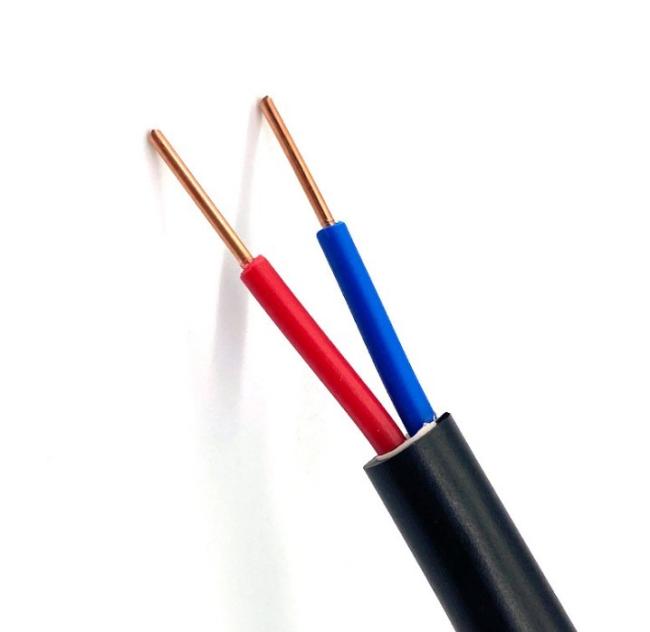

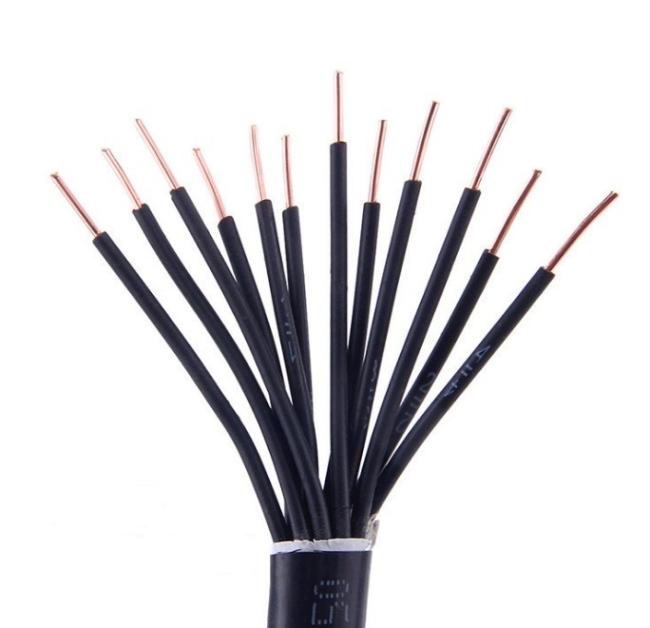

0.75-10mm2 PVC Insulated PVC Sheathed Cable KVV PVC Control Cable 600V

IEC60227 0.6/1kV PVC Insulated PVC Sheathed Control Cable 0.75-10 Mm2

Introduction:

KVV cable is a PVC insulated control cable, which is mostly used for wiring of control, signal, protection and measurement systems.

Application:

Scope of application: PVC insulated and sheathed control cables are suitable for wiring of control, signal, protection and measurement systems with rated voltages of 450/750V and below or 0.6/1kV and below.

Use characteristics:

- The rated power frequency voltage Uo/U is 450/750V.
- The allowable long-term maximum working temperature of the cable conductor is 70℃.
- The ambient temperature during cable laying should not be lower than 0℃. If the ambient temperature is lower than 0℃, the cables should be preheated.
- The recommended allowable bending radius of the cable is as follows:
Non-armored cables should be no less than 6 times the outer diameter of the cable
Armored or copper tape shielded cables should not be less than 12 times the outer diameter of the cable;
The shielded flexible cable should not be less than 6 times the outer diameter of the cable.

Specificaiton:

PVC Insulated Cable
