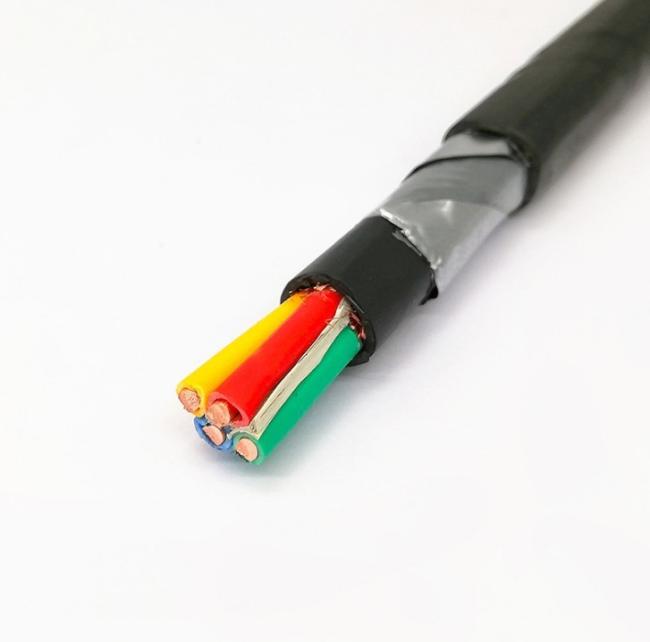

Indoor KVVP PVC Insulated Cable Four Core Copper Shielded Control
Indoor 450/750V 4 Core Copper Shielded Control PVC Insulated Cable
Product Usage:
It is suitable for connecting wires of control and monitoring circuits and protection circuits with rated voltages U0/U 450/750V and below. It is mainly used in places where electromagnetic wave interference is prevented and shielding is required.
Conditions of Use:
The long-term allowable working temperature of the cable conductor is 70°C, and the high temperature resistant shielded cable can reach up to 300°C.
Cable laying and installation allowable bending radius:
1. The cable without armor layer should not be less than 6 times the outer diameter of the cable.
2. Cables with armored or copper tape shielding structure should not be less than 12 times the outer diameter of the cable.
3. The flexible cable with shielding layer structure should not be less than 6 times the outer diameter of the cable.
Specificaiton:
| Product name | PVC Insulated Cable |
| Certifications | CE/CCC/ISO |
| Standard | IEC60502-1 |
| Rated Voltage | 450/750V |
| Conductor material | Copper/Aluminum |
| Insulation Material | PVC |
| Armoured Material | None/Steel Tape/Steel wire |
| Jacket Material | PVC |
| Number of cores | 1C,2C,3C,4C,5C,3+1C,3+2C,4+1C |
| Section area | 1.5MM2 - 400MM2 |
PVC Insulated Cable
