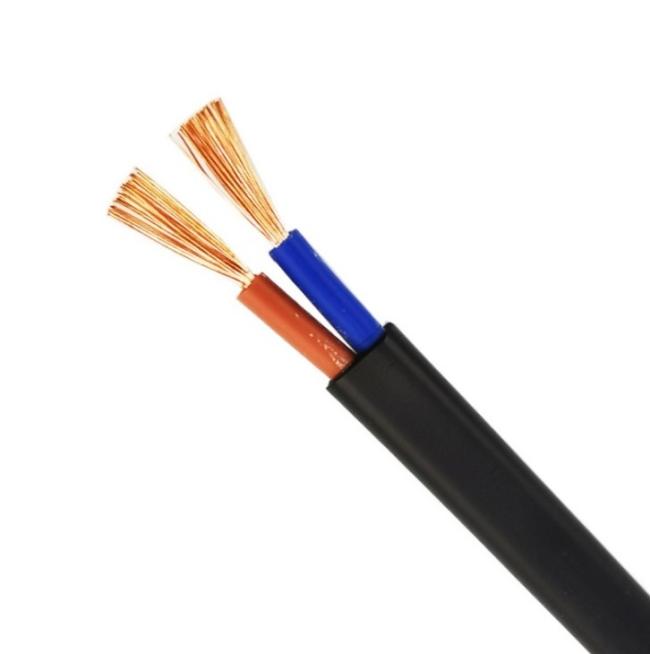

Flat Power Cord Fire Resistant Control Cable RVVB Annealed Bare Copper Wire
Annealed Bare Copper Stranded PVC Insulated Flat Power Cord Fire Resistant Control Cable
Scope of application:
RVVB fire resistant control cable is a flat power cord with a copper core and PVC insulated sheath, which is suitable for household appliances, lighting, security monitoring cables, etc.
Instruction:
◎ PVC sheath
◎ PVC insulation
◎ The conductor is multi-core annealed bare copper stranded
◎ The rated voltage Uo/U is 227IEC52300/300V 227IEC53300/500V
◎ Long-term allowable working temperature should not exceed 70℃
Difference from RVB
RVB and RVVB have the same purpose
RVB is a flat non-sheathed cord
RVVB is a flat sheathed cord
Both RVVB has an extra layer of sheath than RVB
Difference from RVS
RVVB is a flat parallel sheathed wire
RVS is a non-sheathed twisted pair
Difference with RVV
RVVB and RVV are both sheathed wires, which are close in use.
The difference is that RVVB is flat and RVV is round.
At the same time, RVVB is generally only a 2-core sheathed wire, while the number of cores of RVV ranges from 2-24 cores.
Specificaiton:
| Product name | Fire Resistant Control Cable |
| Certifications | CE/CCC/ISO |
| Standard | IEC60502-1 |
| Rated Voltage | 300V/500V |
| Conductor material | Copper/Aluminum |
| Insulation Material | PVC |
| Armoured Material | None/Steel Tape/Steel wire |
| Jacket Material | PVC |
| Number of cores | 1C,2C,3C,4C,5C,3+1C,3+2C,4+1C |
| Section area | 1.5MM2 - 400MM2 |
Multicore Control Cable
