Multi-Purpose Automatic Authentic Herbs Green White Cardamom Pistachio Grain Kidney Beans Color Sorter
Price:
17800
MOQ:
1
Delivery Time:
15-20days
Brand:
WenYao
Product Description

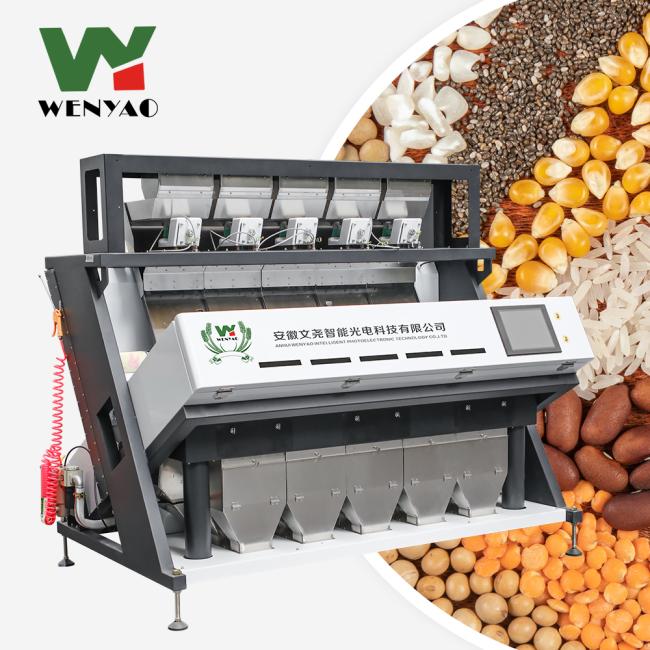

Authentic Herbs Green White Cardamom Color Sorter Multi-Purpose Automatic Pistachio Grain Kidney Beans Color Sorting Machine
Machine Functionality
The color sorter operates by uniformly distributing materials from the feed hopper across each chute via vibration. As materials descend, the CCD sensor detects any substandard materials or impurities, activating the ejector to remove defective items.
- Focus On Systematic And Original Design
- Multi-Dimensional Intelligent Color Sorting
- Intelligent And Convenient Interactive Interface
- Make Color Sorting More Professional And Intelligent
Technical Specifications
| Model | Power | Voltage | Air Pressure | Air Consumption | Dimension |
|---|---|---|---|---|---|
| WYCS1-32 | 0.7KW | 180~240 50HZ | 0.6~0.8Mpa | <0.25m³/Min | 460*895*1162mm |
| WYCS1-64 | 1.1KW | 180~240 50HZ | 0.6~0.8Mpa | <0.5m³/Min | 800*1556*1275mm |
| WYCS2-128 | 1.4KW | 180~240 50HZ | 0.6~0.8Mpa | <1.0m³/Min | 1240*1556*1836mm |
| WYCS3-192 | 1.7KW | 180~240 50HZ | 0.6~0.8Mpa | <1.5m³/Min | 1580*1556*1836mm |
| WYCS4-256 | 2.0KW | 180~240 50HZ | 0.6~0.8Mpa | <2.0m³/Min | 1854*1560*1840mm |
| WYCS5-320 | 2.3KW | 180~240 50HZ | 0.6~0.8Mpa | <2.5m³/Min | 2205*1560*1860mm |
| WYCS6-384 | 2.7KW | 180~240 50HZ | 0.6~0.8Mpa | <3.0m³/Min | 2540*1560*1860mm |
| WYCS7-448 | 3.0KW | 180~240 50HZ | 0.6~0.8Mpa | <3.5m³/Min | 2875*1560*1860mm |
| WYCS8-448 | 3.4KW | 180~240 50HZ | 0.6~0.8Mpa | <4.0m³/Min | 3010*1545*1860mm |
| WYCS10-640 | 4.0KW | 180~240 50HZ | 0.6~0.8Mpa | <4.5m³/Min | 3630*1545*1860mm |
Key Configurations
- Engine: High-torque, low-emission diesel engine (Tier III compliant)
- Hydraulic System: Precision-controlled pumps and valves for smooth operation
- Undercarriage: Reinforced steel tracks with adjustable tension
- Cab: Ergonomic ROPS/FOPS-certified cabin with air conditioning
- Arm & Bucket: Multiple size options (standard, long-reach, heavy-duty)
- Control System: Intelligent monitoring panel with fault diagnostics
Sorting Performance
Company Profile
Anhui Wenyao Intelligent Photoelectronic Technology Co., Ltd. was founded in 2007 and specializes in the design, manufacture, and sales of high-tech optical color sorting machines. Our machines sort a wide range of materials including wheat, rice, tea, melon seeds, grains, nuts, dried vegetables, seafood, plastics, and ores. We serve customers across Asia, the Middle East, Europe, and Africa.
Through extensive international cooperation and OEM services, Anhui Wenyao has developed advanced procedures and techniques in the color sorting field, delivering high-quality products worldwide. We have earned an excellent reputation in domestic and international markets including Africa, the Middle East, and Southeast Asia.

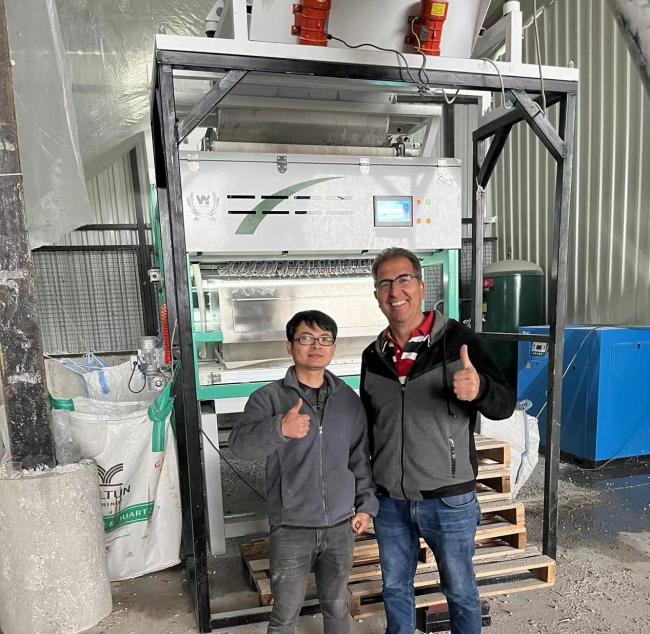

Successful Cases
After Sales Service
- Standard Warranty: 24 months
- Global Support: 24/7 technical assistance and spare parts supply
- Training: On-site or remote operation/maintenance training
Frequently Asked Questions
Q: What's the lead time for orders?
A: Standard models ship in 15-30 days; customized units require 30-45 days.
Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions.
Q: Can I request a customized bucket size?
A: Absolutely! We offer tailored attachments.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
