Energy Saving Wheat Sorting Machine , 1 Chute Corn Color Sorter With Wifi Control
Energy Saving Color Sorter Wheat Corn Rye Quinoa Color Sort Machine With Wifi Control For Globle
Features:

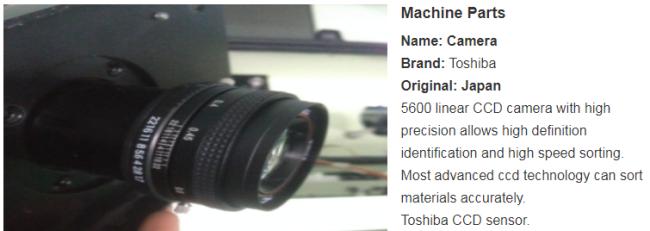

1. Adopting 5400 pixels high-accuracy linear CCD camera, professional images acquisition and processing system can process images' parameters at high speed.
2. Bus structure ensures high consistency of signal, strong anti-interference capability, better stability and more simplified structure.
3. Minimum discolor area of 0.08 mm2 can be accurately identified, and the checking area is adjustable according to sorting requirement.
4. Both flat type and channels type U-shaped chutes are available, hence the color sorter can sort many other grains and granules.

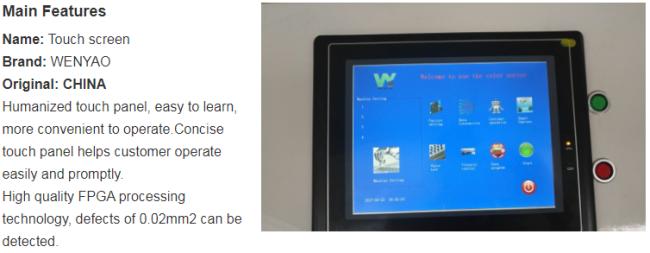

5. Embeded operation system, user-friendly interface, convenient operation.
Product Application:
2.Promise dimming function breaking the traditional mechanical mode and implementing background light fast response.
3.Automatic check function cutting more uniform,color selection more consistency.
4.Super clear 5400CCD sensor and lens fully meet fine imaging needs,identifying sports,fresh yellow,yellow choose less ability with whit world class.

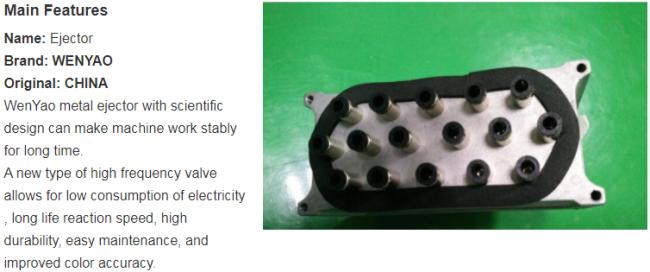

5.New type spray valve system spray value life can reach more than 80 million times.Operating frequency>1KHZ,improve carryover.
6.New integrated large screen operation with remote control,remote diagnostic interface,implement color sorter mobile operation,with a "a key intelligence" function,the operation be more convenient.
Technical Parameters:
| MODEL | WYCS1-32 |
| Chutes/Channels | 1/32 |
| Throughput(t/h) | 1-2t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 0.5kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <0.3M3/Min |
| Weight | 180kg |
| Diamension(L*W*H) | 460*895*1356mm |
Detailed images:

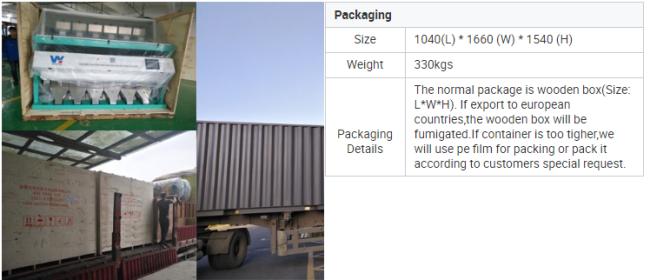

Packing delivery:
FAQ:
1. How about engineers service oversea?
Engineers available to service machinery overseas.
2. How to use the machine?
We will supply customer the installation catalog or video online.
We will ask our engineer to teach you, how to use when he go to your country to debug the machine.
3. How about the sample machines for testing?
Sample sending for testing is welcomed.Or you send these three photos,the raw material,good material (which is you want) ,bad material (which is you want to discard). we send our video to you.
4. How about the guarantee period?
Two year.
5. Will you accept L/C as payment?
L/C ,T/T is OK .
6.Do you have any other spare parts for the customer?
Yes,we will supply you some spare parts .
7.Which machine will work together with our color sorter which you can supply?
Air compressor ,Air tank ,Air filters,Air dryer , light sources, cleaning brushes, etc
Examples of grain wheat color sorting:
Examples of other color sorting:
Custom's site:
