Wheat Barley Rye Grain Color Sorter 5 Ton/H With CCD Camera

Price Negotiable

Price: Negotiable

MOQ: 1 PCS

Delivery Time: 7-10 work days

Brand: WENYAO

Product Description

5 Ton/H Grain Color Sorter Wheat Barley Rye Color Sorting Mahcine With CCD Camera

The selected material enters the machine from the top hopper, slides down the channel through the vibration of the vibrator device, accelerates the falling into the observation area of the sorting room, and passes through the sensor and the background plate. Under the action of light source, according to the intensity and color change of light, the system generates output signal to drive the solenoid valve to work and blow out the heterochromatic particles into the waste cavity of the hopper, while the good selected materials continue to fall into the finished cavity of the hopper, so as to achieve the purpose of sorting.

5 chuts color sorter poduct show

MODEL	WYCS5-320
Chutes/Channels	5/320
Throughput(t/h)	5-10
Sorting Aaccuracy	≥99.99%
Power	2.9kw
Power Voltage	180-240V/50Hz
Air Source Pressure	0.6-0.8Mpa
Air Consumption	1.3-2.8M3/Min
Weight	900kg
Diamension(LWH)	224415401852mm

Grain Colour Sorter Components:

Wenyao Big Database
5400Pixel CCD Image Acquisition System
Image Processing System
Intelligent Dust Cleaning System
Self Design High Frequency Ejectors
Low Temperature LED Light Source
Intelligent LED Control System
Remote Control System
Automatic Computing and Super Brain Intelligent Identification

Product Application:

Agriculture products color sorter

Used for:Rice,Wheat,Corn,Soybean,Peanut,Nut,Grain,Cereal,Seeds,Bean,Sunflower seeds,Walnut,Almond,Quinoa,Salt,Medlar,Pistachio,Kidney bean,Red bean,Black bean,Green bean,Coffee bean,Fava bean,Mung bean,Millet,Sorghum,Peeled garlic,Dehydrated garlic,Lotus seed,Sesame,Pine nut kernel,Watermelon seeds,Cotton seeds,Melon seeds,Buckwheat,Oats,Barley,Cardamon,Pea,Lentil,Cashew nut,Raisin,Jujube,Evaporate vegetables,Sugar,Onion,Potato,Blueberry,Tomato,Mango,Chickpea,Olives,Chili,others.

Industrial product color sorter

Used for:Waste Plastics,Plastic pellet,Plastic pieces,Plastic granule,Plastic bottle cap flake,PET bottle scrap,ABS plastic flake,PP plastic scrap,Recycled plastic,Quartz stone,Quartz sand,Potassium feldspar,Barite,Calcite,Limestone,Pearl,Marble and others.

River&Sea food color sorter

Used for: Dried shrimp, fish, small fish clove and so on.

Customized color sorter

Can be customized according to customer specific color selection program.

Color sorter sorting effect for grain

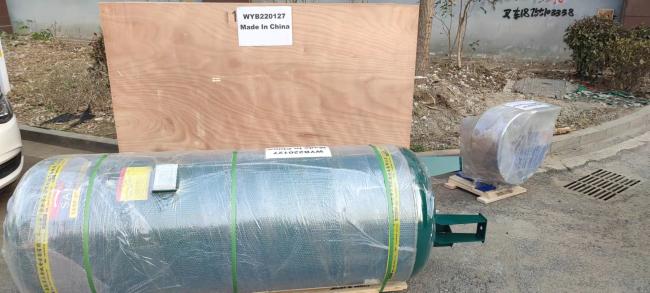

Packing delivery
Packaging Details:

Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.
Delivery Detail:

Within 15 - 20 days after received deposit
