Multi Channel Dry Fluorescence Immuno Analyzer 1080p LAN Network
ZOS-F2100(Multi-Channel)
parameter
| CPU: | i MX6 |
| Resolution ratio | 1080p |
| Hard disk space | 8GB |
| Memory | 1GB |
| Network conditions | Network port |
| Network operation environment | LAN network |
| Printing system | Built in thermal printer |
| Data processing | Support LIS connection transfer test results and data import |
| Excitation light source | LED |
| Sample type | Whole blood, serum, plasma and urine |
| Sample management | Automatically identify test items. Timely output and transmission of test results |
| Power parameters | Host input——24V,9.2A;Adapter input——AC 220V,50Hz |
| Input power | 220V |
| Number of tests | 20 channels (support multi project simultaneous test, independent timing) |
Simple operation instructions

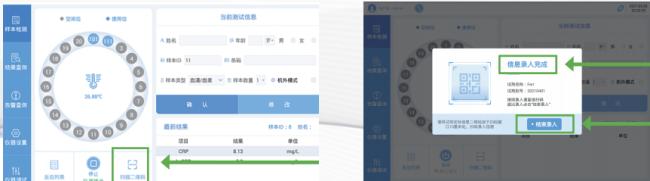

1. Click "scan QR code" and align the QR code card with the QR code scanner (about 10 cm) to read the project information The interface prompts "information entry completed", and click "end entry".
matters needing attention:
(1) Different projects, two-dimensional code card can not cross scan.
(2) The same project, different batches, two-dimensional code card can not cross scan.

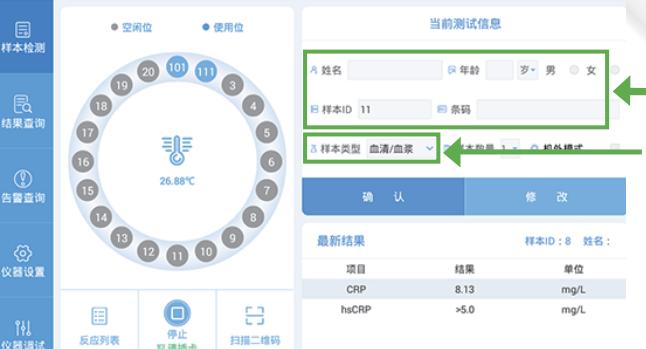

2. Input the information of the tested person, select the sample type and click "confirm"
External mode: refers to the test sample reagent card after the completion of the external incubation, to be incubated After that, put the reagent card into the instrument to analyze the sample results.

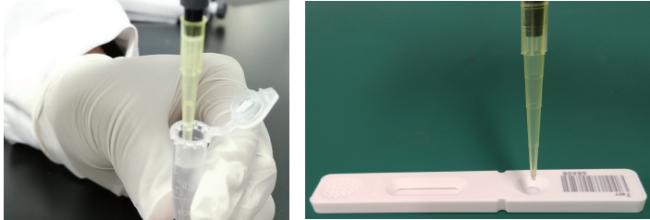

3. Sample addition: absorb the sample, add it to the buffer, and mix well.
Add the mixed sample to the reagent card with the sampling gun according to the reagent instructions.

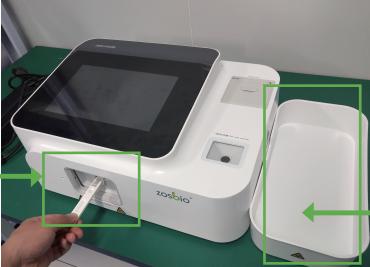

4. Test: put the reagent card into the reagent bayonet of the instrument, and the instrument will automatically identify the test items and conduct the countdown test.
matters needing attention:
(1) Make sure the reagent card is in place.
(2) When the cabin door is closed, do not add samples or test.
(3) When the countdown of a channel on the instrument interface is less than 20 seconds, do not add samples or test.
(4) Do not attempt to prevent the door from closing.
(5) Clean the reagent card in the waste box in time to prevent the instrument from losing the card normally
Product features
| Large capacitance touch screen, 10.1 inch full touch screen, sensitive control, easy operation |
| Rich peripheral interface can connect his / LIS and external printer. |
| Automatic identification of items automatic acquisition of reagent test items |
| Better user experience of smart Android system |
| Results automatic printing, built-in thermal printer, automatic printing results |
| Scan code to input calibration information automatically, QR code input is convenient and fast |
| Waste card centralized processing, original waste card processing warehouse, clean and convenient |
| Up to 20 test channels are used for batch test and continuous detection. All channels support emergency measurement |
| In the outdoor mode, enter the machine to test for 5 seconds and get the results. The fastest incubation time in the machine is 3 minutes |
| The detection accuracy of 24 bit signal acquisition chip of patent optical detection system is greatly improved |
| Built in super stable incubation and detection system, completely solve the result deviation caused by temperature difference |
