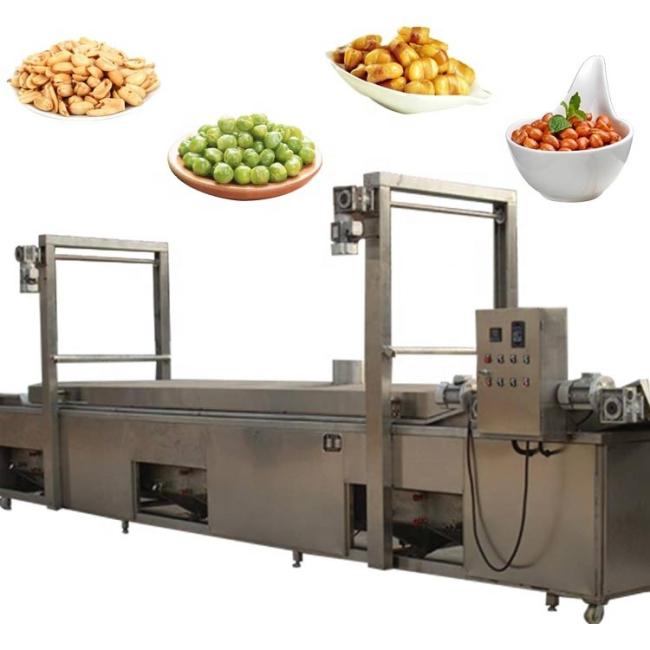

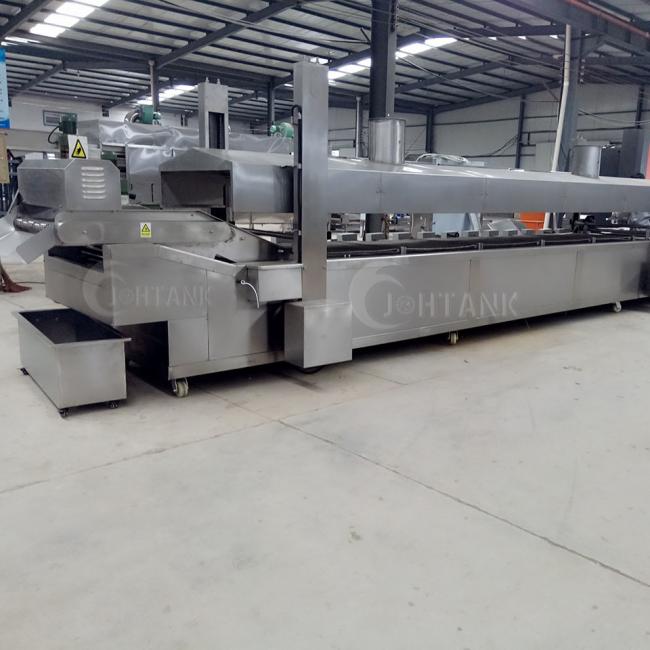

Meatballs Chicken Double Belt Continuous Frying Machine Sus304 1000kg/H
Ce Meatballs Chiecken Double Belts Continuous Frying Machine Sus304 Gas Heating Fryer 1000kg/H
Continous frying machine features:
1. The body and mesh belt of the continuous frying machine are made of 304 stainless steel, which is of high quality, durable and safe.
2. All electric machinery adopt NRV motor with CE certification standard, which has low failure rate, convenient control and high efficiency.

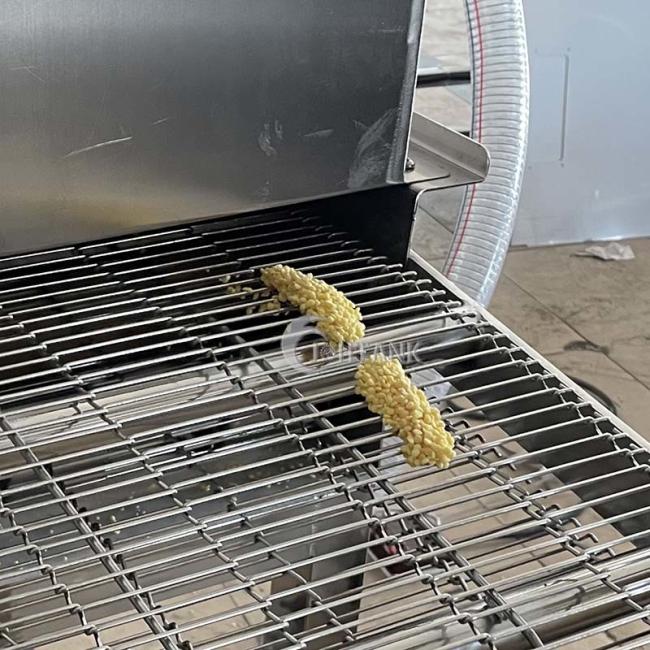

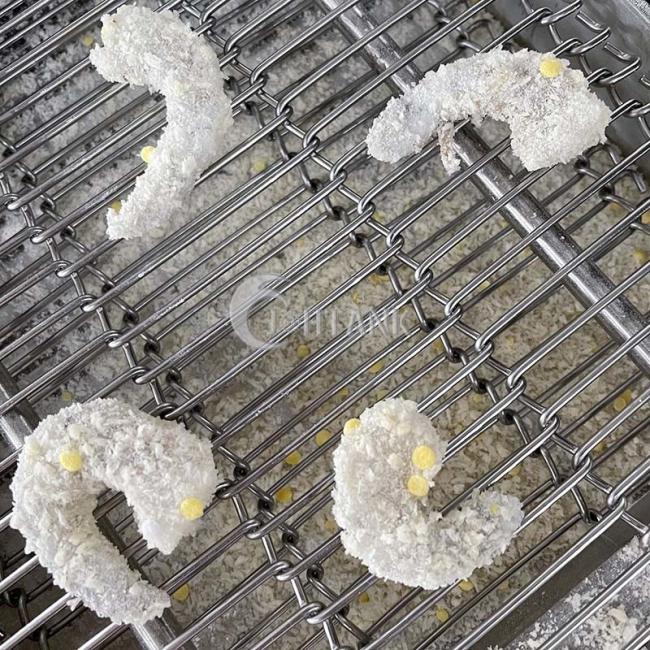

3. The mesh belt of the continuous fryer is designed with double-layer mesh belt. Food is in the middle of the two-layer mesh belt. The lower mesh belt plays the role of conveying products. The upper mesh belt can control the products in frying oil, avoid floating phenomenon and improve the quality of frying products. The width of the mesh belt and the space between the upper and lower mesh belt can be customized according to the product.
4. The oil temperature of the continuous frying machine fryer industrial potato chips frying machine is controlled by automatic temperature control system. The oil temperature can be adjusted between 0 and 300 degrees Celsius. After setting the required frying temperature, there is no need for manual control. The frying machine automatically opens the heating and insulation state, which reduces the worker's labor and avoids the drawbacks of artificial temperature control.
5. The residue produced in the frying process can be discharged through the drain valve at the bottom. One side of the fryer is equipped with glass windows, which can observe the change of water level at any time.
Continous frying machine Application:
Snack food :potato chips banana chips french fries puff snack broad beans ect.
Meat: meatballs Chicken breast chicken legs ect.
The continuous frying machine includes:
| Number | part | function |

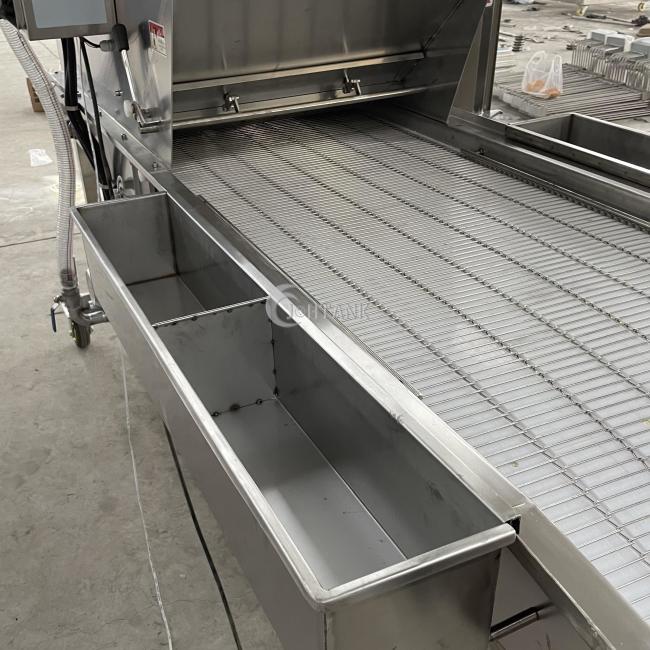

| 1 | Feeding inlet | The product enters the frying area through the feeding inlet |
| 2 | frying zone | The products are fried in this area. |
| 3 | mesh belt | double mesh belt,The lower mesh belt is used to transport the fried products, and the upper mesh belt is used to control the fried products in the frying oil. |
| 4 | burn | The burner makes the fuel and air fully burnt, provides heat energy, and heats the frying oil. |
| 5 | control cabinet | It adopts button operation, which is easy for workers to manipulate the fryer flexibly. |
| 6 | hoisting system | Used for lifting the body and cover of fryer to facilitate cleaning and maintenance of fryer. |
| 7 | smoke vent | Discharge the waste smoke produced in the combustion process of natural gas or LPG. |

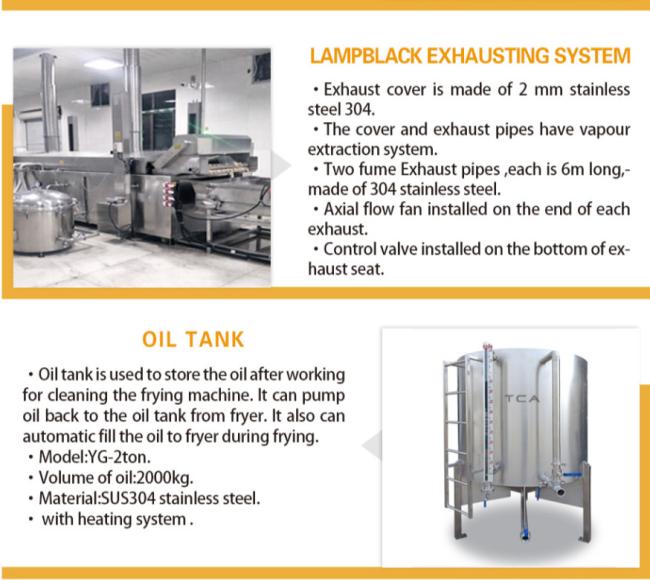

| 8 | lampblack outlet | It can discharge the oil fume in time and effectively to ensure the clean and hygienic frying environment. |
| 9 | heat-insulation system | Reducing Heat Loss and Improving Energy Utilization |
| 10 | discharging outlet |
When the product is fried, the product is transported out from the discharging outlet. |

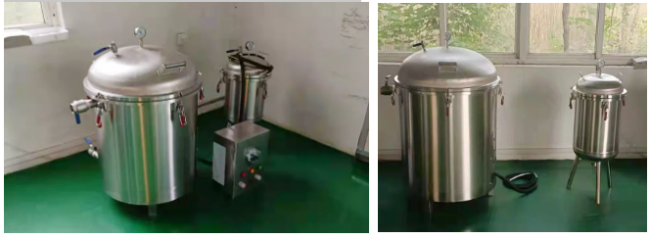

Supporting equipment: vacuum oil filter(optional)

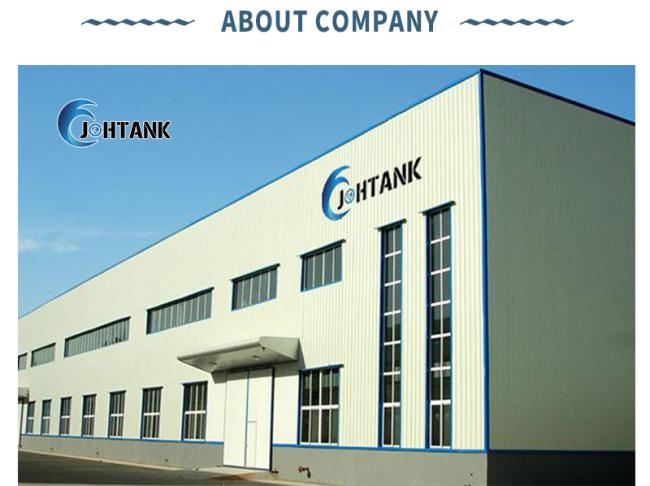

JOHTANK (SHANDONG) FOOD MACHINERY CO.LTD is located in zhucheng, SHANDONG province, which is also known as the land of dinosaurs.The company has 13000 square meters of factory buildings and 70 employees.Our company's main products include Frying machine, photochips and frozen french fries processing equipment, fruit & vegetable washing machine,large-scale hot air drying machine and packaging machine.With 10 years of export experience, our products are exported to America, Europe, Africa, Southeast Asia and other countries and regions. With excellent technology, sophi sticated processing and testing equipment, reliable manufacturing quality, strict quality assurance system and more perfect after-sales service, has won more and more customers.
