high definition quartz stone color sorting machine
Ore color separating machine is widely used for ore producer to classify and purify ore stone, mineral slag, quartz chip or sand, remove black or other impurity throught color difference. It is designed for ore manufacturer with high production capacity. Color sorting machine is also used to grade ore stone, such as calcium carbonate,fluorite,potash feldspar,albite granules and etc,(size range 5cm-120mesh) for it is installed colorful CCD camera with high definition and accuracy.

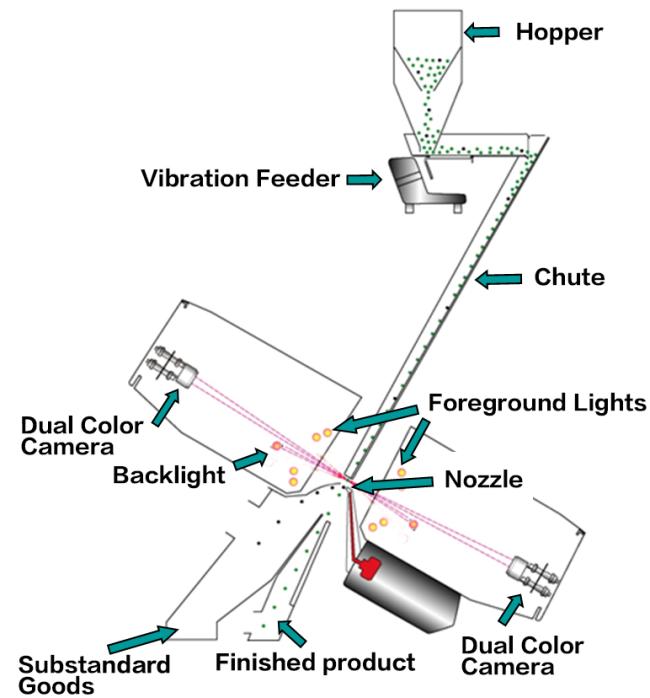

Working principle of ore stone mineral color sorter:

Ore stone mineral color separator can separate bad material of quartz sand and other ore by slightly color difference, color sorter machine can also used to classify materials, remove impurity, recently shape sorting is also used for ore classification.
High speed CCD camera scans objects that fall from vibrating chutes, ejectors will blow away the material with different color through compressed air, optimized algorithm is the core technology of color sorter machine, our machine can also reject material by only the photo, it is so efficient for changeover.

Technical Parameter

Sorting Material



Core advantage
1. 10K Nikon CCD camera with high definition, sorting accuracy up to 0.01mm², customized lens to achieve clear image without distortion
2. USA chip, ARM+ FPGA, powerful hardware with intelligent algorithm.
3. Durable LED system satisfy requirements of different color identification,separation and classification.
4. Synchronization system makes the adjustment work into ONE BUTTON OPERATION, rejection by photo is available.
5. Ejectors longer has longer lifetime, lower air consumption, faster speed, easier maintenance and high sorting accuracy.
6. Wider chute up to 332mm makes increase production capacity.
7. Self-checking system makes the machine can check the ejectors, cameras, control boards and background boards automatically.
8. No wearing parts(except mine stone color sorter) makes 0 maintenance cost.
