Customized Coffee Color Sorter For Different Sizes
Price:
Negotiable
MOQ:
1
Delivery Time:
7-15 business days
Brand:
DREAM PLUS
Product Description
Customized Coffee Color Sorter For Different Sizes
Name: 6SXM-64J1/80J1/96JM1-768JM10
Voltage(v): AC220V/50Hz
Power(Kw): ≤1.5-5.5
Capacity: 0.3~6.0T/h(±2%)
Weight(Kg): 350-2200(±5%)
Optimized carryover: ≥8:1
Dimension(L*W*H mm): 955*1630*1550-3900*1630*2030
Core Tech: Camera/5th Intel FPGA/Smart cloud service
Warranty: 1 year
Accuracy: 99.9%
Processing
Dream Plus Smart Color Sorter with coffee is a process of sorting coffee bean. Putting the coffee bean into the Hopper at first. Secondly, accessing to the Vibratory feeder and UV chutes. Then, sorting coffee bean by Light source and Sensor. Therefor, accepted products will be into one entrance, or defective slot will be lauched by Signal processor and Ejectors (according to Air compressed).
Product Parameters
| Model | Capacity(T/h) | Power(Kw) | Channel | Weight(Kgs) | Dimension(mm) |
|---|---|---|---|---|---|
| 6SXM-64J1 | 0.3-0.5(±2%) | ≤1.5 | 64 | 350 | 955*1630*1550 |
| 6SXM-80J1 | 0.3-2.0(±2%) | ≤1.8 | 80 | 500 | 1045*1630*1550 |
| 6SXM-96JM1 | 0.4-0.8(±2%) | ≤2.0 | 96 | 500 | 1045*1630*1550 |
| 6SXM-160JM2 | 0.5-1.0(±2%) | ≤2.1 | 160 | 600 | 1330*1630*1550 |
| 6SXM-192JM3 | 0.6-1.2(±2%) | ≤2.6 | 192 | 940 | 1700*1630*2030 |
| 6SXM-256JM4 | 0.8-1.5(±2%) | ≤2.8 | 256 | 1300 | 2015*1630*2030 |
| 6SXM-320JM5 | 1.0-2.0(±2%) | ≤3.0 | 320 | 1360 | 2330*1630*2030 |
| 6SXM-384JM6 | 2.0-3.0(±2%) | ≤3.6 | 384 | 1420 | 2650*1630*2030 |
| 6SXM-448JM7 | 3.0-4.0(±2%) | ≤4.0 | 448 | 1620 | 2980*1630*2030 |
| 6SXM-512JM8 | 4.0-5.0(±2%) | ≤4.6 | 512 | 1800 | 3280*1630*2030 |
| 6SXM-640JM10 | 5.0-6.0(±2%) | ≤5.5 | 640 | 2020 | 3900*1630*2030 |
Example

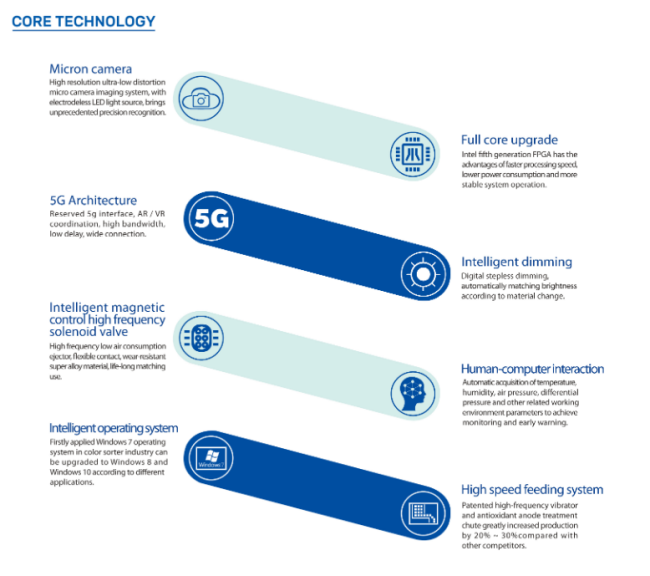

Smart Color Sorter can sort many different types of coffee bean. We have the Innovation Tech which is Intelligent sorting, Intelligent Cloud services(optional), Intelligent Cloud monitor(optional) and Multi-function. Also, we have the core tech that s Micron camera, 5G strcutre, Intelligent magnetice control high frequency solenoid valve, Intelligent operationg system, full core upgrade, Intelligent dimming, Human-computer interaction and High speed feeding system.
Power system
1. High-precision 5400 pixel high-speed line scan CCD, high-fidelity identifyinh and high speed sorting.
2. Multifunctional and intelligent software operation platform; flexible sorting modes setting available for different raw material at user's disposal; automatic memory function for the set mode;simple and easy to operate.
3. High-brightness and long-service-life LED light, durable and stable; better color sorting effect.
4. Processing system based on the frontier CCD technology.
5. Accurately identify the discolor area within 0.0025 mm2; set the inspection area according to different requirements of different material sorting precisions.
Customer service
1. A full range of customer consulting services before ordering and good after-sales service.
2. 7*24 hour on-line and door-to-door service.
3. 7-15 business day perparring and arrive on time.
4. Full miantenance and transparency.
5. Strict acceptance and the implementation of tracking service.
