Blue Sea Replacement MIDI Automotive Fuse Block For 498 ANS SBFW-L Fork Bolt Fuse
Price:
1.5~2USD
MOQ:
500pcs
Delivery Time:
3 workdays
Brand:
AMPFORT
Product Description
Blue Sea Replacement MIDI Automotive Fuse Block ANS-H For 498 ANS SBFW-L Fork Bolt Fuse
Features Of The MIDI Automotive Fuse Block
- Electrical :MAX 200A 60V dc
- Application temperatures: -40℃ to +125℃
- Fuse Mounting:M5 Threaded Stud and Hex Nuts
- Torque Requirements:M5 Nut 4.5 ± 1Newton meters
- Material :Stainless steel
- Insulator material:Nylon PA66
- Dimensionless Units:mm
- Dimension Tolerance:±0.25
ANS Fuse Specification Of The MIDI Automotive Fuse Block
| P/N | Current(A) | Voltage drop(mV) | Cold resistance(mΩ) | I²t |
| ANS-030-C | 30 | 65 | 2.06 | 4200 |
| ANS-040-C | 40 | 65 | 1.39 | 10000 |
| ANS-050-C | 50 | 65 | 1.025 | 13000 |
| ANS-060-C | 60 | 65 | 0.856 | 21500 |
| ANS-070-C | 70 | 68 | 0.712 | 24000 |
| ANS-080-C | 80 | 58 | 0.535 | 25700 |
| ANS-100-C | 100 | 60 | 0.451 | 51200 |
| ANS-125-C | 125 | 71 | 0.392 | 73100 |
| ANS-150-C | 150 | 71 | 0.322 | 82000 |
| ANS-175-C | 175 | 71 | 0.283 | 100000 |
| ANS-200-C | 200 | 71 | 0.261 | 125000 |
| Melting time | |||||
| % of rated current | 30A~125A | 150A~200A | |||
| Min | Max | Min | Max | ||
| 100 | 100H | / | 100H | / | |
| 110 | 4H | / | / | / | |
| 150 | 90s | 3600s | / | / | |
| 200 | 0.3s | 100s | 1s | 15s | |
| 300 | 0.3s | 3s | 0.3s | 1.5s | |

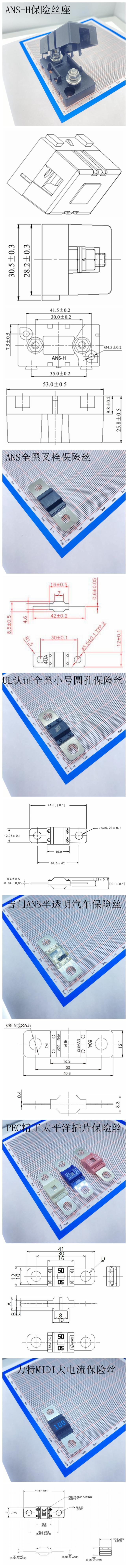

Dimension Of The MIDI Automotive Fuse Block
