Description
The MYE series are heavy-duty metal oxide varistors designed mainly for industrial applications. They offer excellent surge protection for various electronic equipment such as: traffic and railway signal systems, communication equipment, waterworks, automatic control devices for power distribution, oil drilling and mining equipment (dredgers, cranes, etc.). The “MYE” housing offers excellent protection when exposed to different kinds of vibrations, dust, moisture, etc. The advantages of the MYE Series are: rigid terminals for secure wire contact, solid plastic housing for secure mounting, higher insulation resistance (plastic housing with polyurethane filling).
Electrical parameters
| Varistor voltage (V1mA) | 1800V |
| Max. continuous operating voltage | 1000VAC,1400VDC |
| Rated power | 1.5W |
| Max. clamping voltage (8/20μs) | Vc:2940V , Ic:500A |
| Surge current (1×8/20μs) | 70KA |
| Max. energy | 3800J |
| Typical capacitance | 2200pF |
| Leakage current | not more than 40uA |
| Operating temperature | -40~+85C |
| Storage temperature | -55 ~ +125C |
Photos

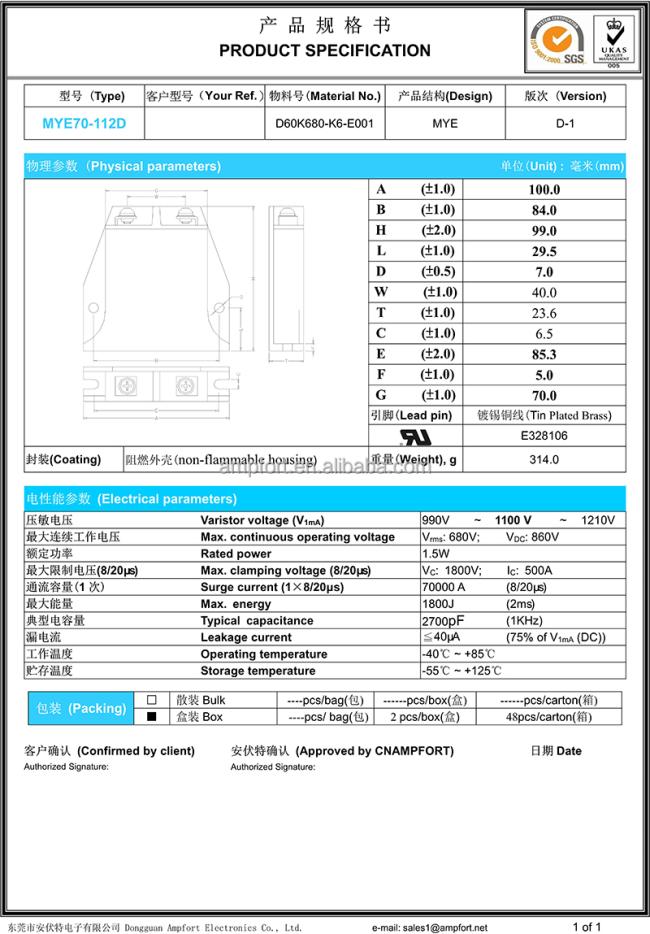

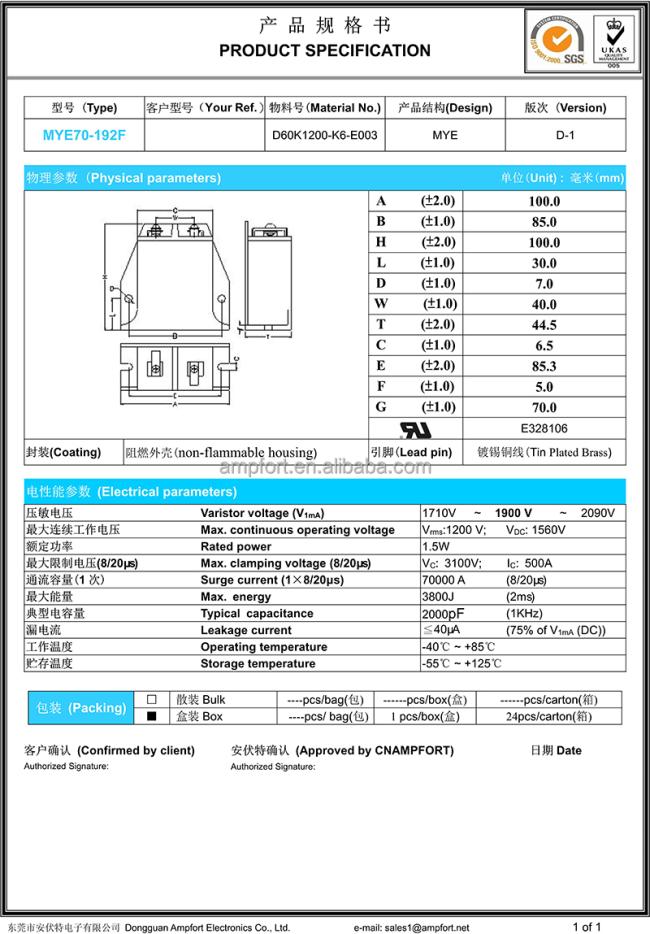

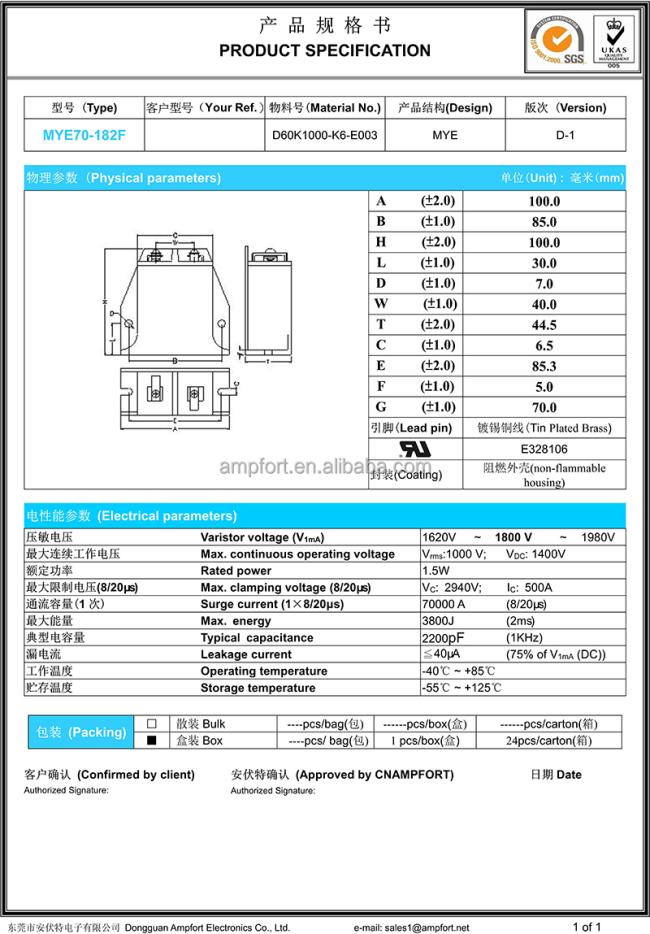

Specification
