PCB Mount Fuse Holder 1530007 MINI Blade Fuse Holder SL-1537 for 297 Fuse
PCB Fuse Holder 1530007 MINI Blade Fuse Holder SL-1537 for 297 Fuse
01530007Z EQUIVALENT ACS FUSEHLDR HORIZONTAL MT | Series: MINI - 153-PC
The MINI 153-PC Series 32V PCB Fuse Holder lets you easily mount a MINI blade-style fuse on a printed circuit board. It's designed with a circuit board locking anchor to ensure secure attachment to the PCB, and it has standoffs, which accommodate circuit board washing. The heat-resistant thermoplastic body carries a UL 94 V-0 flammability rating, making the fuse holder ideal for automotive PCB applications, such as protecting circuits for vehicle control systems, navigation and entertainment systems, and automotive sensors. This MINI 153-PC Series PCB fuse holder (01530007Z) features a horizontal mounting style.
| Applicable | For MINI blade fuse |
| Electrical | Rated for current up to 15A 32VAC |
| Insulating Base body | PA + 30%GP |
| Contact | Brass with Tin plated |
Features
- Horizontal mounting style
- Designed to allow installation of reliable and widelyavailable 32V MINI blade-style fuses (sold separately) upto 20 amps on a printed circuit board
- Standoffs accommodate circuit board washing
- Circuit board locking anchor ensures a secure mechanicalbond with the PCB
- Thermoplastic UL 94 V-0 rated body is heat-resistant
- PCB fuse holder clip is made from copper alloy with a tinplated finish for corrosion resistance
- Available in horizontal, stackable vertical, and single vertical(end unit) mounting styles
Applications
- Automotive PCB Fusing
- forautomotive PCB applications, such as protecting circuitsfor vehicle control systems, navigation and entertainmentsystems, and automotive sensors
Specification

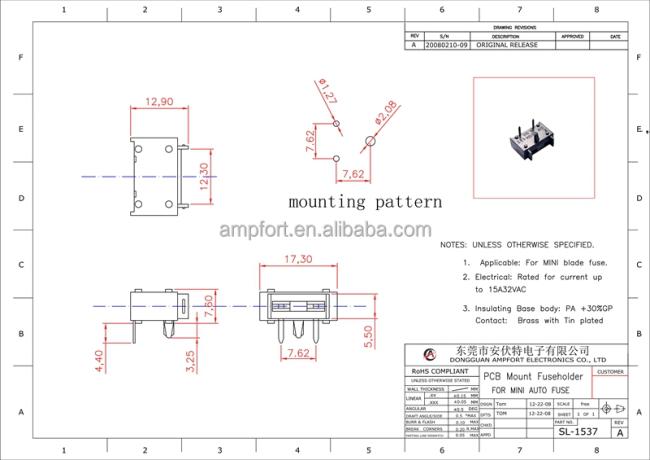

| Name | MINI BLADE FUSE HOLDER |
| P/N | SL-1537/153 |
| RATED VOLTAGE | 125V MAX |
| RATED CURRENT | 15A |
| HOUSING | PA |
| PART NUMBER | DESCRIPTION | CURRENT RATING MAX | FUSE TYPE | MOUNTING METHOD | MAX VOLTAGE RATING | ||||||||||||||
| 01530007Z | ACS Fuse Holder Horizontal Mount | 20 Amps | MINI (297) | PC Horizontal Mount | 32V | ||||||||||||||
| 01530008Z | ACS Fuse Holder Vertical Mount | 20 Amps | MINI (297) | PC Vertical Mount | 32V | ||||||||||||||
| 01530009Z | ACS Fuse Holder Vertical Mount | 20 Amps | MINI (297) | PC Vertical Mount | 32V | ||||||||||||||
| 01530008LXN | Fuse Holder B-P.C.-Board Vertical / Packed 50 | 20 Amps | MINI (297) | PC Vertical Mount | 32V | ||||||||||||||
