KSD301 Bimetal Thermostat 180C 356F 10A Normally Closed N.C. Snap Disc Temperature Switch for Microwaves Oven Coffee Maker
KSD301 Bimetal Thermostat 180C 356F 10A Normally Closed N.C. Snap Disc Temperature Switch for Microwaves Oven Coffee Maker
Description
KSD301 series snap-action bimetal thermostat is a kind of miniature hermetically sealed bimetal thermostat(1/2" disc). It is of single-pole single-throw structure and works under resistive load. KSD301 bimetal thermostat is in wide use in a great variety of compact type home appliances with automatic reset or manual reset toprovide temperature control or temperature protection.
Specification
| Action temp | 180C |
| Tolerance | +/-5C |
| Rated current | 10A |
| Rated voltage | 250V |
| Contact type | Normal closed |
| Name | Bimetal Thermostat |

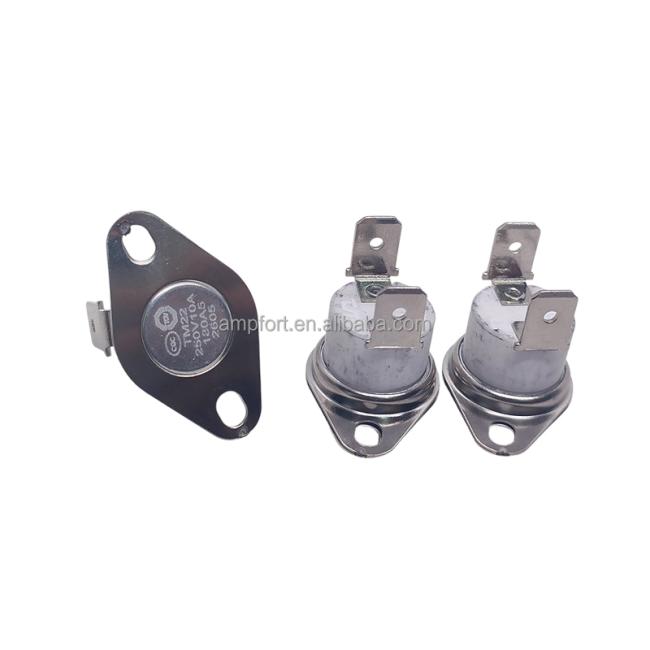

Photos
Features
Type: KSD301 180 degrees Celsius Thermal Control Switch 110V/120V/250V 10A NC (Normal Close), 6.3mm pin
Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature 180 Celsius degree
Advantage: Double metal chip, speed dynamic type, sensitive, reliable, stable action temperature, long service life, no arc phenomenon.
Easy to installation : The flange on the switch is float and easy to installation.The pin width is 6.3mm
Application: Mainly used for microwave,oven,coffee maker,Speed Cook oven,heater,Dryer,gas furnace,Bath Vent/Heater,wall heater,motor electric heating water dispenser, water bottles, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater, motor cleaner
Technical Parameters:
- Rated Current: 5A/10A/16A (Resistive)
- Reset Type: Automatic/Manual
- Max OT: Resin:180°C/ Ceramic:220°C
- Resistance Between Terminals: Below 50mΩ
- Insulation Resistance: With a DC 500V megger, borne DC 500V, the tested value is over 10mΩ
- Class of Temperature Characteristics: Normal Type/Normal Close: OFF temperature higher than ON temperature K Type/Normal Open: ON temperature higher than OFF temperature One-shot type: The thermostat switches on at room temperature and it won't be able to reset after switching off Manual Reset
- Maximum Ambient Temp: ambient temperature Resin: 205°C (Long period) /235°C (Less than 15 min) Ceramic: 280°C (Long period) / 310°C (Less than 15 min)
Applications:
- Coffee maker- Toaster- Microwave oven- Heating- Portable Refrigerator- Water dispenser- Electric pad- Portable freezer
