Din Rail Insert 1500VDC Solar PV Fuse Holder Box Block for 10x65mm Cartridge Fuse 2-35A

Din Rail Insert 1500VDC Solar PV Fuse Holder Box Block for 10x65mm Cartridge Fuse 2-35A

What Points Does Solar Fuse Protection Help Solve?
Below are the common points that Solar Fuse Protection is expected to solve in real projects:
- Overcurrent damage: PV strings can experience abnormal current caused by reverse current, short circuits, wiring faults, or
proper fuse helps interrupt that current before nearby components are damaged.
- High-voltage DC arc risk: Modern PV systems often operate at high DC voltage. If the fuse cannot safely break the circuit, d
continue after the fault begins.
- Combiner box protection: Dense combiner box designs require compact, reliable fuses that protect each string without was
increasing heat buildup.

- Specification uncertainty: Many buyers struggle to match voltage, current, size, breaking capacity, fuse holder compatibility
requirements in one product.

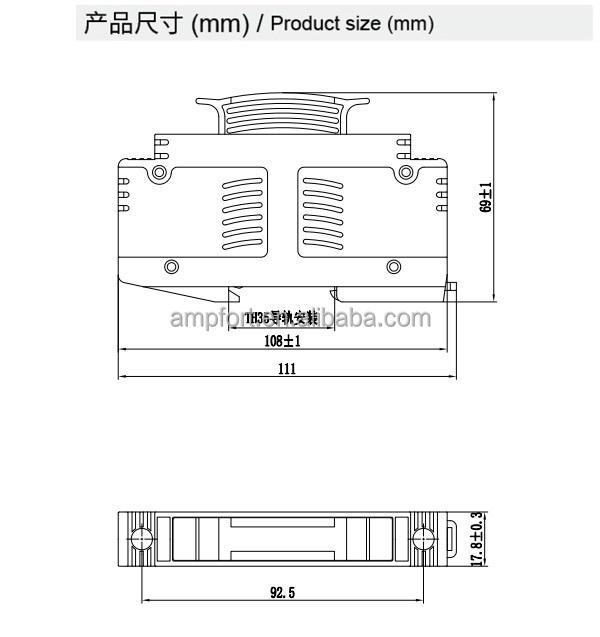

Size

Features

- Rated voltage: 1500VDC

- Rated current: 35A
- Housing material: Nylon
- Operating temperature range: -40°C to 120°C
- Enclosure flame retardant rating: UL94-V0
- Complies with UL4248-19, IEC60269-6, EN60947-3
- Rail specifications for assembly: TH35-7.5

- TUV certified
- Torque for terminal screws: 2.5N·m to 3N·m
- Conductor cross-sectional area: 2.5 to 16mm² (14 to 6AWG)
1065FH is a card mounted base designed based on 10 * 65, used in conjunction with TH35-7.5 mounting rails. It has the characteristics of small size, high strength, and high flame retardancy, and can be used in conjunction with a fuse core to protect and isolate photovoltaic modules or arrays, as well as chemical energy (livestock) batteries. Corresponding connecting shafts can be configured for multi-stage parallel use according to actual needs.
