NTC Thermistor 120D-15 Thermal Resistor 120D15 120 Ohm 15mm 1.8A Inrush Current Limiter for UPS Power Supply
NTC Thermistor 120D-15 Thermal Resistor 120D15 120 Ohm 15mm 1.8A Inrush Current Limiter for UPS Power Supply
1. Application scope
- Server and communication power supplies.
- UPS and backup power systems.
- High-power LED lighting circuits.
- Industrial and commercial lighting drivers.
- Inverters.
- High-power AC/DC converter systems.
- Industrial control power supplies.
- Power tools and portable charging equipment.
- Professional high-power audio amplifiers.
2. Features
- Small size, high power, strong ability to suppress surge current.
- Fast response speed.
- Material constant (B value) is large and residual resistance is small.
- Long life and high reliability.
- Complete series, wide application range.
3. Installation method:
a) For use, use general soldering method for installation.
b) For vibration and impact tests, the leads are fixed, and the fixed point is 6±1 mm away from the resistor body.
Size
| Dim (mm) | DMAX | TMAX | d±0.05 | F1±1 | Straight lead | Curved lead | |
| LMIN | L1MIN | L2±2 | |||||
| MF72 D5 | 6 | 5 | 0.45/0.6 | 5/2.5 | 25 | 20/5 | 5 |
| MF72 D7 | 8 | 5 | 0.6 | 5 | 25 | 20/5 | 5 |
| MF72 D9 | 10 | 5.5 | 0.8/0.6 | 7.5/5 | 25 | 20/5 | 5 |
| MF72 D11 | 12 | 5.5 | 0.8 | 7.5/5 | 25 | 20/5 | 5 |
| MF72 D13 | 14 | 6 | 0.8 | 7.5/5 | 25 | 20/5 | 5 |
| MF72 D15 | 17.5 | 6 | 0.8 | 10/7.5 | 25 | 20/5 | 5 |
| MF72 D20 | 21 | 7 | 1.0 | 10/7.5 | 25 | / | / |
| MF72 D25 | 27.5 | 8 | 1.0 | 10/7.5 | 25 | / | / |

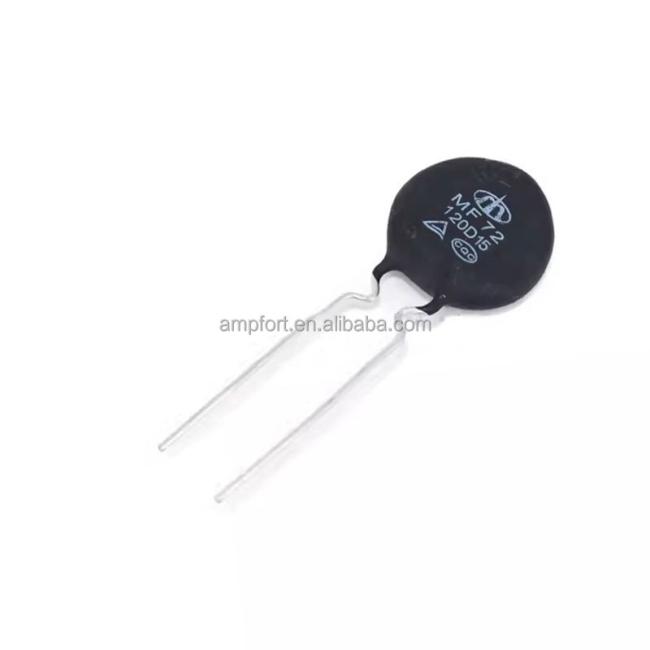

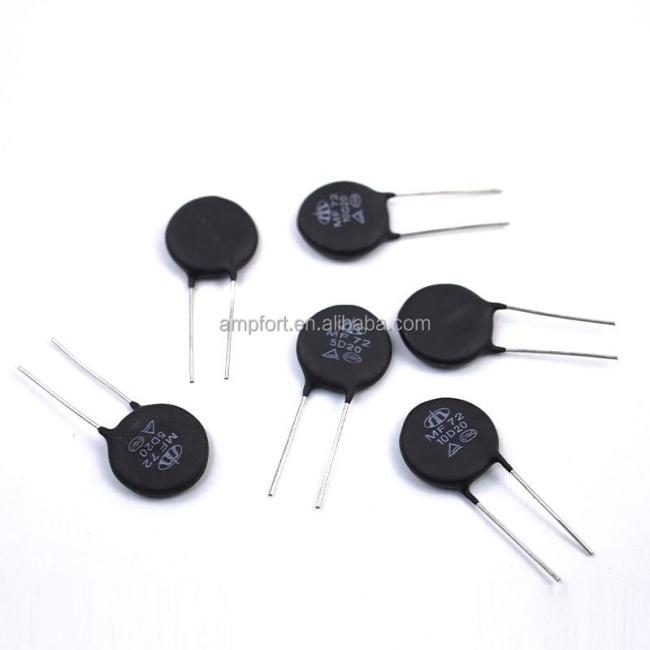

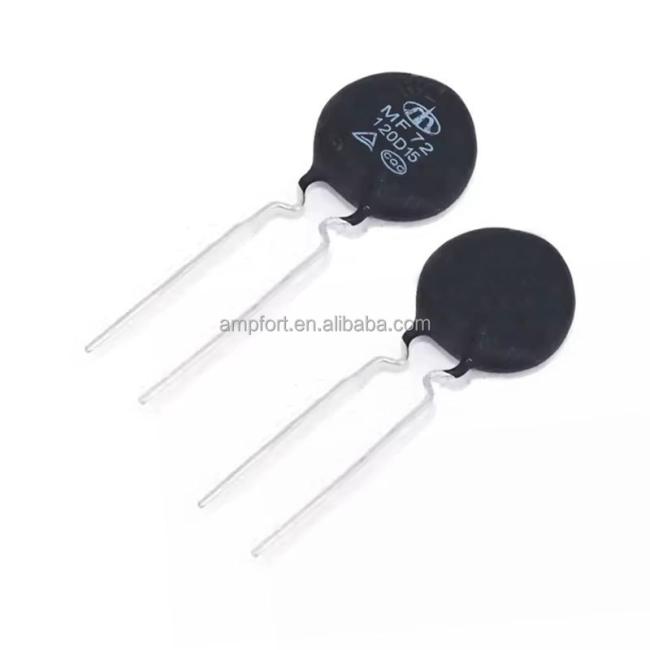

Photos
