Description

TMOV temperature fuse varistor is a type of varistor with over temperature cut-off functions. A temperature fuse is connected with MOV in series. When the operating current increasing continuously or MOV failure, the temperature fuse will be cut-off because it's over the limit. It makes the current to MOV cut-off, and the temperature of MOV would not increase further, thereby prevent from fires caused by MOV failure. It adopts standard leads as outlet terminals. very suitable to be installed on PCBs. TMOV zinc oxide varistor can be widely used in computer switching power supply, Power socket, UPS, telecommunication, network, railway, etc..

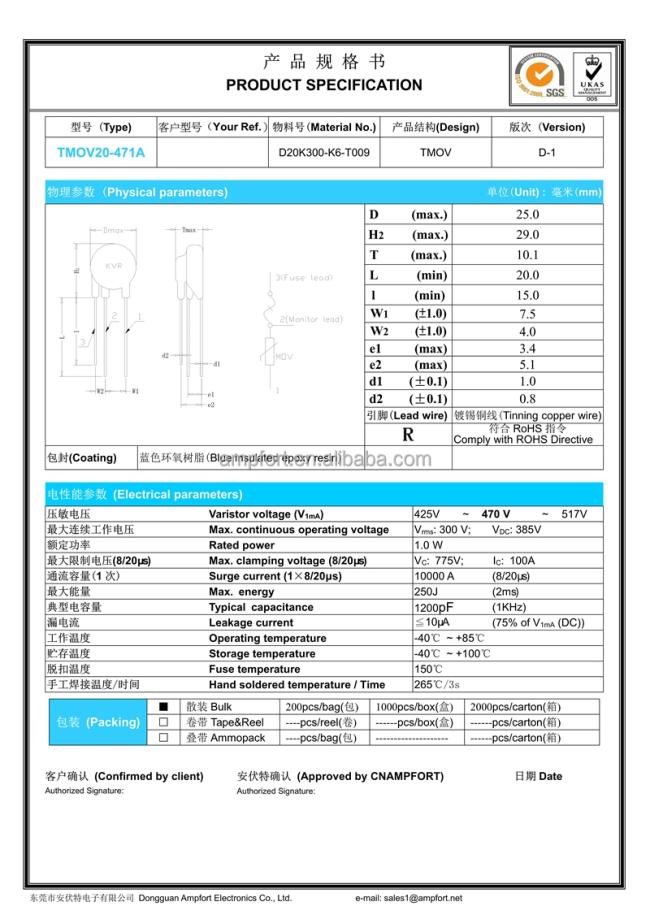

Specifications

Application

- SPD Products

- AC Panel Protection Modules

- AC Line Power Supplies

- Surge ProtectedStrip Connectors

- AC Power Meters

- Relocatable AC Power Taps

- GFCI (Ground FaultCurrent Interupter)

- UPS (UninterruptablePower Supply)

- White Goods

- Plug-in SPD

- Inverters

- AC/DC Power Supplies

Features & Benefits

- RoHS compliant HalogenFree and Lead–free available

- Designed to facilitatecompliance to UL1449for SPD products

- High peak surge currentrating up to 10kA

- Wave solderable

- Standard lead formand spacing option

- -55°C to +85°C operatingtemp range

- Three-lead version availablefor indication purposes

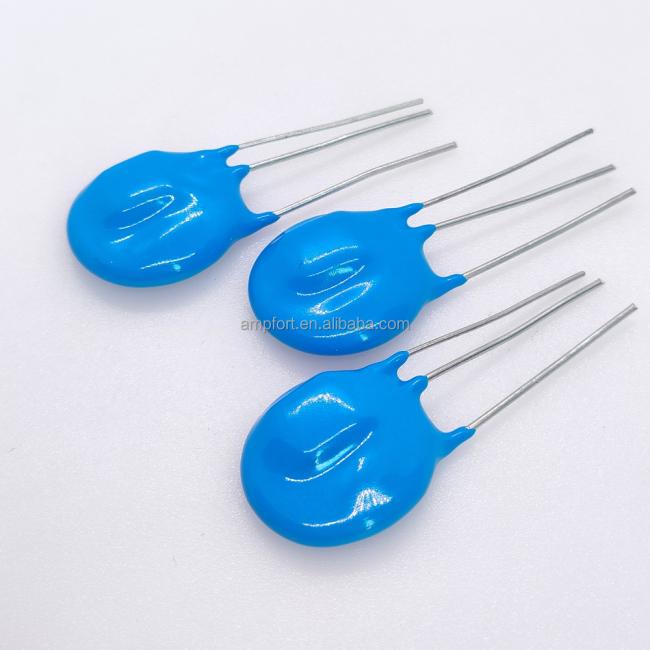

Product Photos
