Radial Leaded Glass NTC Thermistor 100K 3950 For Air Conditioner
Super Fast Response High Temp Radial Leaded Glass NTC Thermistor 100K 3950 For Air-Conditioner
Description Of The Radial Leaded Glass NTC Thermistor 100K 3950
MF51 single-ended glass-encapsulated NTC thermistor adopts radial lead single-ended glass-encapsulated NTC thermistor, and there is another MF58 diode glass-encapsulated NTC thermistor. MF51 radial lead glass package NTC thermistor has the characteristics of small size, very short response time, heat resistance and high stability. The temperature measurement range is -40C to +300C. It is widely used in temperature measurement, detection, indication, monitoring, measurement, control, calibration and compensation, etc.
Applications Of The Radial Leaded Glass NTC Thermistor 100K 3950
* Air conditioning systems
* Heating Apparatus
* Refrigeration control
* Sensor for engine temperature control
* Electric Thermometer
* Liquid level sensor
* Hot water boiler systems
* Automoblie electronic
* In environments where thermal shock and humidity are present
* Electric table-board
* Assembly into probes for a wide variety of applications
Features Of The Radial Leaded Glass NTC Thermistor 100K 3950
* Hermetically sealed glass package
* Good quality of coherence and interchange
* Super Fast time response
* High temperature
* High testing precision

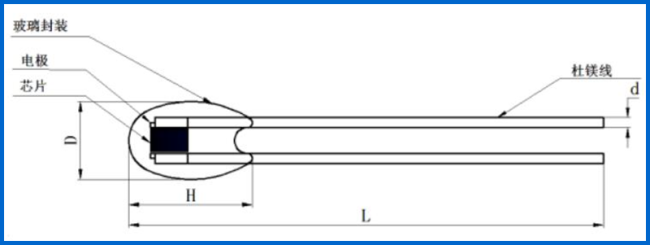

Dimension Of The Radial Leaded Glass NTC Thermistor 100K 3950 (mm)
| Part No | D | H | L | d |
| NF51-A | 2.0±0.2 | 3.8±0.5 | 6.5±2.5 | 0.3±0.2 |
| NF51-B | 1.6±0.2 | 3.2±0.5 | 6.5±2.5 | 0.25±0.02 |
| NF51-C | 1.2±0.2 | 2.4±0.5 | 6.5±2.5 | 0.2±0.02 |
Specification Of The Radial Leaded Glass NTC Thermistor 100K 3950
| Part No | Dissi. Coef (mw/*C) | Thermal time Constant (S) | Max. Pwer dissipation at 25 °C Pmax(mW) |
| MF51-A | Approx. 1.4 | Approx. 14 | 50 |
| MF51-B | Approx. 0.9 | Approx. 7 | 35 |
| MF51-C | Approx. 0.75 | Approx. 5 | 15 |
|
Part No |
Rated. Resistance R |
B Value (25/85℃ ) |
|||
|
R25(KΩ) |
Tolerance |
K |
Tolerance |
||
|
Regular P/N |
MF51口口口3435 |
2～10 |
±1% ±2% ±3% ±5% |
3435 |
±1% ±2% |
|
MF51 口口口3450 |
2～10 |
3450 |
|||
|
MF51 □□□3750 |
8～IO |
3750 |
|||
|
MF51 □□□3950 |
10～50 |
3950 |
|||
|
MF51 □□□4150 |
50～100 |
4150 |
|||
|
MF51 □□□4200 |
100～350 |
4200 |
|||
|
MF51 □□□4350 |
870～980 |
4350 |
|||
|
MF51口口口445() |
1000～1500 |
4450 |
|||
|
Special P/N |
MF51口2.186K口3420 |
R25=2.186 RO=6 |
±2% ±3% ±5% |
3420 (BO/100=3390) |
±1% ±2% |
|
MF51口5.369K口3480 |
R25=5.369 RO=15 |
3480(B0400=3450) |
|||
|
MF51口49.12K口3992 |
R25=49.12 R100=3.3 |
3992 (BO/100=3970) |
|||
|
MF51口98 63K口4066 |
R25=98.63 R200=0.55 |
4066 (Bl 00/200=4300) |
|||
|
MF51 □ 231.4K口4240 |
R25=231.4 R200=1 |
4240 (Bl 00/200=4537) |
|||
Reliability Data Of The Radial Leaded Glass NTC Thermistor 100K 3950
| Test | Standard | Test Conditions | ΔR25/R25 (typical) | Remarks |
|---|---|---|---|---|
| Low temperature storage | IEC 60068-2-1 | Storage at low category temperature: -30C, Time: 1000 hours | ≤2% | No visible damage |
| Storage in dry heat | IEC 60068-2-2 | Storage at upper category temperature: 200C, Time: 1000 hours | ≤2% | No visible damage |
| Storage in damp heat, steady state (Humidity test) | IEC 60068-2-3 | Temperature: 40C, Humidity:90%-95% RH, Duration: 1000 hours |
≤2% | No visible damage |
| Temperature cycling | IEC 60068-2-14 | 1. -30C/30 minutes 2. 80C/5minutes 3. 200C/30 minutes 4. 80C/5minutes. Number of cycles: 5 Cycles |
≤2% | No visible damage |
