6x32mm Fast Acting Ceramic Tube Fuses 1000V With High Breaking Capacity 1000A
6x32mm Fast Acting Ceramic Tube Fuses 2A 1000V With High Breaking Capacity 1000A
Description Of The Fast Acting Ceramic Tube Fuses
6.3 x 32mm, 2000mA 1000V ceramic fuse. Commonly used in protection circuits of digital multimeters.
Features Of The Fast Acting Ceramic Tube Fuses
* Fast Acting, high breaking capacity under 1000Vac
* 6x32mm physical size
* Special Engineering Material tube, Silver plated copper cap construction
* Designed to UL 248-14
* Lead free and Halogen free material
Electrical Characteristcs Of The Fast Acting Ceramic Tube Fuses
| Rated Current | 1.0In | 2.5In |
| 500mA~50A | 4 hours min. | 120 sec max. |

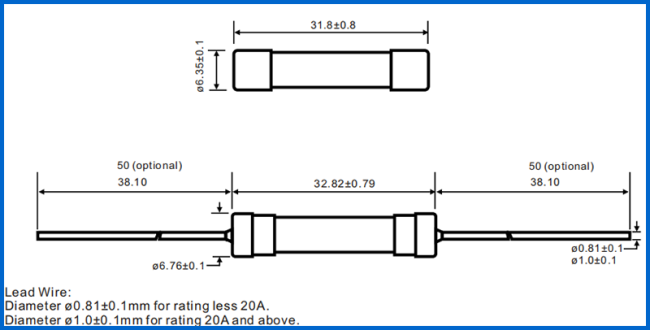

Dimensions Of The Fast Acting Ceramic Tube Fuses (Unit: mm)
Specification Of The Fast Acting Ceramic Tube Fuses
| Rated Current | Rated Voltage DC |
| 200mA | 300V 500V 600V 660V 1000V |
| 250mA | |
| 400mA | |
| 500mA | |
| 600mA | |
| 1A | |
| 1.25A | |
| 2A | |
| 2.5A | |
| 3A | |
| 3.15A | |
| 3.5A | |
| 4A | |
| 5A | |
| 6A | |
| 6.3A | |
| 8A | |
| 10A | |
| 12A | |
| 12.5A | |
| 15A | |
| 16A | |
| 20A | |
| 25A | |
| 30A | |
| 35A | |
| 40A | |
| 50A |
Recommend Products
Why should we choose ceramic tube fuse but not glass tube fuse ?
Ceramic fuses, in comparison to glass fuses, often have a higher current capacity. Ceramic fuses are popular in household applications, such as appliances. These fuses are opaque and often contain sand which is use to prevent a conductive film from forming on the fuse. Glass fuses are often the most reliable option.
