150mm Underground Solar Marker Studs 1.2V 1200MAH NI MH Battery IP68 For Traffic Safety

Price Negotiable
Price: USD14.00-16.00/PC
MOQ: 1PC
Delivery Time: 3-7days
Brand: CADSOLAR
Product Description

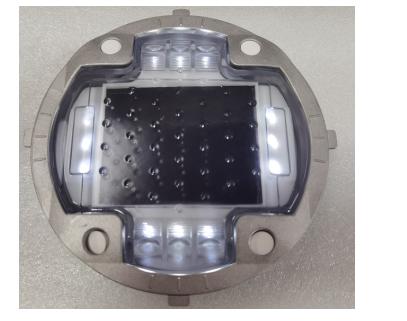

Aluminum underground solar road studs red color solar road stud



Quick Detail:



· Die-casting aluminum Shell

· Anti High-temperature

· IP68 protect

· CE approval

· 2 Years Warranty

· 50 tons weight resistance

· Good visible on foggy&rainy days

· Long lifespan





Specifications:

Model CS-SR-828
Solar Panel 2.5V/500MA mono-crystalline
Storage Components 1.2V/1200MAH High temperature NI-MH Battery
Lighting Time 100h after fully charged
Work mode Flashed for 120times per minute or Stable
LED Color Red,Yellow,Blue,Green,White
LED Qty 8PCS or 12pcs Diameter 10mm High Brightness LED
Visual Distance >1000meters
Life Span 3-5Years
Work Temperature -20℃~+80℃
Protect Level IP68,Can work under water
Material Anti-UV PC+silver coating Aluminum casing
Weight 1100g
Weight Resistance in static >50 Tons
Products Size Diamter 150mm,Height 47mm



Notices:

· 1. Open the packaging, check the products carefully, and take them gentely.

· 2. It should install it outside to get better sunshine

· 3. It should charge it and check it lighting before installation

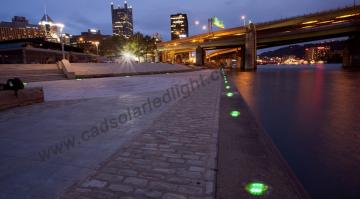

Applications:





Company information:



Shenzhen CadSolar Technology Co., Ltd, located in Shenzhen, is a hi-tech enterprise specialized in manufacturing solar& LED traffic products. With "Technology Innovation , Friendly Environment , Green Future” motto, Shenzhen CadSolar creates many solar LED traffic products step by step. After 6 years of efforts, most of our products are exported to Germany, France, Australia, New Zealand, Saudi Arabia, Dubai, Indonesia, Malaysia, Vietnam,South Africa, Kenya,Brasil, Chile etc...



4,How to install

Close the road

• Check if the solar stud charges and discharges normally
• Identify the place for installation
Drill the hole Diam.152mm with drill machine
Inject the epoxy glue or cement into the hole and take the solar road studs into the hole,

make sure the solar road studs flush with the ground.
• Wait 8 hours for glue drying before open the road



FAQ



Q1. Can I have a sample order for solar road studs?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: 3-5 days for Sample preparing ,7-10 working days for mass production.



Q3. Do you have any MOQ limit for solar road studs order?

A: Low MOQ, 1pc for sample checking is available.
