Industrial Managed Gigabit Switch 1G/2.5G SFP Ports ERPS Redundant Ring IP40 Rated CE
- 8 x 10/100/1000Mbps Auto-sensing RJ45 ports, support Auto MDI/MDIX
- 6 x 100M/1G/2.5G SFP fiber port
- 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
- Operating temperature -40°C to + 75°C
- Support wide voltage dual power input
- Support web management
- Meet IP40 protection degree and EMC industrial grade requirements

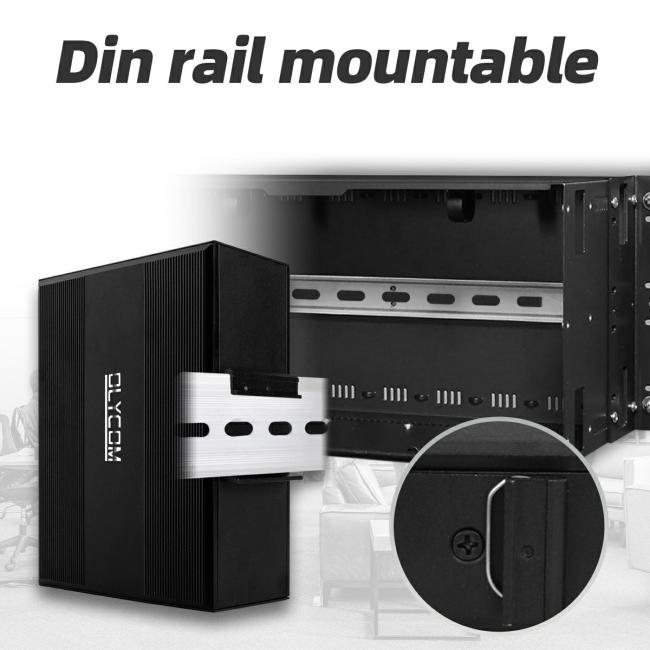

- DIN rail installation, pass through dangerous environmental certification
- Comply with FCC and CE standard
| Product Name | 10/100/1000Mbps Managed Industrial Fiber Switch |
| Port |
6 x 100/1000/2500Mpbs SFP port SM:1310nm/1550nm,20Km; 1490nm/1550nm, 40~120Km MM:1310nm, 2Km; 850nm, 500-meter 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Standard |
IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az |
| VLAND ID | 4096 |
| Jumbo Frame | 9.6KB |
| MAC Address Table Size | 8K |
| Switching features |
Transmission mode: storage and forward System bandwidth:46Gbps (non-traffic jam) DRAM size: 128M Flash size: 16M |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km, 40Km, 60Km, 80Km, 100Km |
| LEDs |
Power, network, fiber PWR: Power FX: Fiber port Orange: Link/ACT Green: 1000M Network Speed(off when it is 100Mb/s) |
| Power supply |
Input voltage: DC 12-52V No-load power: 5W Reverse connection: support |
| Environment |
Working temperature: -40°～ 75°C Storage temperature: -40°～ 85°C Working humidity: 10%～90%, non-condensing Storage humidity: 10%～95%, non-condensing |
|
Certification |
CE-EMC: EN 55032:2015+AC:2016+A1:2020+A11:2020 EN 55035:2017+A11:2020/EN IEC 61000-3-2:2019/A1:2021 EN 61000-3-3:2013/A2:2021/AC:2022 CE-LVD: EN IEC 62368-1:2020+A11:2020 FCC: 47 CFR FCC Part 15 Subpart B(Class B)ANSI C63.4:2014 |
| Mechanical information |
Shell: Corrugated metal shell Safety class: IP40 Dimension:158 x 115 x 60mm Mounting method: Din-rail mounting |
| Warranty | Replacement within 1 year; 3 years repairing |
Management Software
- Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
- Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching Support IGMP agent report, MLD snooping Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
- Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
- Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
- Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP, TFTP, QoS, ACL.
- Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
- Support Qos, transport classification Qos, Cos, bandwidth control (input/output direction), storm suppression, differentiated services Support IEEE802.1q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN, Protocol VLAN, VLAN convert, MVR
OEM
OEM and ODM service are optional. OLYCOM can provide product with customer LOGO and will do our best to meet clients requirements.
- It is OK to put your logo&model on the device or product label(see attached OEM file).
- We are a manufacturer and running some online stores for retailing, MOQ is 1pc.
- This is a fixed&permanent cost and we will not charge you again for future orders unless there is new change to the template.
Packing Box of managed Ethernet switch
