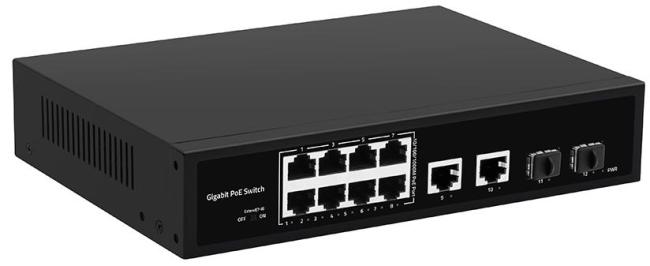

8 Port PoE Gigabit Fiber Switch PoE Watchdog With 4 SFP/RJ45 Uplink Ports 120W
8 Port Gigabit CCTV PoE Fiber Switch
Key Features of 8 port POE switch
- 8*Gigabit PoE Ports+2*Gigabit Ethernet ports+2*Gigabit SFP Ports
- Support IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE802.3x standard
- Ethernet Ports support 10/100/1000M self-adaptive
- The AI mode is automatically enabled 10M speed for Ports 7-8 in Extend mode
- Support PoE QoS Priority, priority ranges from 1 to 8. Enabled by default
- Ethernet Ports support 10/100/1000M self-adaptive
- Zero configuration feature, automatically supplied to adaptive equipment
- Panel indicator monitoring status and help failure analysis
- With DIP switch, support Default and Extend modes
Specification of 8 port fiber switch
| I/O Interface | |
| Power | AC100-240V50/60Hz |
| Ethernet |
8* Gigabit PoE Ports 2* Gigabit Ethernet ports 2* Gigabit SFP Ports； |
| Chipset | EN8850DH |
| Performance | |
| Bandwidth | 24Gbps |
| Packet Forward Rate | 17.856Mpps |
| Package Cache | 448Kbit |
| MAC Address | 2K |
| Jumbo Frame | 9216bytes |
| Forwarding Mode | Storage & forward |
| MTBF | 100000 Hours |
| Standard | |
|
Network Protocol
|
IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE802.3x (Flow Control) IEEE 802.3z (Gigabit Ethernet Fiber Standard) |
| PoE Standard |
IEEE802.3af(15.4W) IEEE802.3at(30W) |
|
Network medium
|
10Base-T: Cat 3, 4, 5 Class or above UTP/STP (≤ 100m) 100Base-TX: Cat 5 Class or above UTP/STP (≤ 100m) 1000Base-TX: Cat 5 Class or above UTP/STP (≤ 100m) |
|
Optical Medium
|
Multimode optical fiber: 50/125, 62.5/125, 100/140um Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um |
| Environment Standard | |
|
Working Environment
|
Working temperature: -10~50°C Storage temperature: -40~70°C Working humidity: 10%~90%, non-condensing Storage humidity: 5%~95%, non-condensing |
| Function Indicator | |
| Indicator | PWR (Power),1-12 Green Light (Link&Data) |
|
PWR
|
On: Powered on Off: Powered off |
|
1-10 Green Light (Link&Data)
|
On: Link normal Off: Link blocked Flashing: Data transmitting |
| DIP Switch |
Default: common mode, all interfaces can communicate with each other, the transmission distance is less than 100 meters, the transmission rate is 10/100/1000M adaptive; The port AI mode is disabled Extend: Link extension mode, 7-8 ports force 10M, transmisstion distance 250M (enable POE watchdog) |
| Physical Structure | |
|
Structure Size
|
Product Dimensions: 220*161*44.5mm Package Dimensions: 315*215*85mm Product N.W: 0.92kg Product G.W: 1.22kg |
|
Packing Info
|
Carton Dimensions: 445*445*335mm Packing Quantity: 10 PCS Packing Weight: 13.2KG |
|
Power Voltage
|

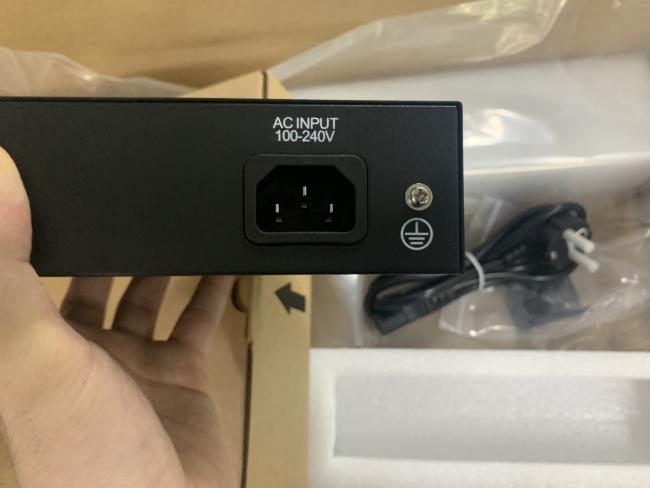

Input voltage: AC 100-240 V 50-60Hz Supply power:52V /2.3A 120W |
| Power |
Product power: maximum 10W POE power: maximum 110W |
| Packaging List | Switch 1 pc, Power cord 1 pc, User manual 1 pc, Certification 1 pc |
Application of PoE fiber switch
- Subway optical broadband network: telecommunication, cable TV, network system integration, etc.
- special broadband network: applicable to financial, government, oil, railways, electricity, public security, transportation, education and other industries
- Multimedia transmission: integrated transmission of image, voice and data, suitable for remote teaching, conference TV, video telephone and other applications
- Real-time monitoring: real-time control signal, image, data synchronous transmission
