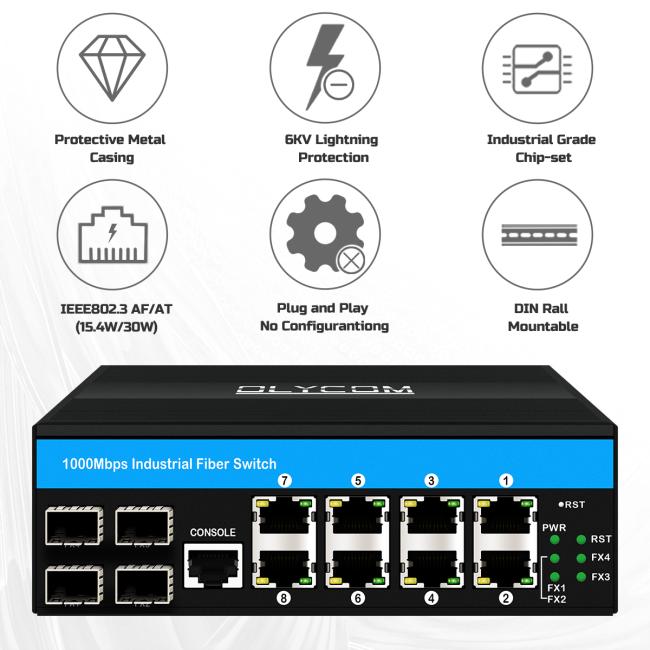

12 Port Gigabit Industrial Fiber Switch 10/100 / 1000mbps Managed Switch DC48V
12 Port Gigabit industrial fiber Switch
10/100 / 1000mbps managed switch DC48V Input
Key Features of Industrial poe fiber switch
- Support cable diagnosis and can locate the fault point
- Support IEEE802.3az EEE (Energy Efficient Ethernet) Management, optimize power consumption
- Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
- Support Qos, transport classification Qos, Cos, bandwidth control (input/output direction), storm suppression ,differentiated services
- Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN, Protocol VLAN,VLAN convert, MVR
- Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
- Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
- Support IGMP agent report, MLD snooping Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2

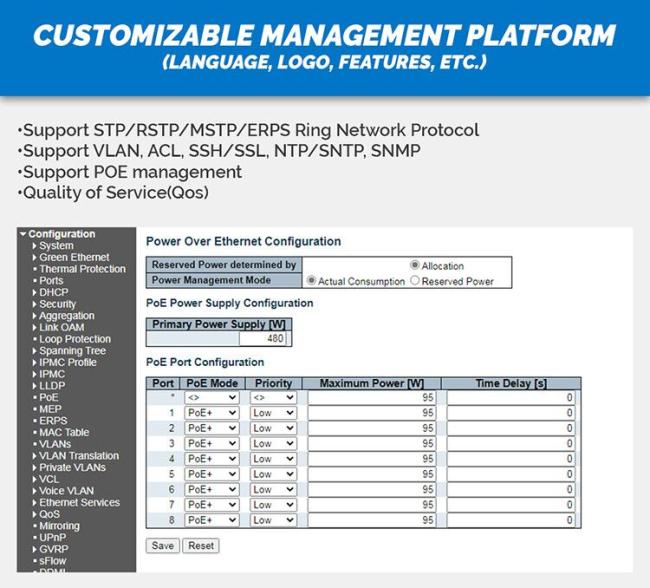

- Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
- Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
- Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
- Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
- Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.
Specification of Industrial Full Gigabit Switch
| Product Name | 10/100/1000Mbps Managed Industrial POE Fiber Switch (4F+8TP) |
| Model No. | IM-FP488GW |
| Port |
4 x 1000Mpbs SFP port SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km; 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Standard | IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az |
| VLAND ID | 4096 |
| Jumbo Frame | 9.6KB |
| MAC Address Table Size | 8K |
| Switching features |
Transmission mode:storage and forward System bandwidth:58Gbps (non-traffic jam) DRAM size: 128M Flash size: 16M |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network, fiber |
| Power supply |
POE power supply input voltage: 48V (max 52V), Single PoE power supply output power: 15.4W (port 1~8) (802.3at standards required special instructions) |
| Environment | Working Temp:-40°～ 75°C ; Storage Temp:-40°～ 85°C;Working humidity:10%～90%, non-condensing; Storage humidity:10%～95%, non-condensing |
| Safety | CE Mark ,commercial ; CE/LVD EN60950 |
| Mechanical information |
Shell:Corrugated metal shell; Safety class:IP40; Dimension:158 x 114.8 x 60mm; Mounting method:Din-rail mounting |
| Warranty | 3 years |
Industry Standards:
- EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A
- EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3,
- EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
- EN 61000-4-6 (CS) Level 3, EN 61000-4-8;
- Traffic Control:NEMA-TS2;
- Vibration:IEC 60068-2-6;
- Freefall:IEC 60068-2-32;
- Shock:IEC 60068-2-27;
- Rail Traffic:EN 50121-4

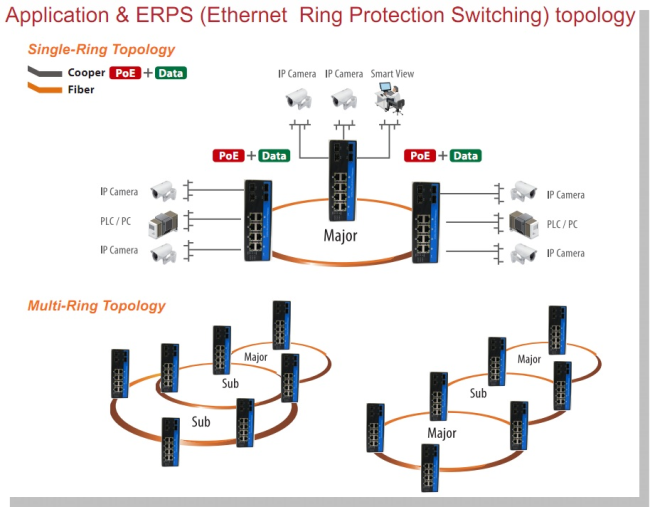

Application
Packing box of Din rail unmanaged switch
-
Put the product in an ESD Bag, then placed in PE foams with outer carton packaging.
- The standard packing usually contains a main device, a warranty card and a user manual.
- Packing box dimension for 1pc: 23*20.8*8cm
- 40pcs in a packing box of 55.5*40*41cm dimension.
