Desktop 12 Port 10G L3 Managed Switch 12* SFP+ Ports Fiber Optic Switch
12 Port 10G L3 managed desktop switch
12* SFP+ ports Fiber optic switch
Introduction of 12 port managed switch
12 Port 10G L3 Management Ethernet Switch, support 12* SFP+ ports, 1* RJ45 console port. Perfect security control strategy and CPU protect policy, improve product fault tolerance, ensure stable network operation and link load balancing; the device supports automatic DoS attack prevention, SNMP, IEEE 802.1q, spanning tree, rapid generation tree protocol, link aggregation and other functions. Advanced security features and advanced Quality of Service (QoS), can be used as a core, distribution or access layer switch, with high port density, easy to manage, it is an ideal choice for a variety of commercial network applications.
Application of CCTV network switch
- Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.
- Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries
- Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, video phone and other applications
- Real-time monitoring: Simultaneous transmission of real-time control signals, images and data
Specification of 6 port Ethernet Switch
| I/O Interface | |
| Power |
AC100-240V 50/60Hz DC 12V |
| Ethernet |
12* SFP+ Ports 1* RJ45 Console Port |
| Performance | |
| Bandwidth | 240Gbps |
| Packet Buffer Memory | 178.56Mpps |
| DDR SDRAM | 128MByte |
| Flash Memory | 16MByte |
| Package cache | 16MBit |
| MAC Address | 32K |
| Jumbo Frame | 10Kbyte |
| VLANs | VLAN range 1-4094, with a maximum active VLAN of 4K |
| Standard | |
| Network Protocol |
IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3z (Gigabit Ethernet optical fiber) IEEE 802.3ae (10G Ethernet) IEEE802.3x (Flow control) IEEE 802.3az (Energy Efficient Ethernet) IEEE 802.3ad (link aggregation) IEEE 802.1AB LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1D Spanning Tree Protocol(STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) IEEE 802.1Q (Virtual Local Area Network) IEEE 802.1p (VLAN Tags) IEEE 802.1X (User Authentication) |
| Industry Standard |
EMS: EN61000-4-2 (ESD) EN61000-4-5 (Surge) |
|
Network Medium
|
Multi-mode Fiber: 50/125, 62.5/125, 100/140um Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um |
| Certification | |
| Safety Certificate | CE, FCC, RoHS |
| Environment | |
| Working Environment |
Working Temperature: -10~50°C Storage Temperature: -40~70°C Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~95%, non-condensing |
| Function Indicator | |
| Indicator | PWR (Power Indicator),SYS (system Indicator), Link (Link Indicator), ACT (ACT Indicator) |
| PWR(Power indicator) |
On: Powered on Off: Powered Off |
| SYS(System light) |
On: System normal, Flashing: system startup |
| 10G(Link Light) | On: 10G Link |
| ACT(Data Light) | On: Connecting; Flashing: Data Transmit; Off: Disconnect |
| Physical Specifications | |
| Structure Size |
Product Dimensions: 440*205*44mm Package Dimensions: 500*290*85mm Product N.W: 2.50 KG Product G.W: 3.12 KG |
| Packing Info |
Carton Dimensions: 520*445*310mm Packing Quantity: 5 PCS Packing weight: 16.6 KG |
| Power Voltage |
Voltage: AC100-240V, 50/60Hz Power supply: 12V8A |
| Consumption | Maximum 30W |
| Package List |
Switch: 1 Set, Instruction manual: 1 PC, Certificate: 1 PC, Power cord: 1 PC Serial cable: 1 PC, Rack ear: 1 Pair |
Accessories
| SFP Transceiver | ||
| OSPL1G05D | 1000BASE-SX |  |
| OSPL1G06D | 1000BASE-SX (1310nm) | |
| OSPL1G20D | 1000BASE-LX | |
| OSPL1G40D | 1000BASE-EX | |
| OSBL1G20D-35 | 1000BASE-BX-U (TX 1310 RX1550) | |
| OSBL1G20D-53 | 1000BASE-BX-D (TX 1550 RX1310) | |
| OSPLXG05D | 10GBASE-SR | |
| OSPLXG06D | 10GBASE-SR (1310nm) | |
| OSPLXG10D | 10GBASE-LR | |
| OSPLXG40D | 10GBASE-ER | |
| OSBLXG20D-23 | 10GBASE-BX-U (TX 1270 RX1330) | |
| OSBLXG20D-32 | 10GBASE-BX-U (TX 1330 RX1270) | |

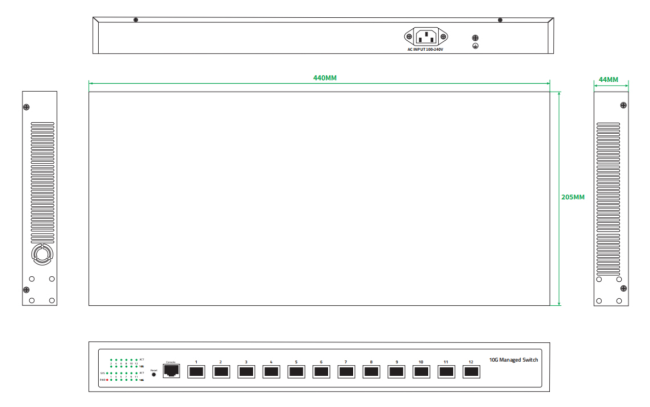

Dimension
