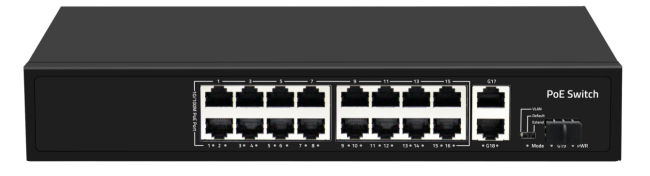

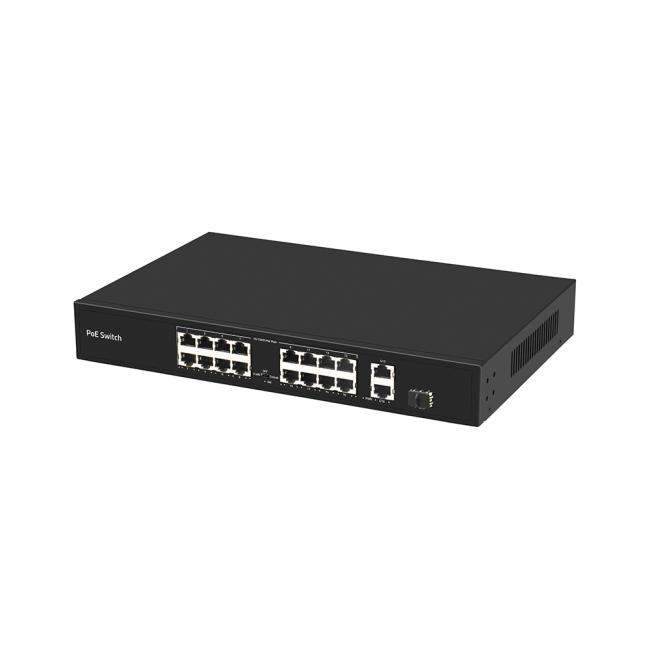

16 Port Gigabit Uplink 10/100M PoE Fiber Switch

Description of PoE network switch

1. Gigabit Uplink 16-port PoE switch, using high-quality high-speed network IC and the most stable PoE chip,
2. The PoE port meets the 802.3af or 802.3at standard.
3. This series of PoE switches can provide seamless connection for 10/100M Ethernet.
4. PoE power supply port can automatically detect and supply power to powered devices that comply with IEEE802.3af or IEEE802.3at standards, and non-PoE devices intelligently detect no power supply, only data is transferred.

Specification of 16 port PoE Switch

Features of 250-meter PoE switch

1. 16*10/100M POE ports + 2* 1000M Ethernet Uplink ports +1*1000M SFP Port
2. Comply with IEEE 802.3, IEEE 802.3u,IEEE802.3ab,IEEE802.3z standards
3. Ethernet port 10/100/1000M rate auto adaptive
4. Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
5. Support Port Auto-flip (Auto MDI/MDIX)
6. Panel indicators to monitor working status and help fault analysis
7. One-key smart switch, supports VLAN, Default , Extend

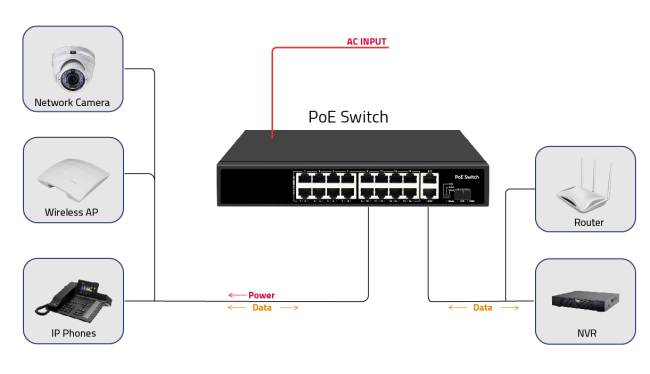

Application of Gigabit Fiber Switch

Warranty

• 1 year for commercial products and 3 years for industrial products. Technical support will be offered free.
• The customer is responsible for delivering the defective product to the designated RMA Address for repair or replacement.
• Olycom will repair or replace a product that was found to be defective by Olycom during the warranty period at its discretion.
• The sole responsibility of Olycom under this warranty shall be limited to repair of this product, or replacement thereof, at the sole discretion of Olycom.
• All RMA items shipped to Olycom must be freight prepaid.
• The repaired products would be returned within 1 month after receiving the return materials. Freight charge should be paid by the sender.
• Any RMA items shipped to Olycom which are out of warranty will not be returned to the customer under any circumstances.
