Network Unmanaged 10 Ports Gigabit Desktop POE Switch With 8 Port Poe AC100-240V
Network unmanaged 10 ports gigabit desktop switch
with 8 port poe AC100-240V
Introduction of gigabit network switch

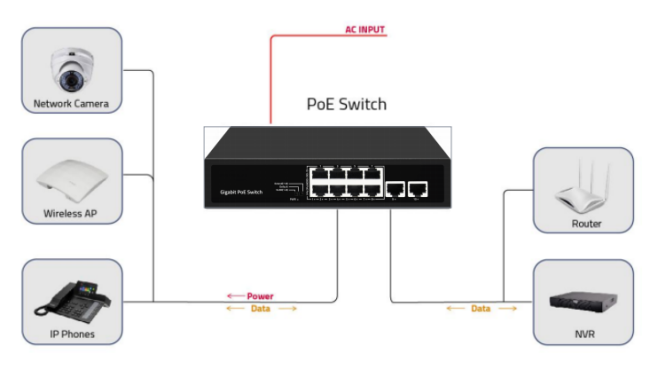

10 Port Gigabit Ethernet PoE Switch, provide seamless connections to 10/100/1000M Ethernet, PoE is an Ethernet power supply that transmits data signals to IP-based terminals, such as IP phones, wireless access aps, and network cameras. and the PoE supply port can automatically detect and supply receiving devices meeting IEEE802.3af/at standard, non-PoE devices intelligently detect no power and only transmit data.
Power over Ethernet (PoE) technology transmits data signals for IP-based terminals (such as IP phones, APs, and network cameras) and provides DC power for the devices. These devices that receive DC power are called receiving devices.
Specification of POE Switch
| I/O Interface | |
| Power | AC INPUT (100-240V) |
| Ethernet |
8* Gigabit PoE Ethernet Ports 2* Gigabit Uplink Ethernet Port |
| Chipset Solution | 8850DH |
| Performance | |
| Bandwidth | 20Gbps |
| Pack forward rate | 14.88Mpps |
| Memory cache | 448Kbit |
| MAC address | 2K |
| Jumbo Frame | 2048bytes |
| Transfer mode | Store and forward |
| MTBF | 100000 Hours |
| Standard | |
| Network Protocol |
IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) |
|
PoE Protocol
|
IEEE802.3af(15.4W) IEEE802.3at(30W) |
|
Network Medium
|
10Base-T : Cat3, 4, 5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m) |
| Certificate | |
| Safety Certificate | CE, FCC, RoHS |
| Environment Standard | |
| Working Environment |
Working Temperature: -10~50°C Storage Temperature: -40~70°C Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~95%, non-condensing |
| Function Indicator | |
| Indicator | PWR (Power),1-10 Green Light (Link&Data) |
| PWR |
On: Powered on Off: Powered off |
| 1-10 Green Light (Link&Data) |
On: Link normal Off: Link blocked Flashing: Data transmitting |
| DIP Mode |
VLAN:Isolation mode. Ports 1 to 8 are isolated and communicate with the upstream interface. Default:Normal mode, all interfaces can communicate with each other, the transmission distance is less than 100 meters, the transmission rate is 10/100/1000M adaptive; The port AI mode is disabled. Extend:Link extension mode, 7-8 ports force 10M, transmission distance extend to 250M. |
| Physical Structure | |
| Structure Size |
Product size: 200*118*44mm Package size: 245*190*60mm Net weight: 0.69KG (96W) /0.71KG (120W) Gross weight: 0.97KG (96W) /0.99KG (120W) |
| Packing Info |
Outer box size: 520*320*400mm Packing quantity: 20 sets Packing weight: 20.4KG (96W) /20.8KG (120W) |
| Power Voltage |
Input voltage :AC100-240V Power supply: 52V1.85A (96W) / 52V2.3A (120W) |
|
power
|
Product power: maximum 10W / maximum 10W POE power: maximum 80W / maximum 110W |
| Packing List | Switch 1 PC, Power cord 1 PC, User manual 1 PC, Certificate 1 PC |
With simple installation and maintenance methods and rich service functions, it helps users build high-performance networks that are secure and reliable.
It is mainly located in industrial parks, buildings, factories, mines, government agencies, residential broadband and other user network core or fusion layer; it can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, and schools.
Production Steps
- Welding: Weld the necessary components
- Cleaning: To avoid any possible dysfunction due to dust or scraps on the PCB boards.
- Assembling: Builds up components of a product, like panels, screws, PCB boards.
- Testing: To make sure the product is basically working fine after assembling
- Aging: To check if the product can work smoothly for long time without any minors such as LED indicators, voltage. This will usually last for 24 to 48 hours.
- Testing: To test if the product can process data or video signals correctly. Any data loss? Transmission rate correct? Any data packet failure? Such questions would be verified in this procedure.
- QC testing: This is the third and also last check of product quality. If it goes good, our packing staff will pack it up according to customer requirements and attach to the packing box a product label.
- When all above is done, the product will go to market.
Packing List:
|
|
CONTENT |
QTY |
UNIT |
|
Packing List |
10 ports gigabit switch |
1 |
Set |
|
Instruction manual |
1 |
Set |
|
|
Certificate of quality |
1 |
Set |
|
|
Power cord |
1 |
Set |
