4 Port Gigabit SFP Fiber PoE Switch 60W Budget With VLAN 250-Meter Extension
4 port Commercial Gigabit PoE Fiber Switch with 2 optical uplink
Key Features of PoE Switch 4 Port
- 4*10/100/1000M POE Ports + 2*1000M SFP Port
- Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3z standards
- Ethernet port 10/100/1000M rate auto adaptive
- Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
- Support Port Auto-flip (Auto MDI/MDIX)
- Panel indicators to monitor working status and help fault analysis
- One-key smart switch, supports VLAN, Default, Extend
Specification of Commerical Network Switch
| I/O Interface | |

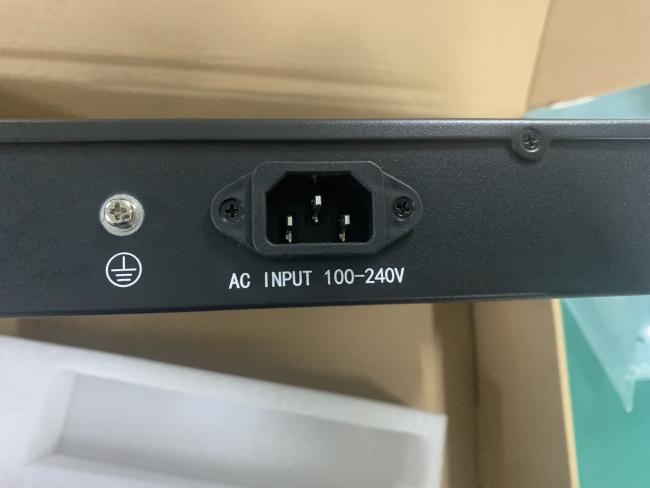

| Power | Input: AC 100-240V, 50/60Hz |
| Ethernet |
4*10/100/1000M PoE Port 2* Gigabit SFP Uplink Port |
| Performance | |
| Switching Capacity | 12Gbps |
| Throughput | 8.928Mpps |
| Packet Buffer | 1Mbit |
| MAC Address | 2K |
| Jumbo Frame | 9216bytes |
| Transfer Mode | Store and forward |
| MTBF | 100000 hour |
| Standard | |
| Network protocol |
IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab(1000Base-TX) IEEE802.3z(1000Base-FX) IEEE802.3x (Flow control) |
|
PoE Protocol
|
IEEE802.3af (15.4W) IEEE802.3at (30W) |
|
Network Medium
|
10Base-T : Cat3,4,5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m) |
| Optical Media |
Multimode fiber : 50/125, 62.5/125, 100/140μm Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm |
| Protection | |
| Security Certificate | CE,FCC,RoHS |
| Environment | |
| Working Environment |
Working Temperature:-10~50°C Storage Temperature:-40~70°C Working Humidity :10%~90%,non-condensing Storage Temperature:5%~95%,non-condensing |
| Indication | |
| PWR(power supply) |
Lighting:Powered Un-Light:No Power |
| Mode(DIP) |
Lighting:VLAN Un-Light:Default Flashing:Extend |
| 1-6 Gree(Link&Data) |
Lighting:Connecting Flashing:Data Transmit Un-Light:Disconnect |

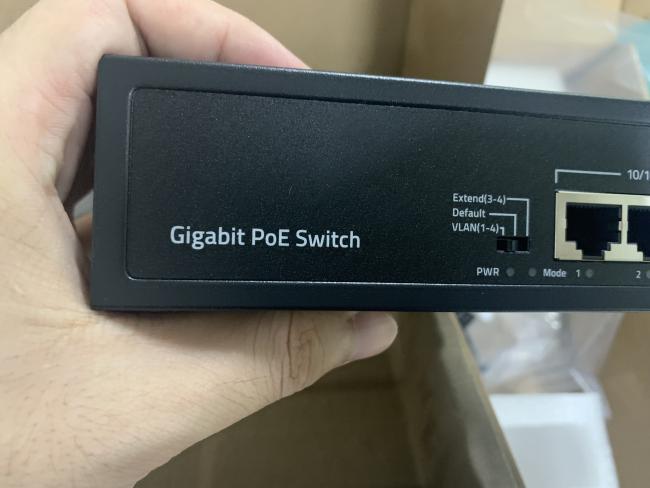

| DIP Switch |
VLAN:Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port. Default : Normal mode, all port can communicate with each other, the transmission distance is within 100 meters Extend:Link extension mode, 3-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M |
| Mechanical | |
| Structure Size |
Product Dimension : 200*118*44.5mm Package Dimension : 245*190*60mm N.W:0.63kg G.W:0.93kg |
| Packing Info |
Carton MEAS:520*320*400mm Packing Qty:20units Packing Weight:19.6KG |
| Power Voltage |
Input Voltage :AC 100-240 V Power supply:52V1.25A |
| power |
Product power: maximum 5W POE power: maximum 60W |
| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc |

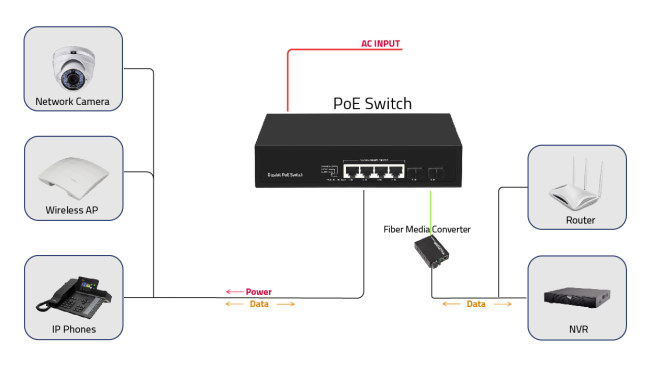

Application of Gigabit Fiber Switch
- Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.
- Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries
- Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications
- Real-time monitoring: Simultaneous transmission of real-time control signals, images and data
