10G Industrial Fiber Bypass switch Ethernet PoE Switch 4*10G Sfp Ports+8*10/100/1000mbps
10G Industrial Fiber Bypass switch Ethernet PoE Switch
4*10G Sfp Ports+8*10/100/1000mbps
Key Features of 10G Industrial Fiber Bypass switch
- 8x 10/100/1000Base-T RJ-45 and 4x 10GBase-FX SFP Fiber, one console port
- Support IEEE 802.3af/at power on to 1 ~ 8 RJ45 ports
- 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
- Support Auto MDI/MDIX
- Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
- A store-and-forward switching mechanism
- Operating environment temperature:-40 ° ~75 ° c
- Cable diagnostic, Measuring cable normal or broken point distance
- Redundant input power 48VDC (48~52VDC) and Support reverse polarity
- Ethernet Ring Protection Switching (ERPS) for redundant cabling
- Support SNMPv1, v2, v3, Web management, support user login password protection and other device configuration methods
Management Interface
Specification of Ethernet PoE Switch
|
Product Name |
10G 10G Industrial Fiber Bypass switch (4F+8TP) |
|
Model No. |
IM-FP4X88BGW |
|
Port |
4x 10GBase-FX SFP+ Fiber SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km; 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
|
Standard |
IEEE 802.3: 10Base-T 10Mbit/s Ethernet IEEE 802.3u: 100Base-TX, Fast Ethernet IEEE 802.3z: 1000Base-T Gbit/s Ethernet over fiber optic IEEE 802.3ae for 10 Gigabit Ethernet IEEE 802.1d: STP (Spanning Tree Protocol) IEEE 802.1s: 100Base-TX, Fast Ethernet IEEE 802.1w: RSTP (Rapid Spanning Tree Protocol ) ITU-T G.8032 :ERPS (Ethernet Ring Protection Switching) IEEE 802.1Q: Virtual LANs (VLAN) IEEE 802.1X: Port based and MAC based Network, Access Control,Authentication IEEE 802.3ad: Link aggregation for parallel links with LACP(Link Aggregation Control Protocol) IEEE 802.3x: Flow control for Full Duplex IEEE 802.1ad: Stacked VLANs IEEE 802.1p: LAN Layer 2 QoS/CoS Protocol for Traffic Prioritization IEEE 802.1ab: Link Layer Discovery Protocol (LLDP) IEEE 802.1az: EEE (Energy Efficient Ethernet) IEEE802.3af: 15.4W IEEE802.3at: 30W |
|
Switch Architecture |
System bandwidth:176Gbps (non-traffic jam) DRAM size: 4GB Switching delay: <10us Packet buffer :12Mbit Throughput: 95.23Mpps Jumbo frame :12KB MAC function :16K L2 |
|
Extended functionality(optional) |
BYPASS optical bypass protection function |
|
Power Consumption |
8W(no-load) 18W (Full-load) |
|
8W(no-load) 18W (Full-load) |
Redundant DC48V (48~52VDC) power (Removable Terminal Block ) |
|
LED |
Per unit: Power 1 (Red), SYS (Red), RJ-45 port: Link/Active (Green) Speed(Yellow) SFP Fiber port: Link/Active (Green) Extension indicator |
|
Operating Temperature |
-40 ~ 75°C |
|
Dimensions |
165 x 112 x 54mm |
|
Weight |
0.85kg |
|
Installation Mounting |
Din-rail mounting |
| Warranty | 3 years |
Packing List:
- Put the product in an ESD Bag, then placed in PE foams with outer carton packaging.
- The standard packing usually contains a main device, a warranty card and a user manual.
- Packing box dimension for 1pc: 23*16.5*5.8cm
- 20pcs in a packing box of 55.5*40*41cm dimension.
Application:
1. Intelligent Transportation (Highway/Railway/Tunnel Monitoring)
Deployed in fiber ring network of highway roadside & metro tunnel video surveillance; 8×PoE ports connect traffic cameras & traffic signal PLCs. Optional optical BYPASS keeps fiber link active automatically once single switch power failure, ensuring continuous video & traffic signal transmission under outdoor harsh temperature & damp tunnel environment.
Used for substation monitoring & remote data collection of photovoltaic/wind power station; PoE feeds power to monitoring cameras & smart sensors. ERPS plus BYPASS dual redundancy prevents monitoring network breakdown caused by single-point device fault, suitable for heavy EMI substation environment.
Build industrial fiber ring for factory PLC control & perimeter security camera system; BYPASS bypass faulty node physically to avoid whole production network collapse; wide-temperature design adapts high-temperature, dusty & humid workshop conditions, PoE for explosion-proof industrial cameras & field collectors.
River/reservoir water quality monitoring sites connected via chain-type fiber network; PoE powers water quality sensors & hydraulic cameras. BYPASS guarantees upstream & downstream fiber connectivity even when local site power off, uninterrupted hydrology data upload to central control room.
FAQ:
Q1: What is the BYPASS function of IM-FP4X88BGW?
A: Optional optical BYPASS works on 4×10G SFP+ ports. When switch is power-off or abnormal, fiber links get physical short-circuit bypassing the switch, keeping ring network intact, combining with ERPS for double link redundancy.
Q2: PoE output specification?

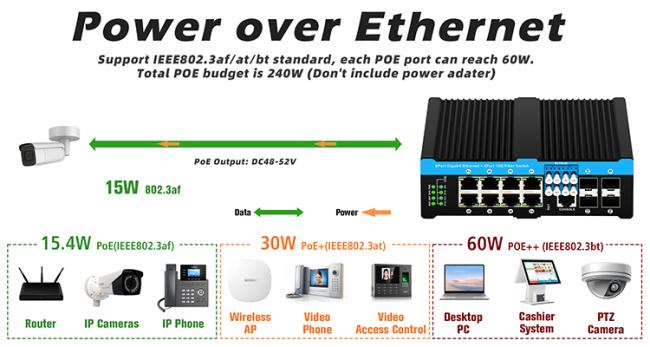

A: All 8 RJ45 ports support IEEE802.3af(15.4W) & at(30W), max 30W per port for IP cameras and industrial AP. But If you need 60w, please let us know.
Q3: Operating temperature & outdoor installation available?
A: -40℃ ~ +75℃ working range, 6KV surge protection, IP40 & DIN-rail design, suitable for outdoor, tunnel and harsh industrial sites.
Q4: Fiber port speed and compatible SFP modules?
A: 4×10G SFP+ slots, compatible with industrial SFP+ modules: MM 2km, SM 20km /40~120km.
Q5: ERPS recovery time and ring topology?
A: ERPS recovery＜50ms, supports single ring, sub-ring and multi-ring structure, BYPASS enhances whole network stability.
