8 Port 10/100Mbps PoE Switch 120W Gigabit Network SFP Uplink Unmanaged AC Powered CE

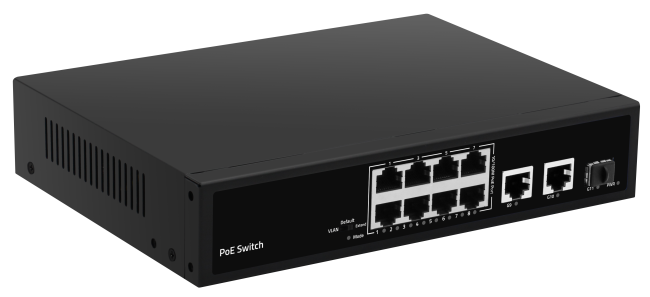

Olycom 8 Port 10/100Mbps CCTV PoE Switch
Specification of Commercial PoE Switch
|
Product Name |
11 Port 10/100&1000Mbps Ethernet PoE Switch |
|
Port |
8 Port 10/100M PoE + 2 Port 1000M Ethernet Uplink + 1 Gigabit SFP |
|
Switching Capacity |
7.6Gbps |
|
Throughput |
5.6Mpps |
|
Packet Buffer |
1M |
|
MAC Address |
2K |
|
Jumbo Frame |
4096bytes |
|
Transfer Mode |
Store and forward |
|
MTBF |
100000 hours |
|
Network protocol |
IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab(1000Base-TX) IEEE802.3z(1000Base-FX) IEEE802.3x (Flow control) |
|
PoE Protocol |
IEEE802.3af(15.4W) IEEE802.3at(30W) |
|
PoE Wiring |
1/2(+), 3/6(-) |
|
PoE Budget |
120W |
|
Industry Standard |
EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD) EN61000-4-5 (Surge) |
|
Network Medium |
10Base-T: Cat3,4,5 or above UTP(≤100m) 100Base-TX: Cat5 or above UTP(≤100m) 1000Base-TX: Cat5 or above UTP(≤100m) |
|
Optical Media |
Multi mode fiber : 50/125, 62.5/125, 100/140μm Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm |
|
Certification |
CE/FCC/RoHS |
|
Working Environment |
Working Temperature: -10℃~50℃ Storage Temperature: -40℃~70℃ Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~95%, non-condensing |
|
Power |
Power Input Voltage: AC100-240V |
|
LED Indicators |
PWR(power supply) On: Power on Off: Power off
SW(Dial Code) OFF: OFF On: VLAN Flash: Extend
1-10 Green(Link&Data) On:Normal Off:Failed Flash:Data transfer |
|
DIP Switch |
VLAN: Port Isolation, 1-8 PoE ports are isolated each other and can only communicate with uplink port 9/10/11
Default: Normal mode, all ports communicate with each other
Extend: Link Extension Mode, 1-8 ports PoE and data transmission distance extended to 250 meters, the transmission rate becomes 10M/s |
Introduction
It adopts high-quality and high-speed network intelligent and PoE chip
This PoE switch has 8 port 10/100M PoE + 2 port 1000M Ethernet uplink + 1 Gigabit SFP enjoying
seamless connection for 10/100M or 10/100/1000M Ethernet
- three working modes
- one-key smart simple switching working mode
- easy to manage and maintain
- 802.3af and 802.3at standard for each PoE port
- intelligent detection of powered devices
power the devices that comply with the IEEE802.3af or IEEE802.3at standards
transmit only data to non-PoE devices
With simple and convenient installation, maintenance methods and rich business features, it helps users build a safe and reliable high-performance network
It is mainly located in the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and residential broadband
It can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, and schools
Key Features
- 8* 10/100M PoE Ports+2*Gigabit Ethernet Ports+1* Gigabit SFP Port
- Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE 802.3z, IEEE802.3af/at standards
- Ethernet port supports 10/100M adaptive and PoE functions
- Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
- Support port auto flip (Auto MDI/MDIX)
- Automatically supplied to adaptive devices
- Panel indicator monitoring status and help failure analysis
- Support VLAN mode, OFF mode and Extend mode

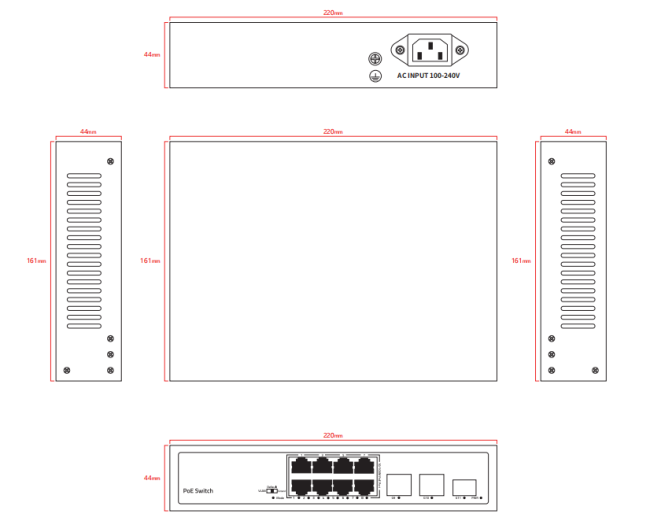

Dimension
