850nm Fiber Optic PoE Media Converter Gigabit Network Unmanaged Multimode SFP Cage
Price:
Negotiable
MOQ:
1 Pcs
Delivery Time:
3~7 working days
Brand:
Olycom
Product Description
Gigabit PoE Fiber Optic Media Converter
Product Introduction
Olycom 10/100/1000Mbps POE PSE PD Ethernet to fiber media converter features below
- IEEE 802.3af/at Power Sourcing Ethernet (PSE) functionality on the twisted pair port
- Supplying both data and electric current to devices

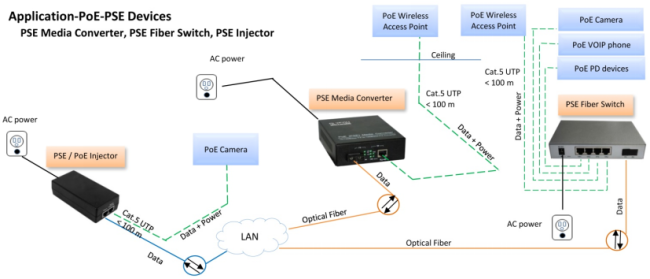

- Widely used in WiFi access points, VoIP phones and IP security cameras
- Unique premium aluminum compact case
Key Features
- 1 x 10/100/1000Base-TX port for data and power
- External power supply
- 1 x 1000Base-FX or SX fiber port
-
Support AVB
- Link fault pass through (LFPT)
-
IEEE802.3af/at compliant
Technical Parameters
| Standard | IEEE802.3(10Mbps), IEEE802.3u (100Mbps), IEEE802.3z(1000Mbps), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree, IEEE802.3af PoE/PSE |
| 10/100/1000BASE-T | STP or UTP Category 5/5e/6 cable (Max. 100m) |
| 1000BASE-FX | 50/125um(1Km), 62.5/125um MMF (550m), 9/125um SMF (20/40/60/80/100km) |
|
Conversion Mode Delay Time |
Store-and-Forward < 10us Straight-through<0.9us |
| Flow control | Full duplex-flow control, Half duplex-back pressure |
| RJ-45 Port | Auto-MDI/MDIX |
| Fiber Connector | LC standard, SC/FC optional |
| Wavelength | 1310/1550nm |
| Input Voltage | 48VDC/1A external power supply |
| Power Consumption | <2.5W |
| PoE pin assignment | 1/2 (V+),3/6 (V-) |
| PoE Output | -48V, 0.54A, 25W |
| MTBF | 50,000 hours |
| BER | <1/1000000000 |
| MAC Address Table | 4K |
| Buffer Size | 1.75M |
| Operation Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~85℃ |
| Storage Humidity | 5%~90% non-condescending |
| Dimensions and Weight |
135mm(L) x 90mm(W) x 28mm(H) Net weight : 0.3kg, Gross weight : 0.5kg |

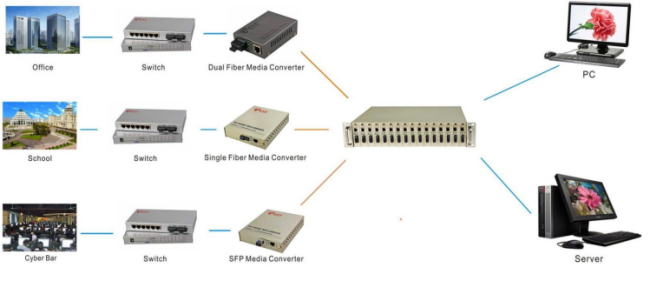

Application
- Schools, Offices, Cyber bars
- FTTX Projects
- Telecommunication Networks

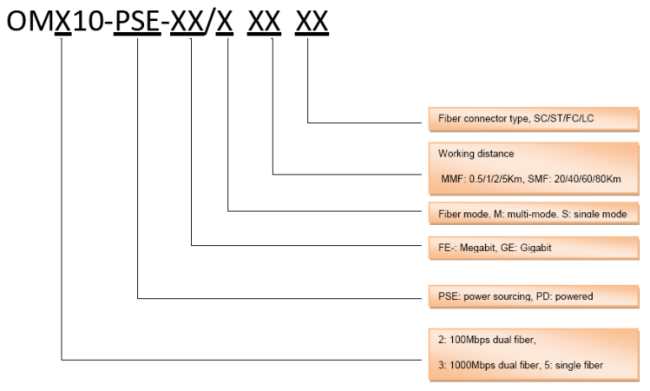

Ordering Details
| TA343-PSE-GE | PSE/PoE fiber media converter, 10/100/1000Mbps, single port, 220VAC in -48VDC out, 25W, without SFP module |
| TA343-PSE-GE/ M05-LC | PSE/PoE fiber media converter, 10/100/1000Mbps , single port, 220VAC in -48VDC out, 25W, MMF, dual fiber, 1310nm, 550M, LC |
| TA543-PSE-GE/ S20- SC | PSE/PoE fiber media converter, 10/100/1000Mbps , single port, 220VAC in -48VDC out, 25W, SMF, single fiber, 1310nm / 1550nm, 20Km, SC |
