10/100M PoE Fiber Optic Ethernet Media Converter LC Fiber SFP Megabit Unmanaged
48V PoE Fiber Optic Media Converter
Introduction
Olycom 10/100Mbps POE PSE fiber to copper Ethernet media converter features below

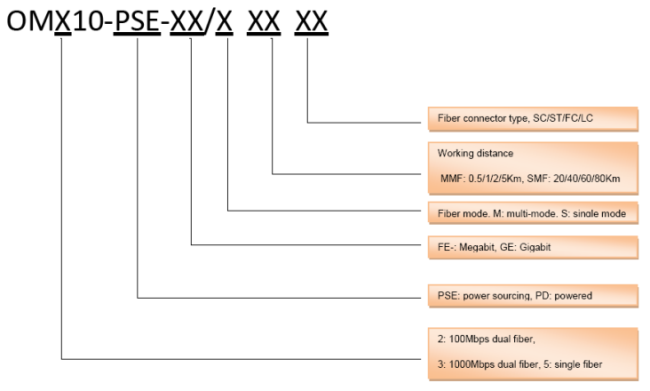

- Model name: TA243-PSE-FE, we support your model name
- Widely used for WiFi access points, VoIP phones and IP security cameras
- Provide both data and electric current to devices
- Supply IEEE 802.3af/at Power Sourcing Ethernet (PSE) functionality on the twisted pair port
- Install Powered Devices (PD) anywhere around the LAN or enterprise campus
Features
- IEEE802.3af/at compliant, POE 15.4W or 30W
- External Power supply, DC input
-
1 x 10/100Base-TX port for data and power
- 1 x 100Base-FX or SX fiber port
- Externalized DIP switch for convenient configuration
Technical Parameters
| Standard |
IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet) IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS IEEE802.1d Spanning Tree, IEEE802.3af /at PoE/PSE |
| 10/100BASE-T | STP or UTP Category 5/5e/6 cable (Max. 100m) |
| 100BASE-FX | 9/125um SMF (20km) |
|
Conversion Mode Delay Time |
Store-and-Forward < 10us, straight-through<0.9us |
| Flow control | Full duplex-flow control, Half duplex-back pressure |
| RJ-45 Port | Auto-MDI/MDIX |
| Fiber Connector | SC standard, ST/FC optional |
| Wavelength | 1310/1550nm |
| Input Voltage | 48VDC/1A external power supply |
| Power Consumption | <2.5W |
| PoE Pin Assignment | 1/2 (V+),3/6 (V-) |
| PoE Output | -48V, 0.54A, 25W |
| MTBF | 50,000 hours |
| BER | <1/1000000000 |
| MAC Address Table | 1K |
| Buffer Size | 1M |
| Operation Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~85℃ |
| Storage Humidity | 5%~90% non-condescending |
| Dimensions and Weight |
135mm(L) x 90mm(W) x 28mm(H) Net weight : 0.3kg, Gross weight : 0.5kg |

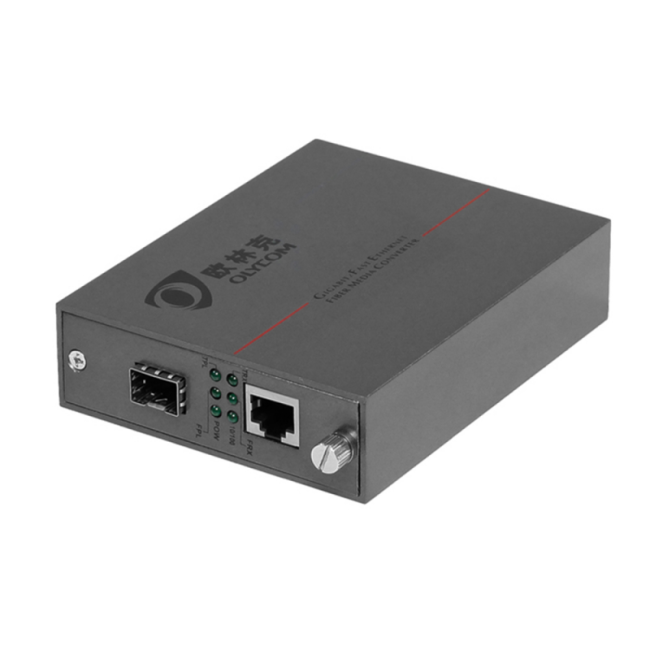

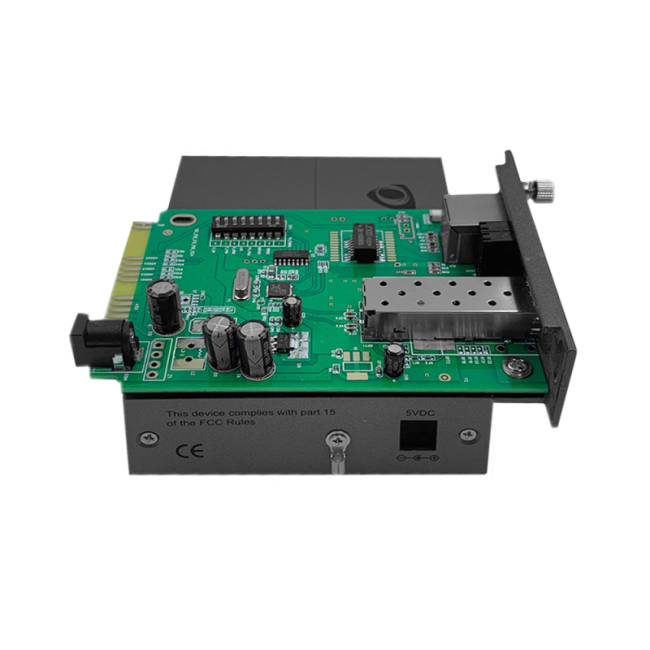

Product Images
Warranty
| Products Category | Warranty Period |
| Fiber Ethernet Media Converter | 1 year |
| Optical Video Converter | 1 year |
| Fiber Switch | 1 year |
| Ethernet Switch | 1 year |
| Serial Fiber Converter | 1 year |
| PDH Multiplexer | 1 year |
| CCTV PoE Switch | 1 year |
| Commercial Managed Switch | 1 year |
| Commercial PoE Managed Switch | 1 year |
| Din Power Supply | 3 years |
| Industrial Ethernet Switch | 3 years |
| Industrial PoE Switch | 3 years |
| Industrial Managed Switch | 3 years |
| Industrial PoE Managed Switch | 3 years |
| CWDM Module | 1 year |
| DWDM/OTN Devices | 1 year |
The customer is responsible for delivering the defective product to the designated RMA Address for repair or replacement.
Olycom will repair or replace a product that was found defective by Olycom during the warranty period at its discretion. The sole responsibility of Olycom under this warranty shall be limited to repair of this product, or replacement thereof, at the sole discretion of Olycom.
All RMA items shipped to Olycom must be freight prepaid.
The repaired products would be returned within 1 month after receiving the returned materials. Freight charge should be paid by the sender.
