Gigabit PoE Media Converter Singmode SC Fiber 20km 1310/1550nm DC48V Unmanaged
Gigabit Single Fiber PoE Media Converter
Overview of PoE Media Converter
Olycom TA510-GE series Gigabit POE Ethernet to fiber media converters
- feature 1-fiber transmission with Wavelength Division Multiplexing (WDM) technology
- utilize fiber optics to extend the physical distance range of typical Ethernet link to 20km-100km
- It’s often applied in school, cyber bars, offices, and telecommunication networks
- supply both data and electric current
- provide IEEE 802.3af/at Power Sourcing Ethernet (PSE)
Key Features of Unmanaged Media Converter
- Wavelength Division Multiplexing (WDM), Tx and Rx on 1 fiber
- Support AVB
- IEEE802.3af/at compliant
- 10K super data packet transmission
- Full- positioned LEDs to indicate power and network status
- Full duplex-flow control, Half duplex-back pressure
- 10/100/1000Mbps autosensing, auto-MDI/MDIX
- Link fault pass through (LFPT)
Technical Parameters of Network Media Converter
| Standard |
IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEE802.3z 1000BASE -SX/LX(Gigabit-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree, IEEE1588V2, IEEE802.3az |
| 10/100/1000BASE-T | STP or UTP Category 5/5e/6 cable (Max. 100m) |
| 1000BASE-FX | 9/125um singlemode fiber cable (20/40/60/80/100/120km) |
|
Conversion Mode Delay Time |
Store-and-Forward < 10us, straight-through<0.9us |
| Flow control | Full duplex-flow control, Half duplex-back pressure |
| RJ-45 Port | Auto-MDI/MDIX |
| Fiber Connector | SC standard, ST/FC optional |
| Wavelength | 1310/1550nm |
| Dimensions | 70mm(W) x 93mm(D) x 28mm(H) |
| Weight | Net weight : 0.16kg, Gross weight : 0.5kg |
| Input Voltage |
48VDC/1A external power supply |
| Power Consumption | <2.5W |
| PoE pin assignment | 1/2 (V+),3/6 (V-) |
| PoE Output | -48V, 0.54A, 25W |
| MTBF | 50,000 hours |
| BER | <1/1000000000 |
| MAC Address Table | 4K |
| Buffer Size | 1.75M |
| Operation Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~85℃ |
| Storage Humidity | 5%~90% non-condescending |

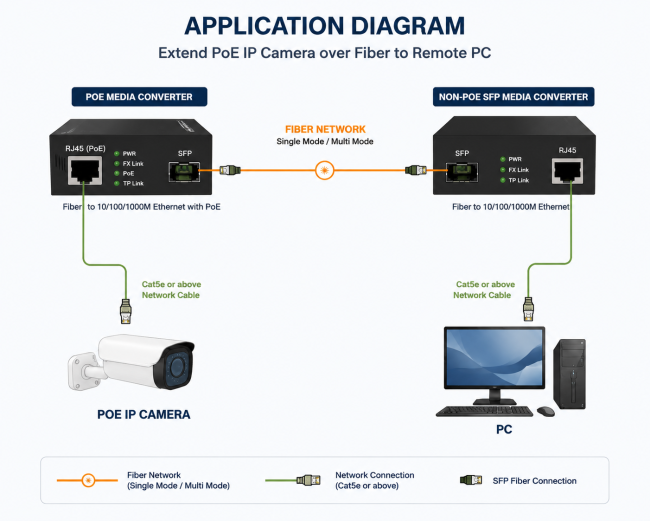

Application of Fiber Ethernet Optic Converter
- WiFi access points, VoIP phones and IP security cameras
- School, cyber bars
- FTTX Projetcs
- Offices, telecommunication networks
Do you have any certification?
Yes, our company is ISO9001 certified.
We have CE/FCC/RoHS/E-mark/CCC certificates for our models.
What does the label look like?
There will be 2 copies for each piece of manufactured product. One is attached on the device, the other is on the packing box.
It is available in different languages and contents, so you can add your logo or model name in it.
Do you support OEM&ODM?
Yes, this is our competitive advantage.
There is a detailed introduction in the below link.
https://www.industrialnetworkswitch.com/factory.html
What incoterms do you support?
We are an EXW factory, EXW term is our focus.
Sometimes we do FOB/CIF for bulk orders, this depends on cases. Please talk with us for more information.
Product Images of Gigabit Ethernet Fiber Converter
