China Mini 5-Port Gigabit Industrial Fiber SFP Switch Unmanaged DIN Rail DC12V for sale

Mini 5-Port Gigabit Industrial Fiber SFP Switch Unmanaged DIN Rail DC12V

Price Negotiable

Price: Negotiable

MOQ: 1Pcs

Delivery Time: 4~8 working days

Brand: Olycom

Product Description

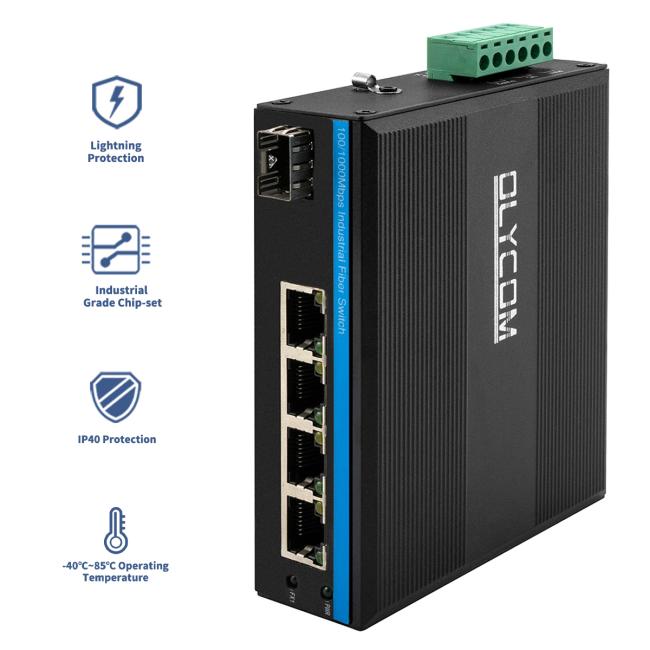

100/1000Mbps SFP fiber unmanaged industrial switch 5 Port

Introduction to Olycom Fiber Switch

This 5-port industrial unmanaged Ethernet switch enjoys the below features

1 x 100M/1000Mbps Auto-sensing SFP fiber(SM/MM modules)
4 x 10/100/1000Mbps Auto-sensing RJ45 ports
6KV Ethernet surge protection
Support Auto MDI/MDIX
IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
Operating temperature -40 ℃ to + 75 ℃(tested)
IP40 safety class
Dual DC input 12V~52V
CE FCC EMC compliant
Support din-rail mounting or wall mounting

Specification of Gigabit Network Switch

Port	1 x 100/1000Mpbs SFP port SM:1310nm/1550nm,20Km; 1490nm/1550nm,40~120Km MM:1310nm, 2Km; 850nm, 500-meter 4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Switching features	Transmission mode: storage and forward System bandwidth:10Gbps (non-traffic jam)
Network media	10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
LEDs	Power, network, fiber

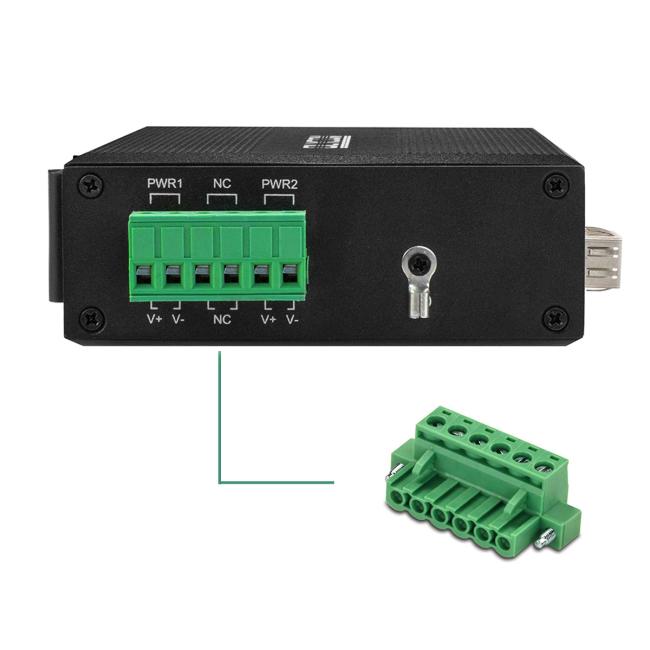

Power supply	Input voltage: DC 12-52V No-load power:5W Reverse connection: support

Industry Standards

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8

Traffic Control: NEMA-TS2

Vibration: IEC 60068-2-6

Freefall:IEC 60068-2-32

Shock: IEC 60068-2-27

Rail Traffic: EN 50121-4

Safety

CE Mark , commercial

CE/LVD EN60950

Mechanical information

Shell: Corrugated metal shell

Safety class: IP40

Dimension: 113.8 x 93 x 34.9mm

Mounting method: Din-rail mounting

Warranty

Replacement within 1 year; 3 years repairing

Company Profile

We manufacture and market fiber optic connectivity devices.

We provide solutions and services of industrial fiber switch, fiber to copper media conversion, Ethernet networking, and CCTV video surveillance.

We are a 20-year-old manufacturer with production lines and basically provide

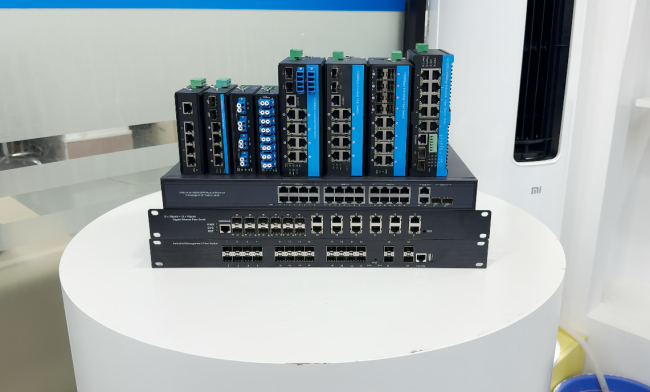

2 4 6 8 10 12 16 port din-rail gigabit industrial L2 L3 managed switch

Normal POE fiber optic Ethernet media converter

14 slots 16 slots media converter chassis rack

AHD TVI CVI Analog video to fiber converter

Customized data video Ethernet phone audio contact closure over fiber optic extender converter SFP copper fiber transceiver

Serial to fiber optic converter

OEM/ODM

We are fully connected with our customers, even if just for a single purchase. It starts from the promise of professional products and services, but our work goes far beyond. It is not only fiber optic connection, but also human connection.

OEM and ODM service are optional. OLYCOM can provide product with customer LOGO and will do our best to meet clients requirements.

The Customer information will be highly confidential, and relevant cooperation information will not be leaked to a third party without the customer’s permission.

Application of Fiber Optic Switch
