Industrial PoE Managed Switch 8 Port ST Fiber Gigabit Network Unmanaged CE FCC IP40 Rated
Olycom 8-Port Gigabit PoE Managed Fiber Switch
Basic Features of Gigabit Network Switch
- Support power on PoE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
- IEEE 802.3af/at power on to 1 ~ 8 RJ45 ports
- 8 x 10/100/1000Mbps Auto-sensing RJ45 ports
- 1 x 1000M ST Fiber, singlemode or multimode
- 6KV Ethernet surge protection, adapt to a harsh outdoor environment
- Meet IP40 protection degree and EMC industrial grade requirements
- DIN rail or Wall installations
- Power range up to 100 meters
- Comply with FCC and CE standards
- Operating environment temperature: -40°C～75°C
Software Features of L2 Managed Switch
- Support cable diagnosis and can locate the fault point
- Support IEEE802.3az EEE(Energy Efficient Ethernet) Management, optimize power consumption

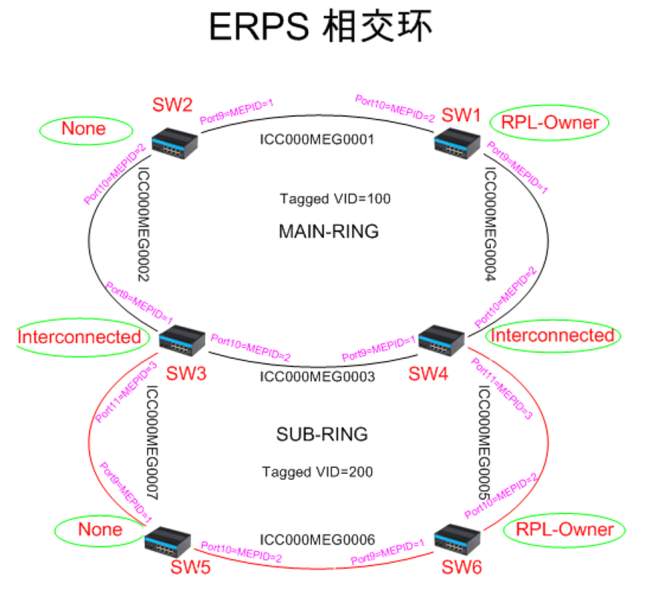

- Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
- Support QoS, transport classification QoS, CoS, bandwidth control(input/output direction), storm suppression, differentiated services
- Support IEEE802.1q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN, Protocol VLAN, VLAN convert, MVR
- Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
- Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
- Support IGMP agent report, MLD snooping
- Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2

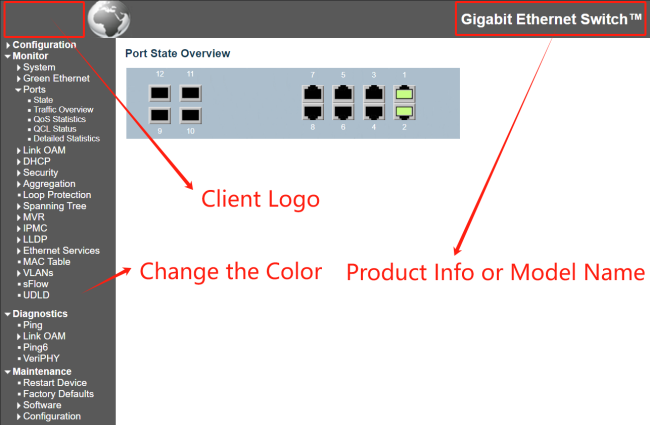

- Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
- Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
- Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
- Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
- Support IPV6 Telnet server/ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP, TFTP, QoS, ACL
Specification of 8 Port PoE Switch
| Product Name | Olycom Gigabit Managed Industrial PoE Fiber Switch(1F+8TP) |
| Model No. | IM-FP188GW |
| Port |
1*100Mpbs ST Fiber SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km MM: 1310nm, 2Km; 850nm, 500-meter 8*10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Protocol |
IEEE 802.3 IEEE802.3U IEEE802.3ab IEEE802.3z IEEE802.1d STP IEEE802.1w RSTP IEEE802.1s MSTP ITU-T G.8023 EPR/Y.1344 IEEE802.1Q IEEE802.1X IEEE802.3ad IEEE802.3x IEEE802.1ad IEEE802.1p IEEE802.1ab IEEE802.3az IEEE802.3af IEEE802.3at |
| Switching Features |
Transmission mode: storage and forward Forwarding delay: <10us System bandwidth: 21Gbps(non-traffic jam) DRAM size: 128M Flash size: 16M VLAND ID: 4096 MAC Address Table Size: 8K Jumbo Frame: 9.6KB |
| Network Media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) |
| LEDs |
Power, network, fiber PWR: Power
Orange: Link/ACT Green: 1000M Network Speed(off when it is 100Mb/s)
Fiber: FX1 |
| Power Supply |
Input voltage: 48V(max 52V) PoE output voltage: 48V Single PoE output power: 30W(port 1~8) Max budget: 240W Reverse connection: support |
| PoE Wiring | PoE af/at: 1/2(V+), 3/6(V-) |
| Environment |
Working temperature: -40°C～75°C Storage temperature: -40°C～85°C Working humidity: 10%～90%, non-condensing Storage humidity: 10%～95%, non-condensing |
| Industry Standards |
ESD: IEC61000-4-2, ±15KV air, ±6KV contact EFT: IEC61000-4-4, General ±6KV Surge: IEC61000-4-5, Differential ±2KV, Common±6KV |
| Certification |
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020 EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021 EN 61000-3-3: 2013/A2: 2021/AC:2022 CE-LVD: EN IEC 62368-1: 2020+A11:2020 FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014 |
| Mechanical information |

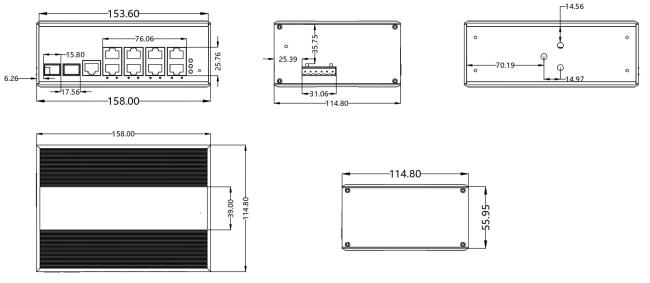

Shell: Corrugated metal shell, IP40 grade level Dimension: 158*115*60mm Mounting method: Din-rail/Wall mounting Weight: 0.75Kg/0.9Kg(Net/Gross) |
| Warranty | 3 years, lifetime technical support |
Package

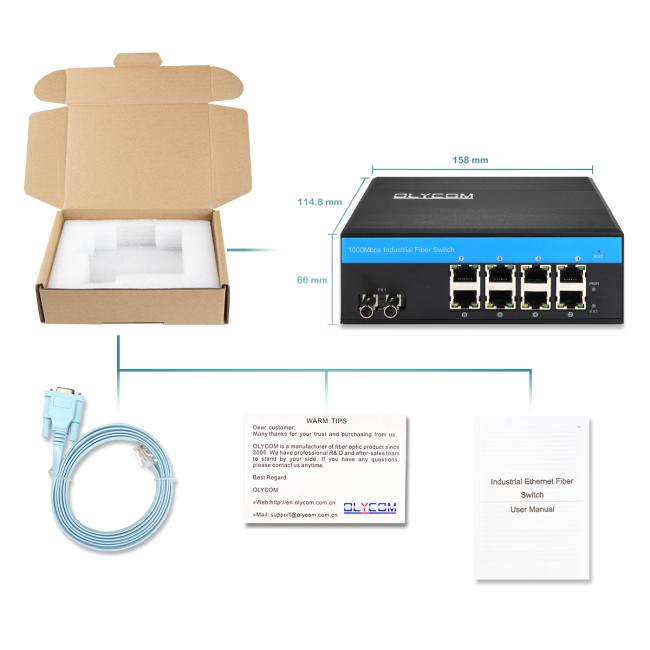

1. One product, one console cable, one user manual, and one warranty card are inside one box.
2. Twenty boxes are in one carton.
| Industrial Fiber Module | |
| OSPL1G05D | 1000BASE-SX |
| OSPL1G06D | 1000BASE-SX(1310nm) |
| OSPL1G20D | 1000BASE-LX |
| OSPL1G40D | 1000BASE-EX |
| OSBL1G20D-35 | 1000BASE-BX-U(TX 1310 RX1550) |
| OSBL1G20D-53 | 1000BASE-BX-D(TX 1550 RX1310) |
| Industrial DIN Power Supply | |
| IM-DAC220/DC48V2.5A | AC220V to DC48V2.5A, -40℃～70℃ |
| IM-DAC220/DC48V5A | AC220V to DC48V5A, -40℃～70℃ |
| IM-DAC220/DC48V10A | AC220V to DC48V10A, -40℃～70℃ |
FAQ of Industrial Vlan Switch
Q: How long can I get product samples?
A: Usually within 3 days, but it all depends on your requirement.
Q: How about after-sales service?
A: We are 7*24 hours online and respond to users' field device problems in time.
Q: Are you a manufacturer or a trade company?
A: We are a professional manufacturer, our main products include managed switches, POE switches, industrial fiber switches, fiber media converters, video converters and SFP modules.
Q: Does this managed switch include the power supply?
A: No, no power adapter is included.
Q: What power supply does this POE L2 Industrial Switch need?
A: The input voltage is 12-52VDC. If the input voltage is not 48VDC-52VDC, it is a non-POE managed switch, it can also work. The power supply can be 12VDC 3A. If the input voltage is 48VDC-52VDC, it is a POE managed industrial switch.
Q: What are the POE standards?
A: This is an industrial POE+ switch. Each network port can reach 30W when the power supply is 48VDC 5A.
Q: Is it a managed switch?
A: Yes, this is an L2 managed POE switch for industrial networks.
