Gigabit Ethernet 5 Port Industrial Grade Switch With SFP Fiber Port
Gigabit Ethernet Switch 5 Port With SFP Fiber Port Industrial Grade Ethernet Switch
Introduction

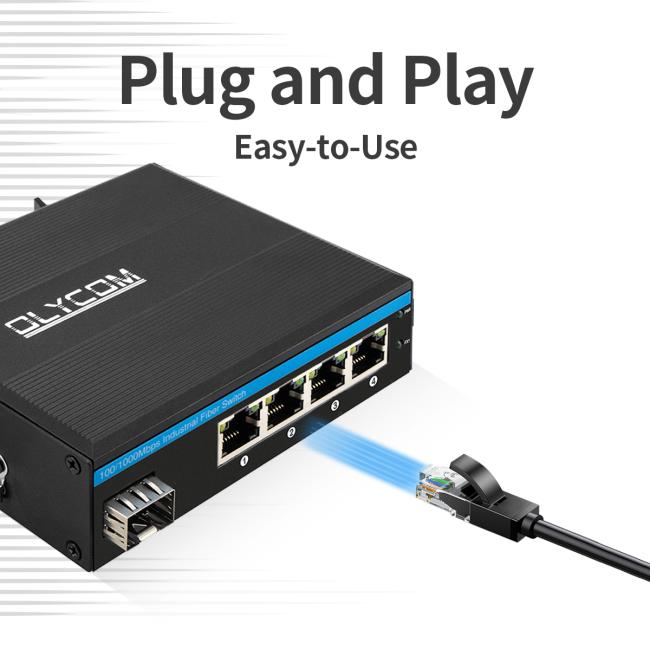

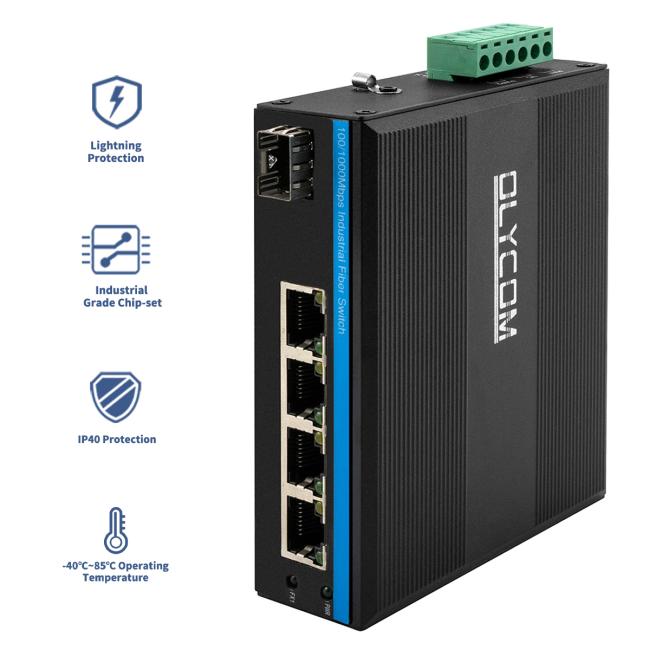

The 5 port SFP industrial fiber switch is widely used in security systems for outdoor. It can work in a harsh environment whose working temperature is -40℃ to + 75℃. The mini switch supports Din-rail and desktop mounted.
- 4 x 10/100/1000Mbps Auto-sensing RJ45 ports
- 1 x 1000M SFP fiber port (Supports different types of 1.25G SFPs)
- 6 kV Ethernet surge protection
- Support Auto MDI/MDIX
- IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
-
Operating temperature -40 ℃ to + 75 ℃(tested)
-
IP40safety class
-
Dual DC input 12V~52V
-
CE FCC EMC compliant
-
Support din-rail mounting or wall mounting
-
OEM and ODM services are optional
Specification
| Port |
1 x 1000Mpbs SFP port SM:1310nm/1550nm,20Km 1490nm/1550nm,40~120Km MM:1310nm,2Km 4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features |
Transmission mode: storage and forward System bandwidth:10Gbps (non-traffic jam) |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 unshielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network, fiber |
| Power supply |
Input voltage:DC 12-52V No-load power:5W Reverse connection: support |
| Industry Standards |
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control: NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic: EN 50121-4 |
| Safety |
CE Mark,commercial CE/LVD EN60950 |
| Mechanical information |
Shell: Corrugated metal shell Safety class:IP40 Dimension: 113.8 x 93 x 34.9mm Mounting method: Din-rail mounting |
| Warranty | Replacement within 1 year; 3 years repairing |

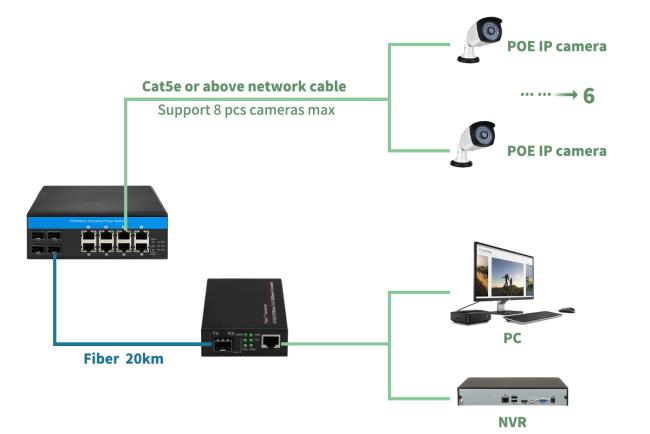

Application
Packing Box
