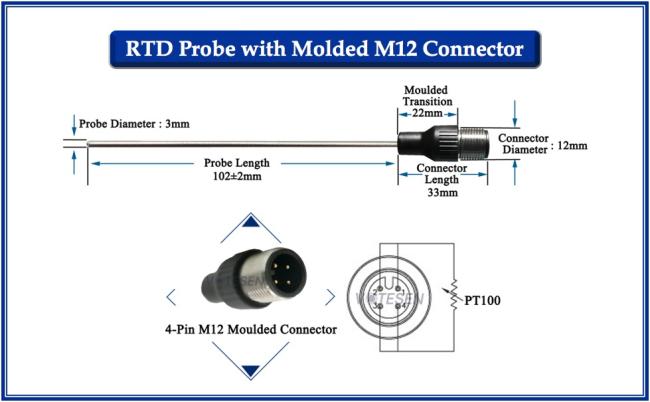

M12 Molded Stainless Steel PT100 Temperature Sensor 4 Wire 102mm Long

RTD PT100 PT1000 Stainless Steel Probe with M12 Molded Connector

VTS300 RTD PT100 PT1000 Probe Temperature Sensor with M12 Molded Connector contains a platinum RTD element from IST or Heraues. That makes it compatible with most of the RTD measuring products on the market today. The PT100 RTD Element is encased in the SS304 Stainless Steel Probe protective housing. It makes the RTD Temperature Sensor tends to have Higher Accuracy and Stability than other temperature sensors such as thermocouples or infrared, although typically has a slower response time to temperature changes.

With an M12 connector that is pre-wired with a 4-wire connection, it can be used in any 2-wire, 3-wire, or 4-wire measurement system. A PT100 RTD with a 3 Lead Wire Construction is one of the most utilized designs due to the ability to provide an excellent balance of accuracy, stability, ease of use, and durability. Simply use the number of wires needed for your application.

★ High accuracy

★ Fast response and stable

★ Probe size can be customized such as 100mm, 250mm, 500mm length

★ IP67 Molded 4 pin M12 connector

★ Handheld meters and instruments

★ Controllers and panel meters

★ Data loggers, data aquisition and recorders

★ Food and industrial process measurements

★ HVAC

★ Lab Test

★ Engine
★ Computer

To customize the most suitable RTD temperature sensor for your application, kindly let us know your requirements:

1. RTD Type: PT100 or PT1000

2. Temperature Range:

3. Accuracy:

4. Probe Type:

5. Probe Size:

6. Wiring Configuration:

7. Connector:

8. Order Quantity:
