2.5'' 63MM Capsule Low Pressure Gauge
Price:
Negotiable
MOQ:
1000 pcs
Delivery Time:
20-40 work days
Product Description

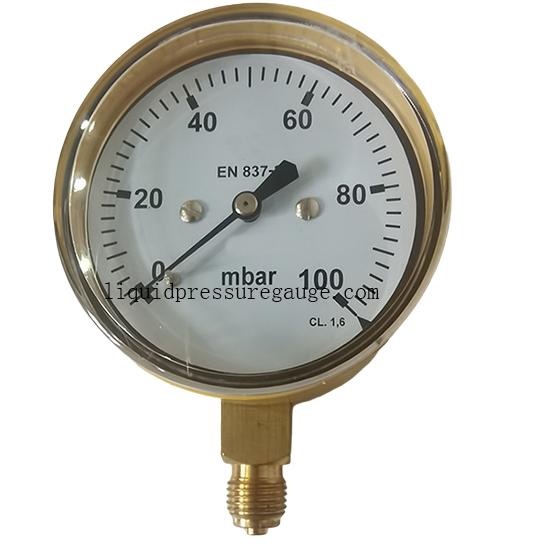

2-1/2 Capsule low Pressure Gauge,0-100 mbar ,1/4 NPT lower mount, safety glass, yellow steel case and brass internal
Working principle
The corrugated capsule produces deformation by the medium pressure, and transmitted and magnified through the gear driven mechanism, the figure fixed on the gear shaft point out the pressure value on dial.
Features:
- Range: 0-100 mbar
- 1/4 BSP lower mount
- Yellow painted Steel case
- PC window
- Brass internal
- Dial: 2-1/2"
- Opitional: lead free brass internal
|
Product name |
Capsule pressure gauge |
| Application | It is used for measuring micro pressure of air, gas or liquid which does not corrode copper alloy. |
| Face dia | 2-1/2", 3" |
| Case | yellow painted steel or chromed steel |
| Connetion & socket | brass |
| Capsule | copper alloy |
| Movement | brass |
| Pointer and dial | aluminum |
| Window | acrylic |
| Range | Vacuum, compound, 0-600 mbar |
| Mount | bottom connection ( lower mount) |
| Setting | zero adustment setting |
| Accuracy | ±1.6% |
