Air 14 Bar 2 Inch 50MM General Pressure Gauges Steel Ring 1/4'' BSPT
Price:
Negotiable
MOQ:
1000 pcs
Delivery Time:
30-50 work days
Product Description

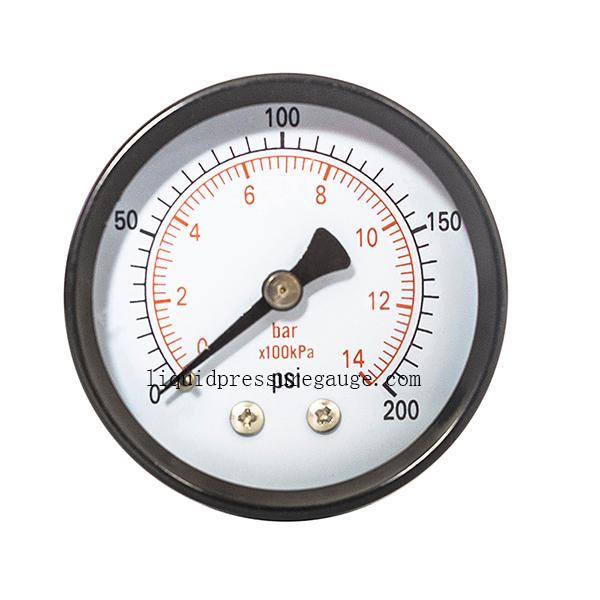

2 inch General Pressure Gauge, 0-200 psi/bar, 1/4 NPT central back Mount, black painted Steel case and Brass Connection
The gauge is used for measuring pressue of air, gas or liquid which doesn't corrode copper alloy. The gauges with double scales ( psi/bar) makes easily to read. The measuring range is 0-200 psi.
Features:
- Range: 0-200 psi
- 1/4 BSPT back mount
- Steel case
- Steel ring
- Brass internal
- Dial: 2"
- Opitional: 1/4 NPT, 1/4 BSP
| Product name | General pressure gauge |
| Aplication | It can be used for measuring pressure of air, gas or liquid which doesn't corrode copper alloy. |
| Face dia | 1-1/2", 2", 2-1/2" |
| Case | black painted steel |
| Ring | black painted steel |
| Connetion & socket | brass |
| Bourdon tube | copper alloy |
| Pointer and dial | aluminum |
| Window | glass |
| Range | Vacuum, compound, 0-6000 psi |
| Mount | back connection |
